JBR Plastic Insert molding

Audi Company Insert molding with multi metals parts. The lead time for the mold is 40 working days.

Design and development

Case of insert molding

Customer : Audi
Part size: 127.97X229.85X151.72MM

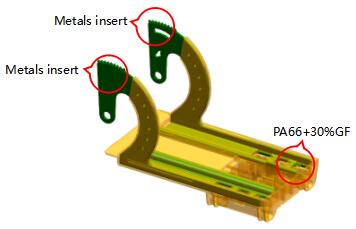

Part material: PA66+30%GF/metals insert
Cavity Number: 1x1
Cycle time: 45S
Design time: 6 work days
Manufacture time: 40 work days
Manufacture date: 2014.01

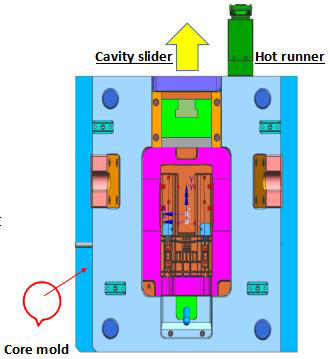

Molding structural description steps:
1. Putting the metals part in the core by machine robot;
2. Fixing metals part by outside slider and lifter;
3. Closed the mold before to ensure metals assembly stability by inductive switch;
4. And also take off the part in the mold by machine robot.
