Injection molding is a cornerstone of modern manufacturing, enabling the mass production of precise, high-quality plastic components. Yet, even the most advanced processes are vulnerable to defects that compromise productate costs. For manufacturers, resolving issues like flash, shrinkage, weld lines, warpage, and short shots isn't just about troubleshooting—it's about transforming production efficiency and elevating end-product performance. This article delves into the root causes of these five prevalent defects, moving beyond surface-level adjustments to uncover fundamental solutions rooted in mold design optimization. By integrating insights on process parameters and mold engineering, we provide actionable strategies to achieve defect-free production. Let's explore how a holistic approach can turn persistent problems into opportunities for innovation.

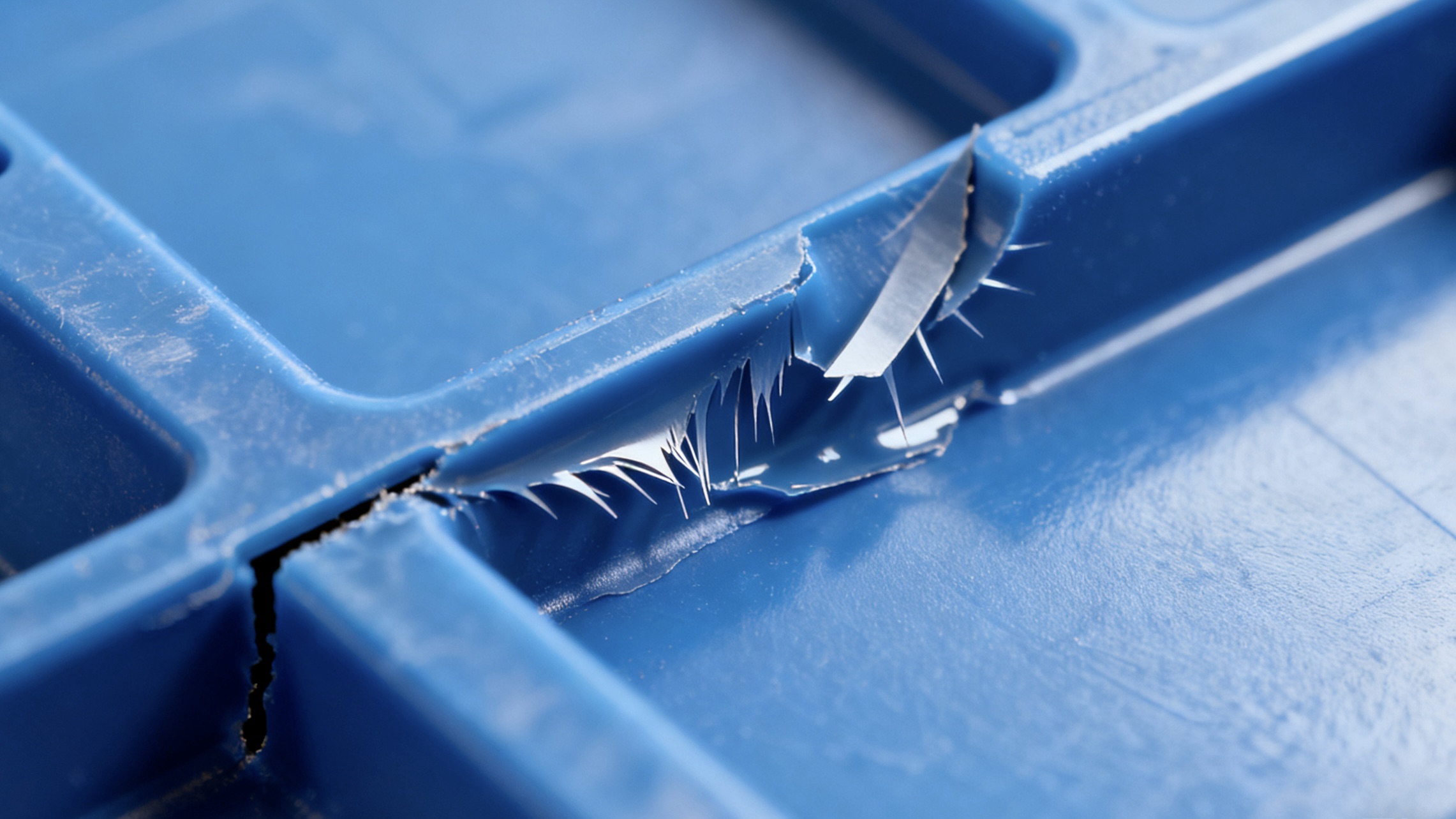

Flash, the unwanted excess material along parting lines, often stems from a combination of process and mold design flaws. From a process perspective, excessive injection pressure or high melt temperature can force molten plastic into microscopic gaps. However, the core issue frequently lies in mold design: inadequate venting prevents trapped air from escaping, while misaligned parting surfaces or worn tooling create pathways for leakage.
To address flash fundamentally, optimize mold venting by incorporating dedicated vents at critical points, such as deep ribs or corners, to ensure efficient air evacuation. Simultaneously, refine parting line precision through CNC machining or surface treatments to minimize gaps. Process-wise, reduce injection pressure incrementally and monitor melt temperature to stay within material-specific ranges. This dual approach not only eliminates flash but also extends mold life by reducing wear.

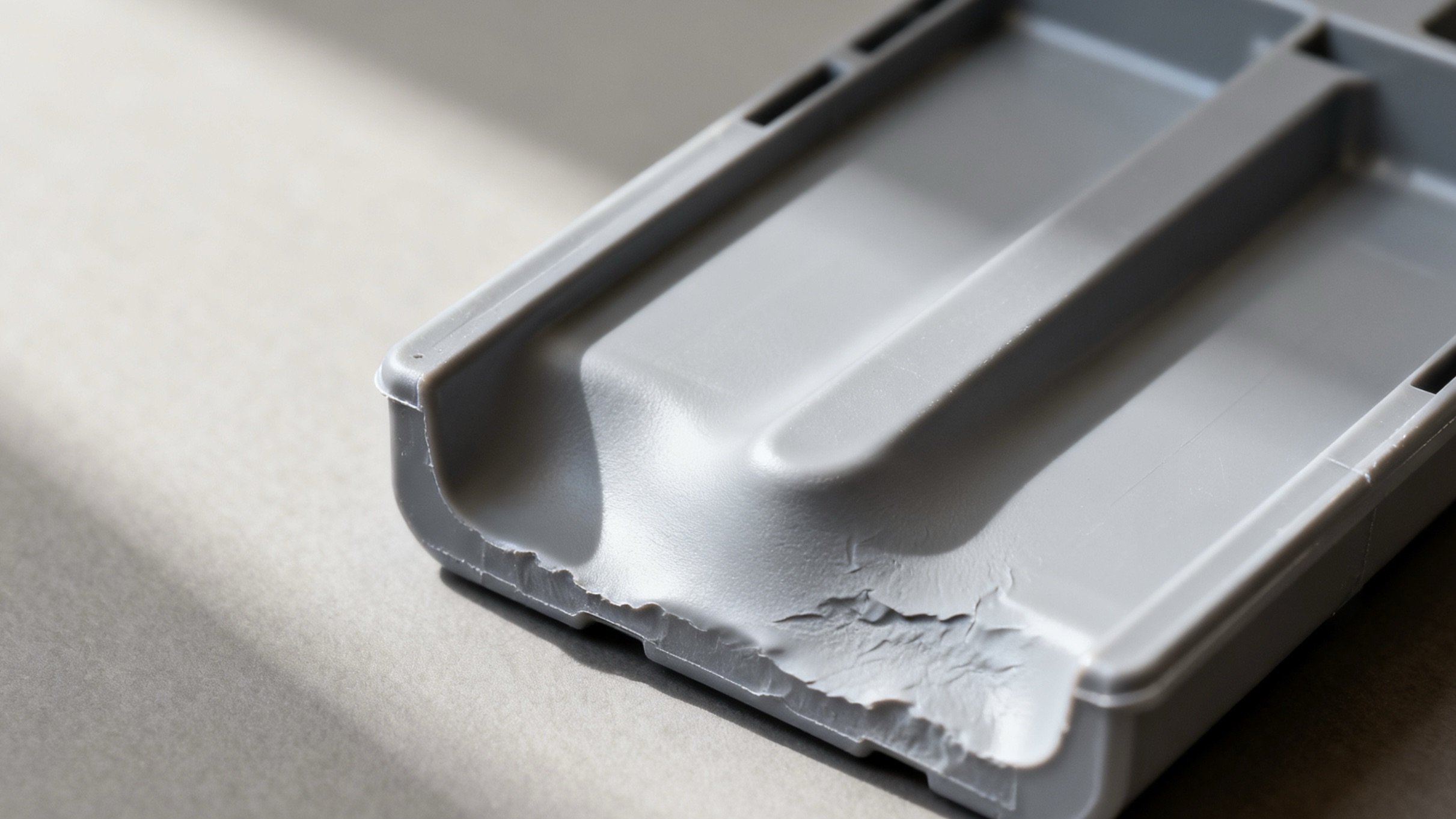

Shrinkage, characterized by dimensional inconsistencies as plastic cools, primarily arises from uneven solidification. Process parameters like insufficient holding pressure or rapid cooling rates exacerbate the problem, but the root often traces to mold design inefficiencies. Non-uniform cooling channels lead to differential shrinkage, while thick sections without proper gating intensify internal stresses.
A comprehensive solution involves redesigning cooling systems to ensure balanced heat transfer—implement conformal cooling channels that follow part contours for uniform temperature distribution. Additionally, optimize gate locations to facilitate even material flow and reduce thick-to-thin transitions. Complement this with process adjustments: increase holding pressure to compensate for volumetric changes and fine-tune cooling times. This strategy minimizes shrinkage, enhancing dimensional accuracy and reducing post-molding corrections.

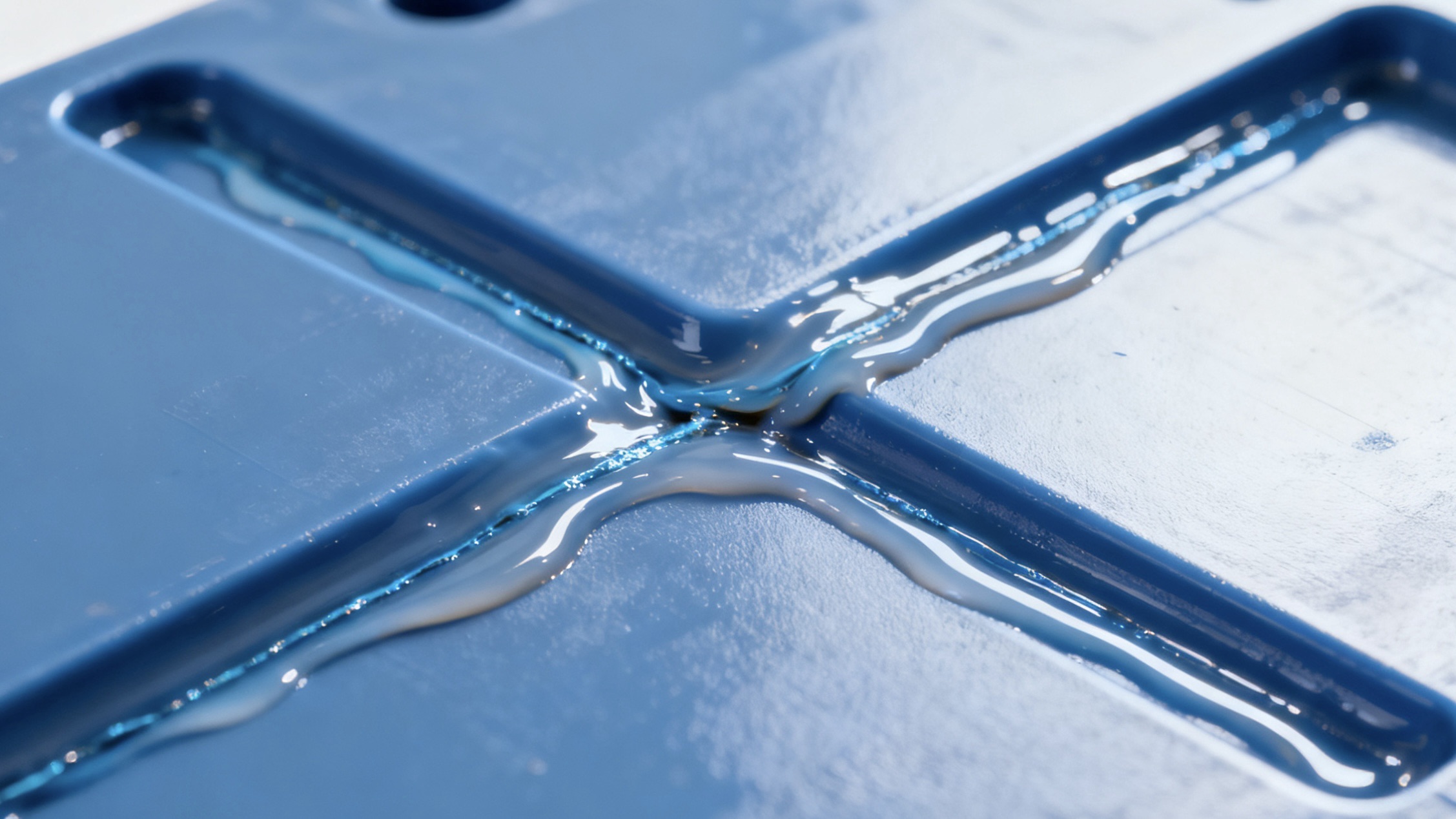

Weld lines, visible seams where molten flows converge, occur due to premature cooling or flow interference. Process factors like low melt temperature or slow injection speed contribute, but mold design is pivotal: poor gate positioning causes flow fronts to meet at unfavorable angles, while inadequate venting traps air at weld points.
Eradicating weld lines demands mold redesign. Position gates to direct flows toward less critical areas and add flow leaders to guide merging streams smoothly. Enhance venting near weld-prone zones to prevent air entrapment. On the process side, elevate melt temperature to improve fusion and boost injection speed to reduce cooling time. This integrated approach strengthens weld integrity, eliminating weak points and improving aesthetic quality.

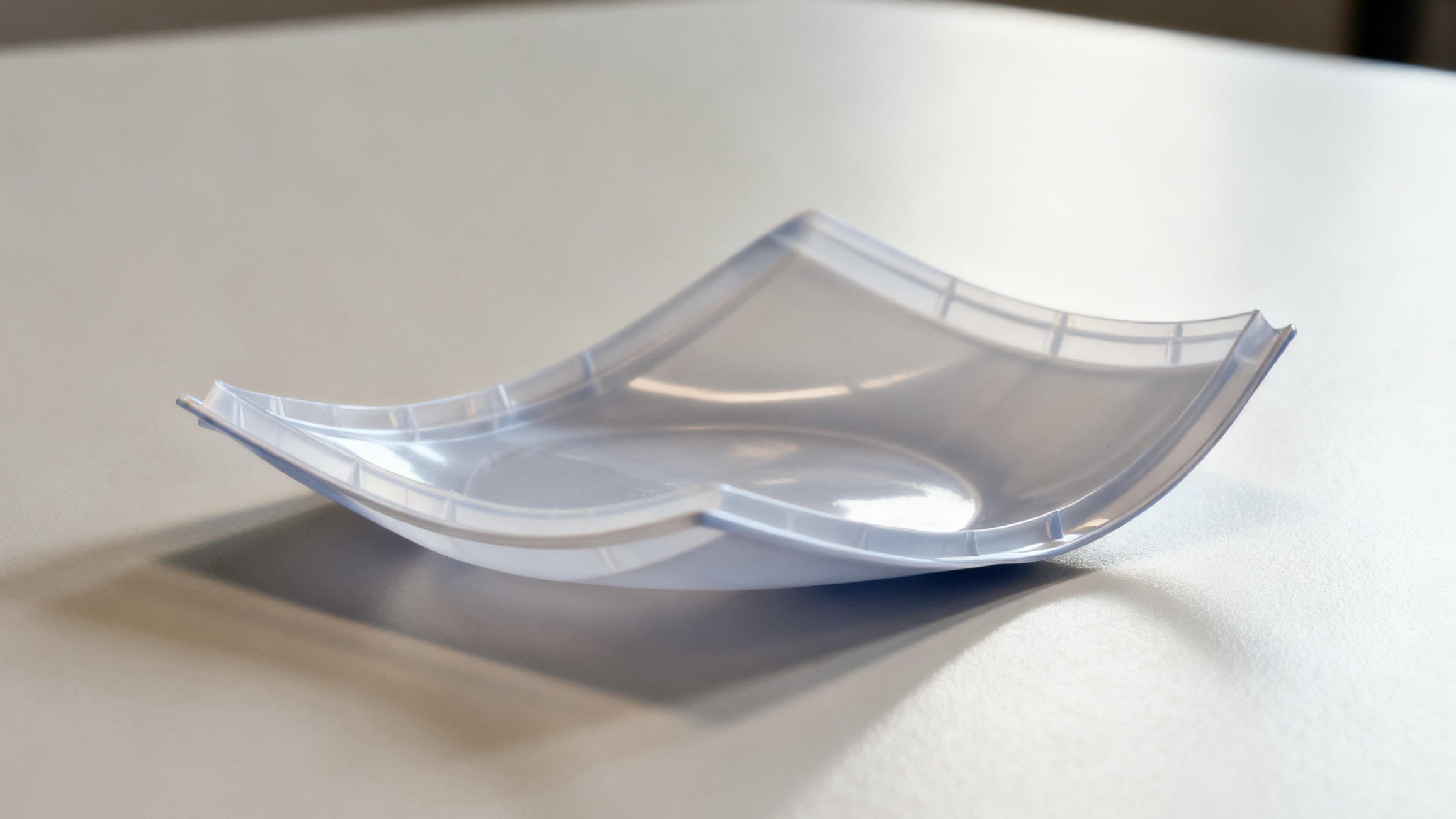

Warpage, the distortion of parts after ejection, results from residual stresses and uneven cooling. Process variables such as high packing pressure or inconsistent cycle times play a role, but the crux is mold-related: asymmetric cooling layouts and varying wall thicknesses induce thermal gradients.
To combat warpage, focus on mold symmetry—redesign cooling channels for uniform flow and incorporate balanced wall thicknesses using finite element analysis (FEA). Employ sequential valve gating to control filling patterns and reduce internal stresses. Process adjustments include optimizing cooling rates and using lower-shrinkage materials. This holistic fix ensures flat, stable parts, cutting down on rework and assembly issues.

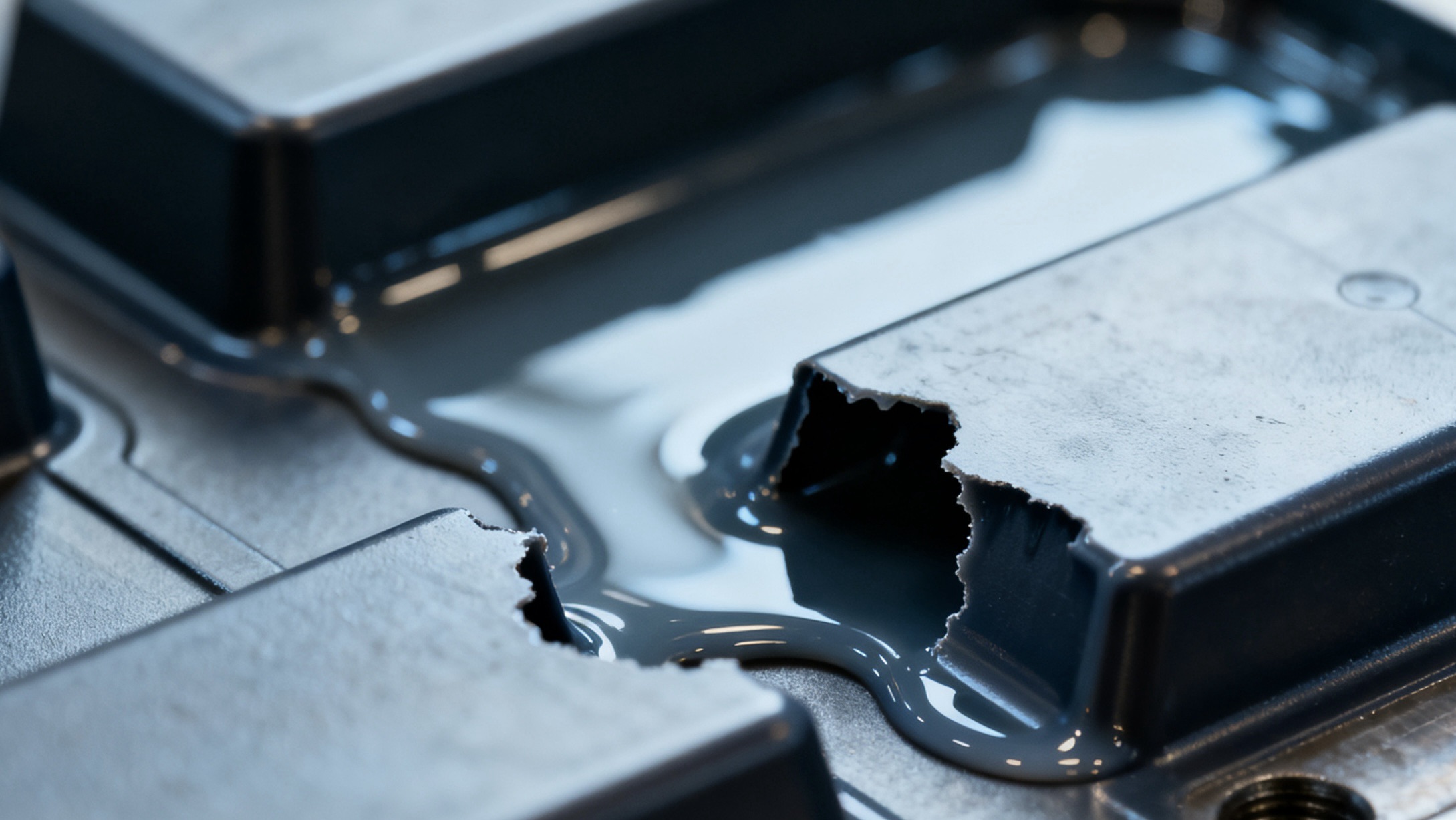

Short shots, where cavities aren't fully filled, often link to insufficient material flow. Process causes like low injection pressure or viscosity issues are common, but mold design flaws are key: undersized gates restrict flow, while poor venting creates backpressure that halts filling.
A fundamental remedy involves enlarging gates and runners to facilitate unimpeded flow, and adding vents at dead zones to release trapped gases. Process enhancements include increasing injection speed and pressure gradually. This not only prevents short shots but also boosts production throughput by minimizing cycle interruptions.
Addressing injection molding defects requires more than tweaking parameters—it demands a deep dive into mold design optimization. By tackling root causes through innovations like enhanced venting, balanced cooling, and strategic gating, manufacturers can eliminate flash, shrinkage, weld lines, warpage, and short shots. This not only slashes defect rates by up to 30% but also enhances product reliability and sustainability. Ready to transform your production line? Partner with experts to implement these solutions and unlock peak efficiency. Embrace a defect-free future today.
