Choosing the Wrong Mold Surface Finish Can Tank Your Product's Perceived Value — Here's How to Master VDI 3400 and YS Texture Standards (A Mistake 90% of Buyers Make)

1. Introduction: The Overlooked "Surface Game" That Defines Your Product's First Impression

Anyone in injection molding knows that the mold sets the foundation, but the mold's polishing and texturing (etching) directly determine the final product's look and feel.

An automotive interior trim, a medical device housing, a consumer electronics panel — each demands a radically different surface roughness. Pick the wrong grade and you're looking at ejection difficulties, part scratching, or even a full batch rejection and customer claims.

Yet the reality is that many buyers and engineers struggle with standards like VDI 3400 and YS (Yixin) when communicating with mold makers, falling back on vague requests like "make it shinier" or "we want a matte finish." This ambiguity is a silent killer of project timelines and budgets.

In this article, we break down the two most widely used mold surface finish standards with complete reference tables. Save this one — you'll come back to it.

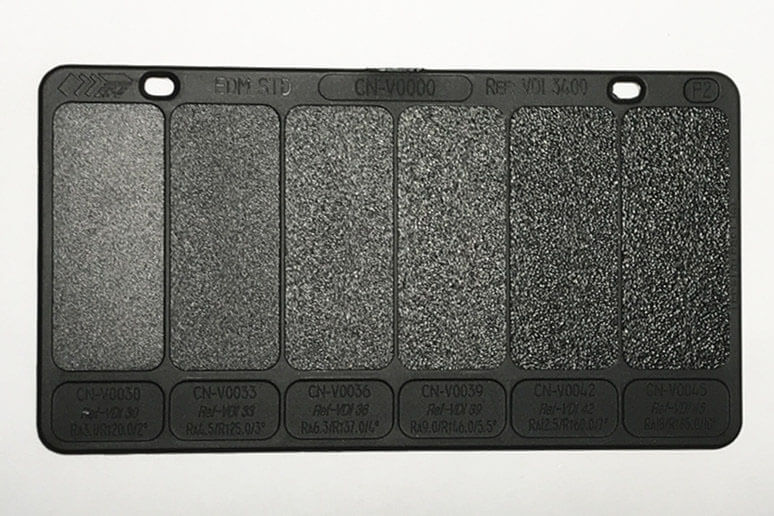

2. VDI 3400: The Universal "Lingua Franca" of Mold Surface Finishes

VDI 3400, established by the Association of German Engineers (Verein Deutscher Ingenieure), is the most widely referenced mold surface texture standard in the global injection molding industry. It uses a numbering system from 0 to 45, where each number corresponds to a specific surface roughness (Ra value) — the higher the number, the coarser the texture.

VDI 3400 Grade vs. Ra Reference Table

表格

Key takeaways:

• VDI 0–12 falls in the high-gloss / fine-texture range, demanding premium mold steels and polishing expertise — and carrying the highest cost;
• VDI 15–24 is the most commonly used matte range, balancing aesthetics with mold release — heavily used in automotive interiors;
• VDI 27 and above prioritizes functionality, with anti-slip and wear resistance as the primary goals.

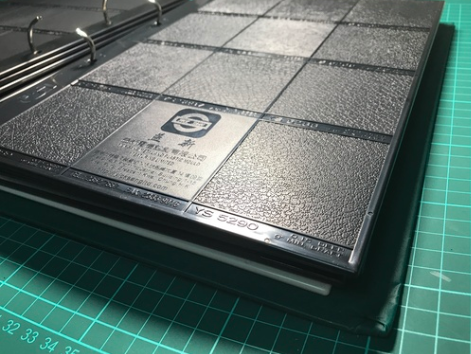

3. YS (Yixin) Standard: The Precision Tool for Asian Mold Makers

If VDI 3400 is the industry's universal language, the YS (Yixin) standard is a more refined system tailored to Asian manufacturing practices. Its numbering is finer, and it explicitly specifies the minimum draft angle required for each grade — a detail of enormous practical value for production.

The YS standard comprises two main series:

• YS 1280 Series: Ra from 0.010 to 0.050 μm, covering ultra-fine grain / high-gloss range;
• YS 11000 Series: Ra from 0.005 to 0.038 μm, covering a broader range from mirror finish to medium-fine grain.

YS 1280 Series Reference Table

表格

YS 11000 Series Reference Table (Selected)

表格

Why does the draft angle matter so much? The finer and smoother the surface, the tighter the plastic part adheres to the mold cavity, and the greater the friction during ejection. Without sufficient draft, parts get scratched, stress-whitened, or even stuck in the mold. By specifying the minimum draft angle for each grade, the YS standard gives engineers a built-in "safety checklist."

4. VDI vs. YS: Which One Should You Use?

表格

Practical recommendations:

• If your client is a European or American brand and the drawing specifies VDI numbers → execute directly to VDI 3400;
• If the project demands extreme surface finesse (premium beauty products, optical components) → prioritize the YS standard for finer control;
• The two standards can be cross-referenced via Ra values, but always confirm in writing with your mold maker before tooling starts to avoid misinterpretation.

5. Finer Isn't Always Better: 4 Real-World Factors to Consider

A common misconception is that "the glossier, the more premium." When selecting a surface finish grade, these four factors are non-negotiable:

Factor 1: Function Over Appearance

Anti-slip handles need coarse texture (VDI 27+); optical lenses demand a mirror finish (VDI 0 or YS11000); medical device housings require a medium-gloss surface that's easy to clean. Function sets the floor.

Factor 2: Material Characteristics

ABS, PC, and PMMA deliver excellent high-gloss results, while glass-filled materials (e.g., PA+GF) are inherently difficult to polish to a mirror finish — chasing that level will only burn budget.

Factor 3: Draft Angle and Part Geometry

As emphasized earlier: the finer the surface, the larger the required draft angle. If part geometry constrains the draft, you must step down to a coarser texture.

Factor 4: Cost and Mass-Production Stability

Mirror-finish molds demand premium steels (S136, NAK80), expert polishing, and cleanroom conditions — tooling costs can double. And once scratches appear in production, repair is difficult. For high-volume parts, a more forgiving medium-matte grade is often the smarter choice.

6. JBRplas: 30 Years of Mold Surface Finish Expertise, Perfecting the "Surface Game"

When it comes to mold surface finishing, JBRplas (Shenzhen Jinbaorong Precision Industry) stands out. Founded in 1995, this one-stop injection molding manufacturer has accumulated over 30 years of hands-on experience in mold polishing and texturing.

What makes JBRplas consistently deliver on surface finish?

Full in-house process control — quality never outsourced JBRplas operates a 10,000㎡+ self-owned facility with 100+ manufacturing machines. From mold design, CNC machining, EDM, polishing and texturing, all the way to injection mass production — everything is done in-house. This means every step of the surface finishing process stays within their own quality control system, with no standard drift from outsourcing.

High-gloss molds are a core competency In JBRplas's portfolio, high-gloss automotive headlight molds are a signature case. These molds require a near-mirror polish on the cavity, combined with specialized injection processes (such as rapid heat/cool molding) to achieve a transparent, weld-line-free headlight lens. Without deep polishing expertise, this kind of work simply isn't possible.

Dual ISO certification — medical-grade standards JBRplas holds both ISO 9001 and ISO 13485 (Medical Device Quality Management System) certifications. Medical-grade plastic parts impose stringent requirements on surface roughness, burr-free edges, and cleanability — and JBRplas has honed its surface finishing capabilities under these exacting standards.

Fluent in Western standards and Western client needs JBRplas's core team brings extensive experience on European and American projects, is well-versed in international standards like VDI 3400, and communicates efficiently with overseas clients in the same technical language. Their products export to markets across the UK, Australia, Brazil, Sweden, and beyond.

One-stop service — from mold to assembly Beyond mold making, JBRplas runs 30 injection machines ranging from 50 to 470 tons, plus secondary operations including painting, silk-screening, welding, and assembly. Clients work with a single team from drawing to finished product — and surface finish consistency is naturally better guaranteed.

7. Closing: Surface Finish Is the "Devil in the Details" — and Your Competitive Edge

A mold surface finish grade may look like a single technical parameter, but it runs through the entire chain: product design, material selection, mold manufacturing, and mass production delivery. A seemingly insignificant Ra value can determine your product's perceived quality, yield rate, and ultimate cost.

If you're struggling to define the right surface finish standard for a new project, or if communication with your mold maker feels like "speaking different languages," share the reference tables in this article and align on a common standard.

Leave it to the professionals. With 30 years of focus on injection molding and surface finishing — from VDI to YS, from mirror gloss to functional coarse texture — JBRplas delivers stable, production-ready solutions every time.
