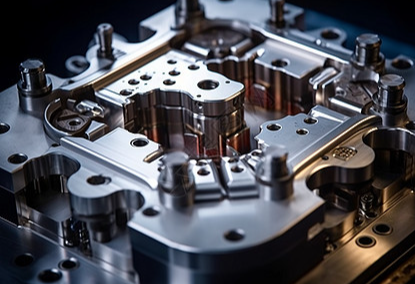

Accurate parts begin with uncompromising mold engineering. Our approach integrates:
- Predictive DFM Analysis: Utilizing AI-driven Design for Manufacturing simulations to forecast deformation risks during product conceptualization, eliminating costly revisions.
- Advanced Moldflow Dynamics: Multi-physics simulations optimize gate positioning and polymer flow, preventing air traps and uneven filling that compromise flatness.
- Strategic Material Selection: Machining cores/cavities from hardened steels (S136/1.2344) with thermal stability coefficients below 0.0005%/°C to resist thermal distortion.
- Micron-Level Toolmaking: Combining 5-axis CNC machining (±5μm accuracy) with pulsed electrochemical EDM for critical contours, ensuring mold geometry fidelity beyond ISO 20457 standards.
This foundation enables consistent replication of ±0.02mm tolerances across 500,000+ cycles.
2. Material Science: Engineering Stability at the Molecular Level
Beyond conventional specifications, we engineer material behavior through:
- Shage Compensation Algorithms: Customizing mold dimensions based on real-time crystallization data of engineering polymers (PC, PBT, PEEK).
- Hygroscopic Management: Pre-processing resins in climate-controlled drying systems to maintain <0.02% moisture content—critical for dimensional stability.
- Reinforcement Synergy: orientation through shear-controlled injection profiles to minimize anisotropic shrinkage.
3. Process Cybernetics: Closed-Loop Manufacturing Control
Our production ecosystem features:
- Intelligent Thermal Regulation: Multi-zone mold temperature control with PID feedback loops maintaining ±0.5°C uniformity, eliminating thermal warpage triggers.
- Pressure-Velocity Profiling: Servo-electric injection units with 0.01mm/s resolution adjust filling patterns dynamically using cavity pressure sensors.
- Distortion-Minimized Ejection: Calculating ideal cooling times via finite element analysis and applying vacuum-assisted ejection to prevent stress-induced deformation.
Every parameter is logged in our Manufacturing Execution System (MES for full traceability and reproducibility.
4. Metrological Verification: Precision Quantified
We deploy a tiered inspection protocol:
- First-Article Validation: 3D scanning with <8μm volumetric accuracy compares parts against CAD models.
- Statistical Process Control: Automated CMM checks 20+ critical dimensions per hour during production runs.
- Flatness Analytics: Laser interferometry measures surface planarity to 0.001mm/m², exceeding DIN 16742 requirements.
- Functional Testing: Environmental stress screening (thermal cycling/vibration) validates performance under real-world conditions.
5. Perpetual Optimization: The JBRplas Advantage
Our quality ecosystem evolves through:
- Field Performance Telemetry: Embedding sensors in client assemblies to monitor long-term dimensional behavior.
- Wear Predictive Analytics: Using tooling vibration spectra to schedule preventive mold maintenance before accuracy drifts.
- Closed-Loop Feedback: Integrating client production data into our DFM databases for next-generation improvements.
Why Partner with JBR?
With 30 years of specialization in mission-critical molding, we deliver:
- Full-Service Precision: Integrated mold design, tooling, and production under one roof.
- Zero-Warpage Guarantee: Proven expertise in flatness-critical applications like optical lenses and semiconductor carriers.
- Industry-Specific Solutions: Certified processes for medical (ISO 13485) and automotive (IATF 16949) sectors.
- Global Responsiveness: 24/7 engineering support across time zones with rapid prototyping capabilities.
Transform your precision requirements into competitive advantages—contact JBRplas to engineer perfection.
