Every decimal place you add on a 2D drawing carries a price tag. Product and mechanical engineers often specify tight tolerances across an entire plastic component, assuming injection molding can consistently hold all dimensions with little extra effort. In reality, plastic materials shrink, warp, and shift during cooling. Over-specifying tolerances is one of the most common hidden cost drivers in custom injection molding projects, leading to expensive mold rework, longer lead times, higher reject rates and delayed mass production.

Injection molded plastic parts do not behave like machined metal parts. Material shrinkage, mold temperature variation, packing pressure, and wall thickness changes all create dimensional deviation. Each polymer grade has its own shrink rate, typically ranging from 0.2% for filled engineering plastics up to 2.5% for unfilled polyolefins. Even with well-designed molds and stable process parameters, there is a natural limit to repeatable dimensional accuracy.

Tolerance Cost Impact Reference Table

The table below illustrates typical relative cost increases when designers switch from standard commercial tolerances to precision tight tolerances for plastic injection parts. Data is based on historical project statistics for thermoplastic components for automotive, medical and consumer electronics applications.

Note: Values are relative benchmarks. Final pricing depends on resin type, part geometry, cavity count, required Cpk targets and inspection frequency.

When do you really need tight tolerances?

Tight tolerances should only be applied to critical functional dimensions. These include mating surfaces, shaft holes, snap-fit interfaces, and sealing features where dimensional variation directly impairs assembly or product function.

For cosmetic surfaces and non-mating free-form geometry, using standard commercial tolerance is fully acceptable. Applying high-precision tolerance requirements to every feature forces the mold maker to use higher-grade mold steel, tighter mold machining standards, more frequent mold tryouts, and full dimensional inspection for every production batch. Each of these steps adds labor and cycle time.

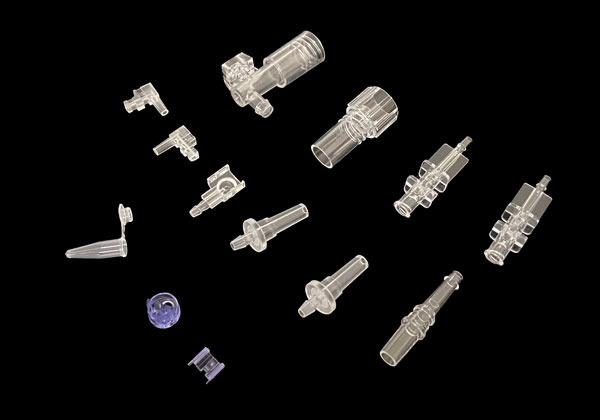

Material selection also defines achievable tolerance. Glass-filled materials such as PP-GF30 deliver lower shrinkage and better dimensional stability compared to unfilled PP or ABS. Amorphous resins like ABS, PC, PETG generally show less shrink variation than semi-crystalline plastics such as POM and PA. For ultra-precision medical parts, ISO 13485 controlled molding environments and all-electric injection machines are often required to stabilize process variation.

Practical DFM Best Practices

1. Separate your drawing dimensions into critical and non-critical features. Apply tight tolerance callouts only where required for function.
2. Discuss tolerance feasibility with your mold supplier during DFM review, before steel cutting. Early review can avoid costly mold rework.
3. Define acceptable Cpk requirements clearly. A Cpk ≥1.33 is common for stable production; Cpk ≥1.67 will push up tooling and QC cost significantly.
4. Account for plastic shrinkage and warpage in design. Uniform wall thickness helps minimize dimensional drift more than tight tolerance alone.

Conclusion

Tolerance specification is a balance between performance and manufacturing cost. Tighter tolerances do not automatically equal better parts. When engineers understand what plastic injection molding can realistically achieve, they avoid over-specification, reduce total project budget and shorten time to mass production. Always work with your injection molding partner to validate tolerances in the DFM phase, to eliminate surprises after T1 sample delivery.
