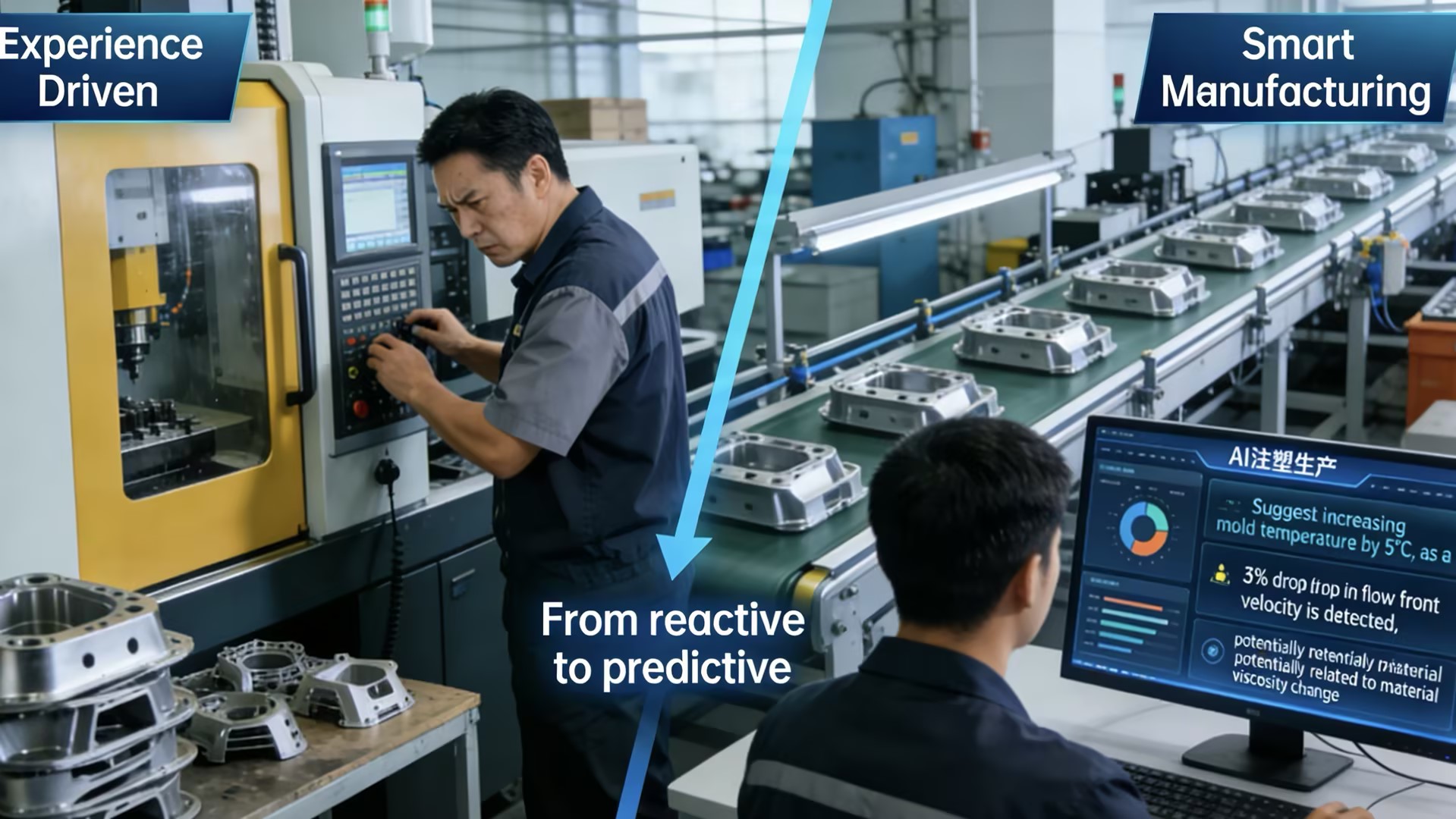

Step into any injection molding workshop, and you’ll likely see a familiar scene: a seasoned technician frowning in front of a machine, adjusting parameters based on years of experience, trying to fix a warping issue that just appeared. This "experience-driven" production model has dominated the industry for decades, but it is now being quietly disrupted by a revolution—artificial intelligence is moving from the lab to the shop floor, tangibly addressing three core challenges: predicting defects, optimizing cycle time, and saving energy while reducing emissions.
Traditional quality inspection is a case of "hindsight is 20/20"—defects are only found after the product is made, by which time waste has already occurred. AI moves inspection forward to during the production process or even before production begins.
Real Case: Real-Time Defect Prediction System Based on Machine Vision
How it works: High-definition industrial cameras are installed at the mold exit to continuously capture images of each molded part. The AI model (typically a Convolutional Neural Network or CNN) doesn't just classify parts as "good" or "bad." Instead, it analyzes subtle deformations, gloss variations, or flow front marks on the part at the moment of ejection.
What's even smarter: The system can correlate these visual features with real-time process parameters (like injection speed, mold temperature, holding pressure). After learning from tens of thousands of cycles, it discovers patterns invisible to the human eye. For example, if a specific fluctuation occurs in the injection speed curve combined with a mold temperature rise of 0.5°C, the system can issue a warning 2-3 cycles before a sink mark actually appears, prompting the operator to adjust parameters.
Result: An automotive component manufacturer using this system reduced scrap rate due to appearance defects from 2.1% to 0.4%, saving over a million yuan annually in material costs alone.
Deeper Prediction: Defect Anticipation Based on Process Data
More advanced applications don't even require cameras. By analyzing data from the injection molding machine's own sensors (screw position, hydraulic pressure, oil temperature, etc.), AI can build a mathematical model linking process stability to final quality. The system can identify process deviations that are still within tolerance but have strayed from the optimal path, allowing for intervention before physical defects manifest—truly achieving preventive quality control.
Cycle time is the lifeblood of injection molding production. Traditional optimization relies on trial and error, while AI, through systematic exploration and learning, can identify efficiency bottlenecks that humans often miss.
Dynamic Holding Pressure Curve Optimization
The holding phase is critical for dimensional stability and shrinkage but is often set based on empirical formulas. Here’s how AI tackles it:
Create a Digital Twin: First, a simplified virtual production model is built based on material properties, mold structure, and part geometry.
Continuous Learning & Optimization: During actual production, AI continuously collects data from each cycle (e.g., cavity pressure sensor data, online measurements of key part dimensions). Using reinforcement learning algorithms, AI fine-tunes the holding pressure curve and switch-over point like playing a game, rewarding itself for achieving goals like "shorter holding time" and "more stable dimensions."
Outcome: An electronics connector manufacturer applied this technology and reduced the overall cycle time by 8% while maintaining dimensional tolerances. This translates to tens of thousands of additional parts produced annually per machine running continuously.
Intelligent Cooling and Mold Opening Logic
AI can also analyze temperature sensor data from different areas of the mold to dynamically adjust cooling water valve openings, ensuring efficient and uniform cooling. Meanwhile, by analyzing data like ejection resistance, it optimizes mold opening timing and speed profiles, reducing non-productive time while protecting the mold.
Amid rising energy costs and "Dual Carbon" goals, the potential for energy savings in injection molding is immense. AI-driven energy saving goes beyond turning off a light—it's about precise management of the entire energy flow.
Precision "On-Demand" Energy Supply
Traditional injection molding machine power systems (especially hydraulic systems) often suffer from "overkill" energy waste. By learning the production schedule for the next half-hour (product types, quantities) and combining it with real-time operating conditions, AI can:
Predict and dynamically set the minimum required hydraulic pressure and flow.
Optimize PID control parameters for different heating barrel zones to reduce temperature overshoot and fluctuation.
Coordinate the production rhythm of multiple machines in the workshop to smooth out total power demand peaks, lowering base electricity costs.
Measured Data from a Major Home Appliance Manufacturer: By deploying an AI energy-saving system, the comprehensive energy consumption (electricity, water) of their injection molding workshop decreased by 12-15%, with the hydraulic system accounting for the majority of the savings. The investment payback period is typically 1-2 years.
Reading this, you might feel both excited and skeptical: this sounds great, but isn't it hard to implement? Indeed, successful AI application requires overcoming several hurdles:
Data Foundation: Without stable and reliable data collection (sensors, PLC communication), AI has "no food to cook." This is the first and most critical step.
Problem Focus: Don't aim for an "omniscient" AI. The most successful projects often start by solving one specific pain point (e.g., predicting a particular defect, optimizing a high-energy-consumption step).
Human-Machine Collaboration: AI isn't meant to replace experienced technicians but to become their "super assistant." The system should provide explainable recommendations (e.g., "Suggest increasing mold temperature by 5°C, as a 3% drop in flow front velocity is detected, potentially related to material viscosity change") rather than being an incomprehensible "black box" issuing commands.
The application of AI in injection molding essentially transforms the vague, intuition-dependent experience of the production process into clear, quantifiable, and reproducible digital models. It brings not only efficiency gains and cost reductions but also a paradigm shift in production methods—from reactive to predictive, from isolated parameters to global coordination, from reliance on individuals to dependence on systems.
This transformation is not far off. You can start today with one thing: Begin systematically and digitally recording the core parameters and quality results for every production cycle of your most critical machine. This data is the first and most solid foundation for your future move towards AI-driven "smart injection molding."
The future is already here—it's just not evenly distributed. And AI is one of the most effective accelerators to change that.
