In the high-stakes world of injection molding, there lurks a silent "profit thief," steadily eroding your bottom line. This thief is none other than uncontrolled mold heat. As the saying goes, "The heat in the mold is the thief of profit," and the primary defense against this thief is a well-engineered cooling system. It is the unsung hero that directly dictates both production efficiency and product quality.

The Critical Link: How Cooling Governs Efficiency and Quality

The fundamental principle at play is temperature control.

The Battle for Efficiency: The pursuit of profitability often focuses on reducing cycle times. Imagine cutting a cycle from 40 seconds to 30 seconds. However, when you push the process faster, the mold temperature rises because the heat from the molten plastic isn't removed quickly enough. If the cooling system's heat exchange capacity is exceeded, you lose control. You might even be forced to lengthen the cycle from 40 seconds to 50 seconds just to bring the temperature down. Every second lost in this battle is a direct hit to your profits. A difference of just 1/5 of the time significantly increases the mold's temperature because the heat exchange value plummets.
The Foundation of Quality: Non-uniform cooling is a primary culprit behind defective parts.
- Appearance: Mold temperature has a profoundly important impact on the visual quality of the part. Issues like sink marks, flow lines, and poor surface gloss are often traced back to improper temperature.

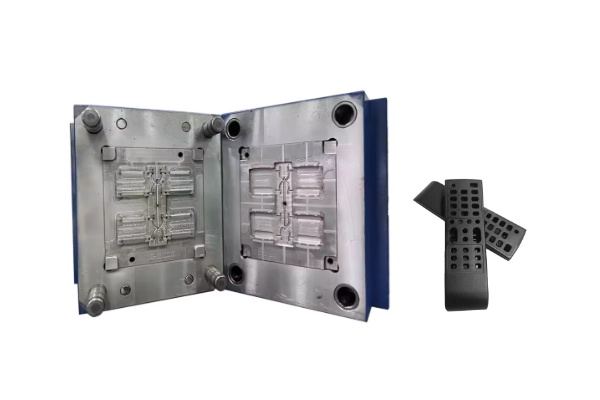

- Warpage: The influence of mold temperature on warpage is immense. Consider a TV remote control. The front side might be smooth, but the back side is full of buttons and a dense network of ribs. When this part cools, the thick, rib-filled sections shrink differently than the thin, smooth areas, causing the entire part to warp into a banana-like shape. One of the key strategies to counteract this warpage is using localized temperature control via cooling channels to create a balanced thermal profile and manage differential shrinkage. While process parameter adjustments in multiple stages can help, the cooling system ultimately sets the standard for controlling deformation.

Pushing the Limits: The Art of Cooling Thin Cores

The challenge intensifies with thin core pins. Take a pin with a diameter of just 3mm or 4mm. The critical question arises: Do you add a cooling channel inside it? How?

This problem separates basic design from advanced engineering.

The Consequence of No Cooling: The area becomes a major bottleneck, cooling sluggishly and leading to extended cycles, uneven shrinkage, and potential part sticking—sacrificing both quality and efficiency.
The Difficulty of Implementation: Traditional drilling is often impossible; a 3mm channel is too small and risks breaking the drill bit.
Advanced Solutions: Even with modern techniques like 3D printed bimetallic cores (e.g., steel outside with a highly conductive copper/silver interior), achieving sufficient strength in such delicate structures is a challenge. For instance, the core of a pen barrel might have a wall thickness of only 0.7mm after drilling, requiring exceptionally tough steel.

So, what are the elite solutions for cooling a "pen"?

There are typically three levels of approach, with the most advanced being quite rare:

Conventional (One Method): Forgo internal cooling and accept the limitations.
Innovative (Two Methods): Air Cooling. This is a brilliant workaround. The core is drilled through and connected to a system that chills air to extremely low temperatures (around -100°C) and dehumidifies it. This super-cooled, dry air is then forced through the core to extract heat, perfectly avoiding any risk of water leakage.
Ultimate (Three Methods): The Japanese-developed "Leak-Free" Water Cooling. Here, a micro-channel is created in the core, but it's connected to a sophisticated external unit. This unit automatically connects water lines when the mold closes, and, crucially, before the mold opens, it first drains the water and then uses a vacuum to suck out every last drop, preventing any leakage that would be a disaster inside the mold. This allows for aggressive cooling of incredibly delicate features.

Beyond Design: The System-Level "Arms Race"

True optimization extends beyond the mold design itself. Sometimes, a significant competitive advantage comes from peripheral equipment.

The Scenario: One molder runs a mold in a 40-second cycle, while another requires 50 seconds, with no changes to the mold itself.
The Secret Weapon: A high-pressure water booster pump.
The Principle: This pump dramatically increases the flow velocity of the cooling water within the channels. Doubling the flow rate can vastly improve the heat exchange efficiency, thereby reducing the cycle time. This is a prime example of how intense the competition has become—every second counts, and optimization touches every part of the process, including the cooling water system.

Conclusion

Cooling channels are not merely holes in a mold block. They are the metronome that sets the pace of production, the guardian that ensures dimensional stability and appearance, and the critical valve controlling the flow of profit.

From preventing the warpage of a remote control to enabling the high-speed production of a pen core through revolutionary cooling methods, the evidence is clear: Mastering mold temperature is paramount. And the ultimate tool for mastering temperature is a meticulously designed and managed cooling system. The next time you look at a mold, remember: what flows through those channels isn't just water or air—it's the lifeblood of your efficiency, quality, and profitability.
