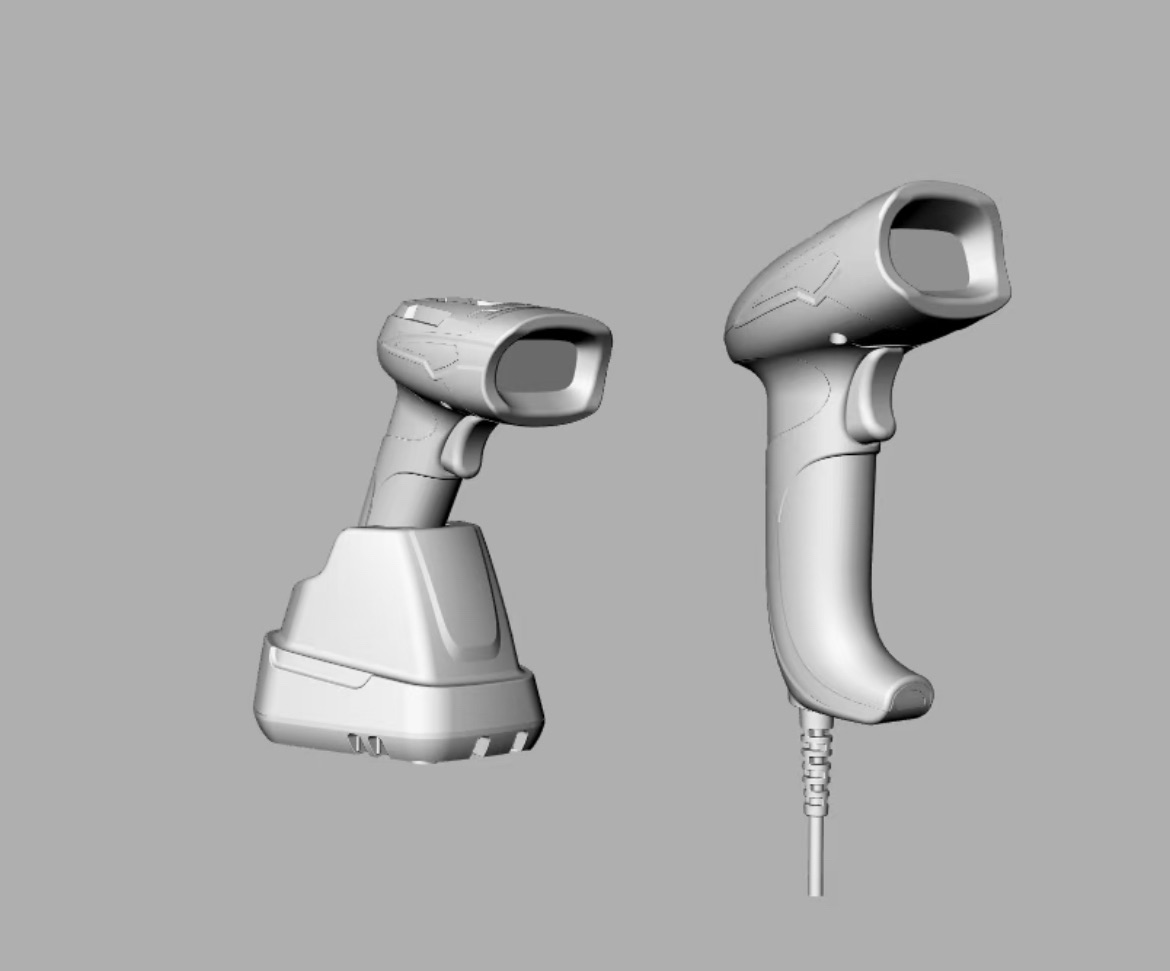

For products like UHF RFID handheld readers, the preparation work before mold opening is more complex than for standard plastic parts. It's not just "a plastic shell" — it's a precision device housing that integrates antennas, circuit boards, batteries, screens, and multiple other components. Below are 7 key preparation items to help you coordinate efficiently with your mold manufacturer.
What's needed: Complete 3D models (STEP/IGS format) that include not just the external shell shape, but also all internal mounting structures — slots, bosses, ribs, battery compartment, screen window, button holes, scanner window openings, etc.
Why it matters: The antenna performance of UHF RFID handheld readers is significantly affected by the surrounding environment. The antenna positioning inside the housing, and the relative positions of metal components (such as shielding cans and batteries) to the antenna, all need to be precisely considered in the mold design. The more complete the internal structure, the more accurate the mold design.
What's needed: Engineering drawings with critical assembly dimensions and tolerances clearly marked, especially: battery compartment dimensions and tolerances, flatness of the screen mounting surface, clearance for button holes, positional accuracy of the scanner window, height and diameter of screw bosses, and fit requirements at shell parting lines.
Why it matters: The assembly precision of handheld readers directly affects user experience and ingress protection (IP) ratings. If tolerances are too loose, screens shift and buttons stick. If tolerances are too tight, assembly becomes difficult and scrap rates increase.
What's needed: Estimated annual production — a few hundred units (prototype validation), a few thousand units (small batch), or tens of thousands and above (mass production).
Why it matters: Production volume determines mold design life and steel selection. For small batches, standard steel like P20 can reduce costs; for large batches, high-quality steels like 718H or even S136 are required to ensure mold durability. Additionally, UHF handheld housings often require conductive plastics (containing stainless steel fibers) to achieve EMI/RFI shielding, which has poor flowability and requires special consideration in mold design and steel selection.
What's needed: What plastic will be used? Standard ABS, PC/ABS alloy, or conductive ABS (shielding material containing stainless steel fibers)?
Why it matters: UHF RFID handheld readers typically require EMI/RFI shielding and often use conductive plastics (ABS + stainless steel fibers). This material has the following characteristics to note:
Poorer flowability than standard plastics — gates and runners need to be enlarged accordingly
Relatively brittle (similar to phenolic resin) — not suitable for high-impact scenarios
Conductive plastic is not an insulator — must be treated as a metal housing
As a conductor, it generates heat when current passes through
Note: If choosing conductive plastic, be sure to inform the mold manufacturer in advance. The material characteristics affect gate design, ejection mechanisms, and even steel selection.
What's needed: Surface finish requirements: high-gloss, matte, or textured? Is there a specified color (Pantone number)? Which surfaces are cosmetic surfaces that cannot have defects? Are there special requirements for the transparent area of the scanner window?
Why it matters: Cosmetic requirements determine the mold's surface treatment method. High-gloss surfaces require mold polishing to mirror-grade; matte or textured surfaces require chemical etching or grain engraving. Handheld readers are "hand-held products" — appearance quality directly impacts brand image.
UHF RFID handheld readers involve multiple special requirements. It's recommended to confirm each item:
| Special Requirement | Impact on Mold |
|---|---|
| Ingress Protection (IP54/IP67) | Affects parting line seal design and sealing groove placement |
| EMI/RFI Shielding Effectiveness | Affects material selection (conductive plastic) and wall thickness design |
| Antenna Positioning Precision | Affects dimensional accuracy and positional tolerances of antenna mounting slots |
| Battery Compartment Safety | Affects gap design and venting structure of battery compartment |
| Drop Test Requirements | Affects rib layout and wall thickness design |
| Flammability Rating (UL94 V-0) | Material already meets requirement, but mold venting must be confirmed |
What's needed: In what environment will the product be used? Indoor warehouses? Outdoor inspections? Factory workshops? (Is there exposure to oil, dust, or chemicals?)
Why it matters: The operating environment determines housing material and surface treatment direction. The mold must be designed accordingly — corrosion-resistant and chemical-resistant applications require special steels (such as S136); outdoor use requires consideration of UV stability and impact resistance.
| Item | Why It's Needed | Suggested Format |
|---|---|---|
| 3D CAD Files (with internal structures) | Positioning of antenna, battery, screen, and other internal components | STEP/IGS, including all mounting structures |
| 2D Drawings (critical dims & tolerances) | Ensuring assembly precision and IP rating | PDF/DWG, with critical fit dimensions marked |
| Estimated Annual Production Volume | Determining mold life and steel grade | Hundreds/thousands/tens of thousands+ |
| Material Requirements | Conductive plastics have poor flowability, affecting mold design | Specify grade or functional requirements |
| Cosmetic Requirements | Determines mold surface treatment method and cost | Pantone number + texture reference + photos |
| Special Requirements Checklist | Affects mold structure and material selection | Confirm each item one by one |
| Application Scenarios | Determines housing design direction | Operating environment and testing requirements |
The challenge of injection molding UHF RFID handheld reader housings is not the "plastic shell" itself, but how it perfectly integrates with internal electronic components — antennas, circuit boards, and batteries. Antenna positioning, EMI shielding, IP protection, and special processing requirements for conductive materials — these are the real challenges in mold design.
One principle when preparing information: what the electronics engineer needs to know, the mold engineer also needs to know.
If you have a UHF RFID handheld reader housing molding project, feel free to send us your existing materials. We can help identify what's missing and consider special requirements like conductive plastic processing, antenna positioning precision, and IP protection at the design stage to avoid costly rework later.
