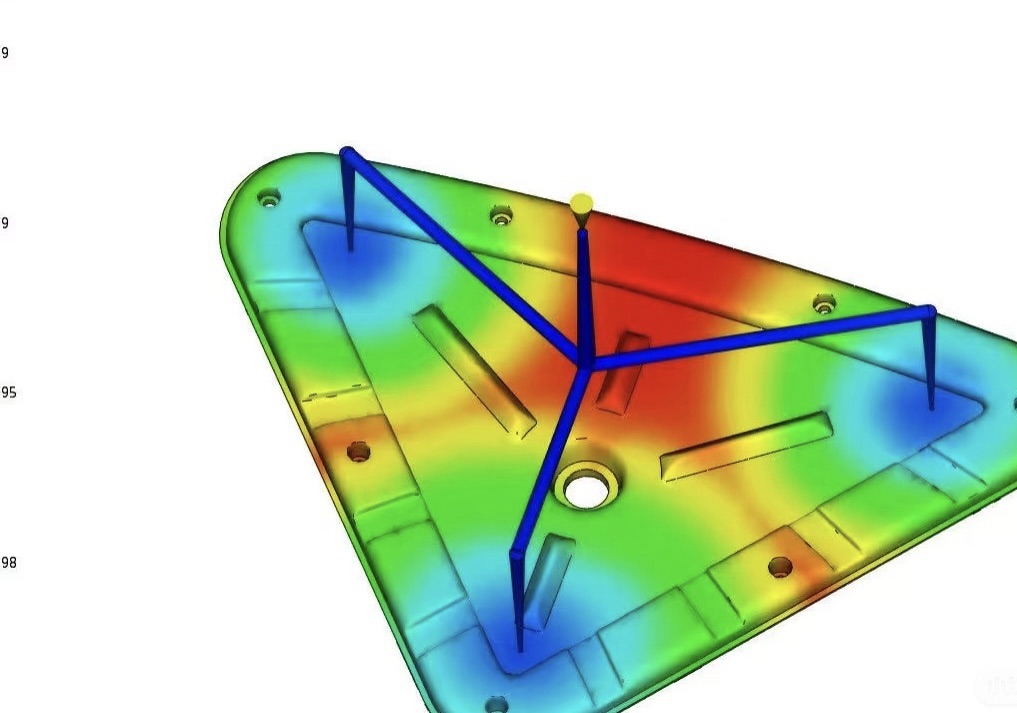

Moldflow simulation is a cornerstone of modern injection molding, offering predictive insights into part quality, cycle times, and defects. However, discrepancies between analysis results and actual production outcomes can undermine confidence and lead to costly revisions. As a professional in the field, you might encounter this frustrating gap—often stemming from subtle setup errors. This article delves into the primary reasons for these mismatches, drawing on industry expertise to help you refine your approach and achieve more reliable simulations.
Material properties are foundational to Moldflow's predictive accuracy. Input errors in viscosity, thermal conductivity, or specific heat capacity can skew results significantly. For instance, using default database values without verifying them against real-world data may lead to unrealistic flow predictions. Viscosity variations, influenced by temperature and shear rate, must be calibrated precisely; otherwise, simulations might overestimate filling times or underestimate warpage. Always validate material data through lab tests or supplier specifications to ensure alignment with actual resin behavior.

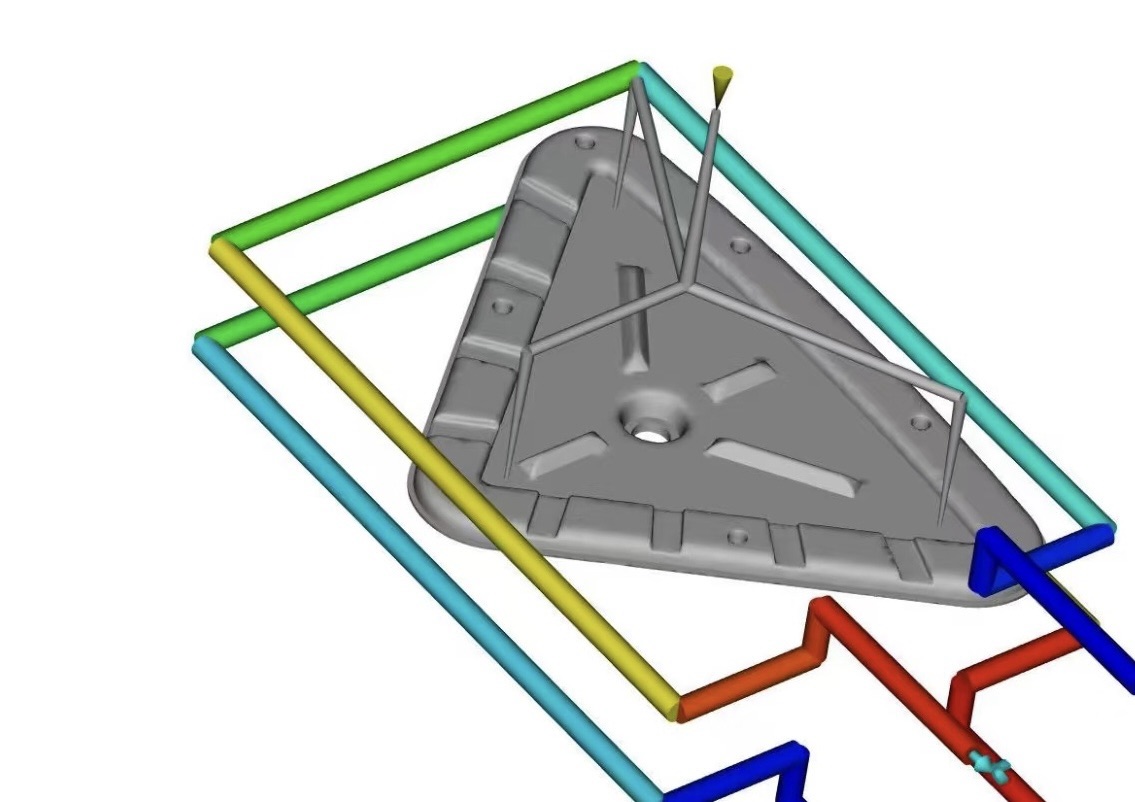

Boundary conditions define how the mold interacts with the environment, such as cooling channels or heat transfer coefficients. Common pitfalls include oversimplifying cooling layouts—e.g., neglecting turbulent flow effects—or misrepresenting mold temperatures. If cooling rates are not modeled correctly, the analysis may fail to predict thermal stresses, resulting in unexpected sink marks or dimensional inaccuracies. To mitigate this, incorporate detailed thermal maps and real-world measurements, ensuring that boundary conditions reflect the physical mold setup.
Mesh generation is critical for capturing complex geometries, but coarse or distorted elements can introduce errors. Inadequate resolution in thin-walled sections or around intricate features may cause artificial flow restrictions or missed defects like air traps. Conversely, excessively fine meshes increase computation time without proportional gains. Aim for a balanced approach: use adaptive meshing for critical areas and validate mesh quality through convergence studies. This ensures that simulations accurately represent real-world flow dynamics.
Process settings, such as injection speed, pressure profiles, and packing times, must mirror actual machine conditions. Discrepancies often arise from default values that don't account for machine-specific variations or operator adjustments. For example, an overly aggressive injection profile in the simulation might not translate to shop-floor realities, leading to underestimated shear heating or flash. Calibrate these parameters using historical production data and conduct sensitivity analyses to identify optimal ranges.
Conclusion: Bridging the Gap for Reliable OutcomesAddressing these setup errors not only enhances Mold design and troubleshooting. By rigorously validating material data, refining boundary conditions, optimizing mesh, and aligning process parameters, you can minimize discrepancies and Moldflow is a tool—its reliability hinges on meticulous input. Implement these best practices to transform analysis into actionable insights, reducing trial-and-error and accelerating your path to high-quality production.
