Our customer invests and establishes an overseas manufacturing company in the southern region of China. They required a partner with a comprehensive understanding of plastic mold manufacturing to bring their innovative part to life.
Customer Testimonial: "In JBR we found the right partner for the creativity of this part. JBR supported us in the feasibility study of the product, the building of the production molds, as well as the parts. We experienced this process as a real collaboration. The proactive working method and in-depth technical expertise of JBR helped us to meet the excellent quality requirements that we set for our products. JBR always thought along with us in the process, gave us fast lead time, and complied with all our agreements."
Design for Manufacturing (DFM) review is a critical step in the product development process where the design of a product is assessed for its manufacturability. The goal is to ensure that the design can be efficiently and cost-effectively produced at scale without sacrificing quality or functionality.
With Design for Manufacturing review, we can avoid causing molding defects, making it our first priority to address. At this level of detail, we can help the customer find or make minor improvements that they may have overlooked, so now is a great time to implement them.
We worked with the customer to understand the critical tolerances or other dimensions that could not be modified and then worked within those constraints. We then prepared a PowerPoint file to share with the client, highlighting the most important areas for their feedback or comments.

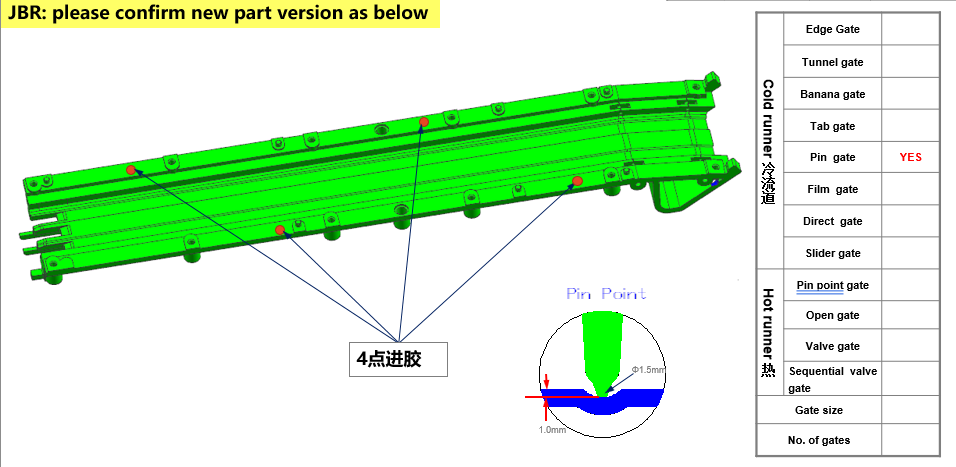

Gates in molds serve as the entry point for molten material during the molding process. They are critical for controlling material flow, ensuring part quality, and optimizing production efficiency. Proper gate design and placement are essential for achieving desired molding outcomes and minimizing defects in the finished parts.

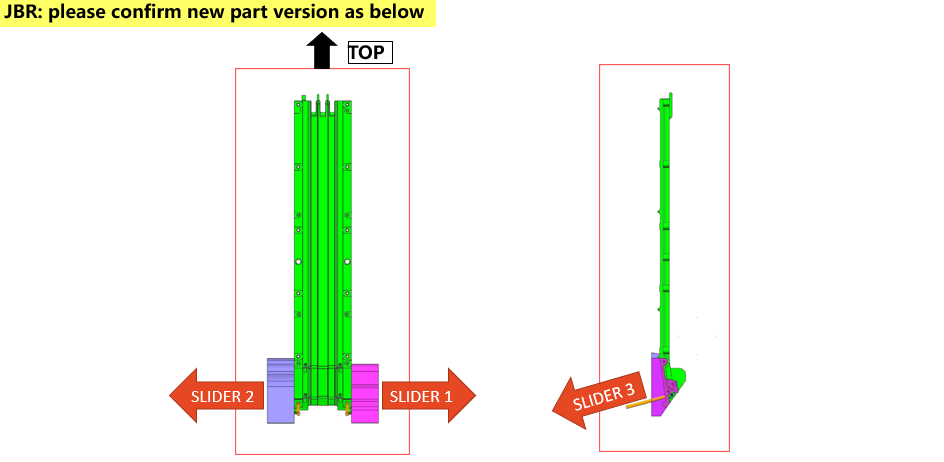

An effective mold layout is essential for achieving consistent and high-quality production in manufacturing processes. It requires careful consideration of various factors to optimize part production while minimizing costs and lead times.

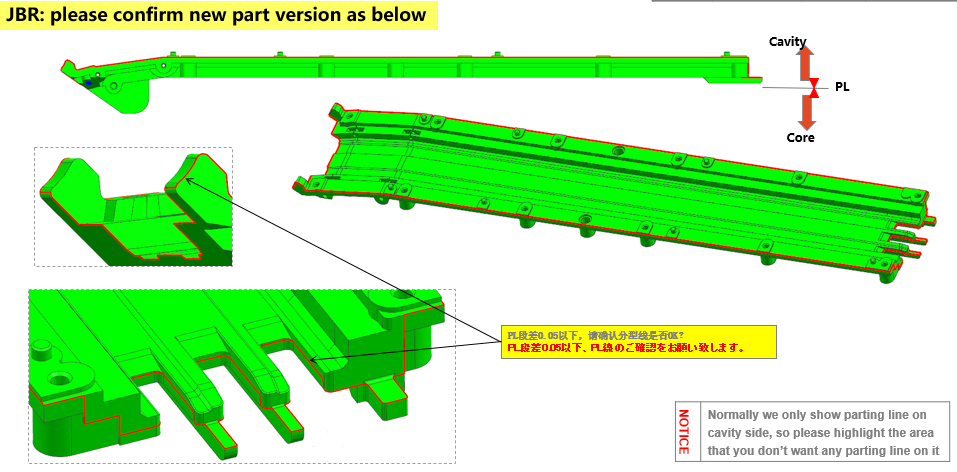

The parting line plays a critical role in mold design and manufacturing processes, ensuring proper mold closure, material containment, and part quality. By defining the boundary between mold halves, the parting line facilitates efficient production of high-quality molded parts.

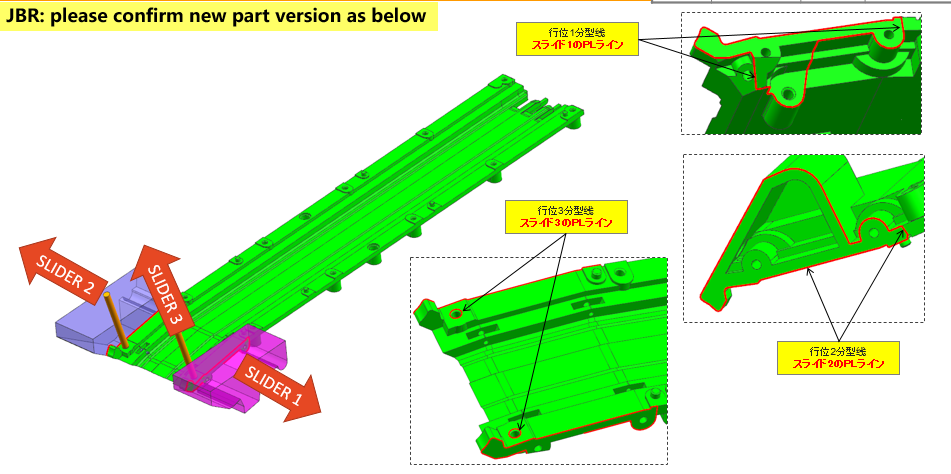

Sliders are essential components in mold design for creating complex features in injection-molded parts. They enable the production of parts with greater functionality, aesthetics, and performance, expanding the possibilities of injection molding technology.
Throughout the entire mold tool design process, collaboration between designers, mold makers, engineers, and manufacturers is crucial to ensure that the final mold meets all requirements and specifications for successful injection molding production.
We hope that in this case study you found useful information to help you prepare your product designs for your next production molds or volume production order. We will apply the same careful Design for Manufacturing review when we help you bring your product ideas to life, so let’s get started today!
For more information about our services, visit JBR Plastic Mold Manufacturer.
What services does JBR offer as a plastic mold manufacturer?
JBR offers custom plastic injection molds, molding services, and the production of long-size plastic parts.
How does JBR ensure high-quality production?
JBR ensures high-quality production through meticulous Design for Manufacturing reviews, precise gate design and placement, and effective mold layouts.
What materials does JBR use for their molds and parts?
JBR uses high-quality materials such as PC for parts and NAK80 for molds to ensure durability and performance.
Can JBR handle complex part designs?
Yes, JBR is equipped to handle complex part designs using advanced components like sliders in mold design.
How does JBR support overseas customers?
JBR supports overseas customers by providing excellent service, fast lead times, and ensuring open communication to quickly resolve any issues.
Where can I learn more about JBR's plastic mold manufacturing services?
For more information, visit the JBR Plastic Mold Manufacturer website.
By following these practices, JBR ensures that every project meets the highest standards of quality and efficiency. Partnering with JBR means partnering with a leader in the plastic mold manufacturing industry.
By Artemis Wu
2023/05/31
