How Precision Jigs Improve Silk Screen Accuracy in Mold Production

The Challenge: Silk Screen Misalignment

Silk screen printing is essential for adding branding or functional details to molded parts. Misalignment can arise from:

• Inconsistent Part Positioning: Variations during printing disrupt alignment.
• Machine Deviations: High-volume production increases the risk of slight shifts.
• Operator Errors: Manual setups introduce potential inaccuracies.

These issues degrade product quality and functionality, increasing waste and customer dissatisfaction.

The Solution: Custom Precision Jig

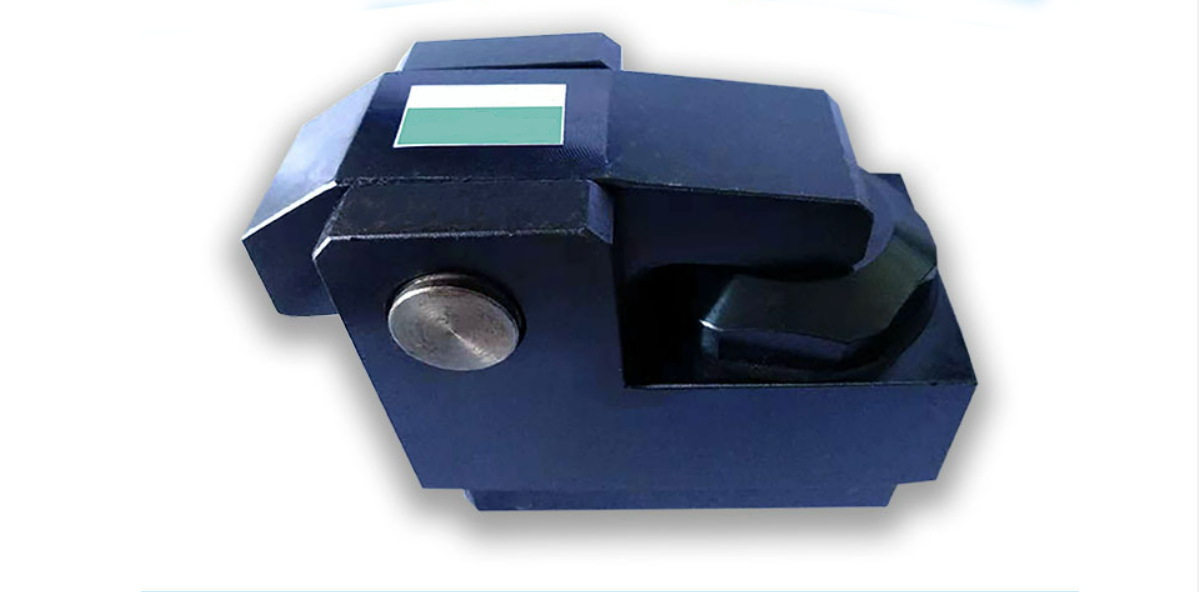

Our engineering team designed a custom jig to ensure precise silk screen alignment. Key benefits included:

• Stability: Secured parts eliminated movement during printing.
• Consistency: Standardized placement ensured uniform results across all parts.
• Efficiency: Faster setup times reduced downtime and improved production speed.

Results: Improved Quality and Efficiency

After introducing the jig, the silk screen position was perfectly aligned across all parts. This improvement not only resolved quality concerns but also increased customer satisfaction by delivering consistent, high-quality results. Furthermore, the jig’s implementation reduced waste and rework, saving time and resources.

Why Precision Matters in Mold Production

This experience underscores the importance of precision tooling in mold production. Custom jigs and fixtures are invaluable in addressing challenges, enhancing process efficiency, and ensuring product quality.

At JBR, we are committed to delivering excellence in mold production and manufacturing. By combining innovative solutions with a customer-first approach, we help our clients overcome production challenges and achieve superior results.



FAQs

1. How do precision jigs improve silk screen accuracy?
By securely holding parts and standardizing placement, precision jigs ensure consistent, high-quality prints.

2. Why is silk screen alignment important in molded parts?
Accurate alignment ensures functional and aesthetic integrity, preventing quality issues.

3. Can custom jigs reduce production time?
Yes, jigs streamline setups, reduce errors, and increase production efficiency.

4. What challenges can jigs address in mold production?
Jigs resolve misalignment, instability, and operator setup inconsistencies, enhancing product quality.

5. How does JBR support precision manufacturing?
We provide tailored solutions, from custom tooling to full-scale production, ensuring superior outcomes.
