How to Solve Short Shot Issues in Injection Molding: Solutions and Best Practices

What is a Short Shot?

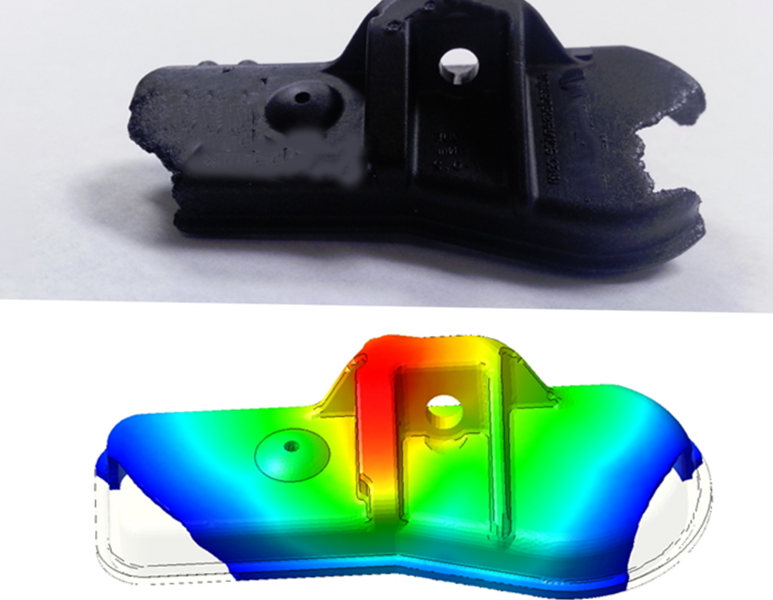

A short shot occurs when the injection molding process fails to fill the mold cavity completely with molten plastic, leaving gaps or voids in the part. This defect can lead to serious issues with the functionality and aesthetics of the product, resulting in wasted materials and delays. Let’s explore the causes of short shot and how to effectively address this common problem.

Causes of Short Shot

Several factors contribute to short shots during injection molding. Understanding these causes is the first step in preventing and solving the issue.

1. Insufficient Injection Pressure

• If the injection molding machine does not provide enough pressure, the plastic may not flow properly into the mold cavity, resulting in incomplete fills.

2. Low Injection Speed

• Slow injection speeds can cause the plastic to cool prematurely, especially in thin-walled or intricate molds, which can lead to short shots.

3. Material Flow Issues

• If the plastic material is too thick (high viscosity) or not heated sufficiently, it may struggle to flow completely through the mold, leading to gaps in the final product.

4. Improper Mold Design

• Mold design issues, such as inadequate gate placement, poor runner design, or insufficient venting, can restrict the flow of plastic, leading to short shots.

5. Inconsistent Mold Temperature

• If the mold is unevenly heated, the plastic may cool too quickly in certain areas, preventing the mold from being fully filled.

How to Solve Short Shot Problems

Here are some solutions to help address and solve short shot issues in your injection molding process:

1. Increase Injection Pressure

• One of the easiest ways to prevent short shots is to increase the injection pressure. This ensures that molten plastic fills the mold cavity completely.

2. Adjust Injection Speed

• Optimizing the injection speed allows the material to flow smoothly into all areas of the mold, especially complex designs or thin-walled sections.

3. Optimize Material Flow

• Choosing the right material for your application is essential. Ensure that the material has good flow properties and that it is heated to the appropriate processing temperature.

4. Improve Mold Design

• Redesigning the mold, including optimizing gate placement, runner design, and venting, will ensure efficient plastic flow and reduce the chance of short shots.

5. Control Mold Temperature

• Maintaining a consistent mold temperature is key to achieving complete filling. Ensure that the mold is heated evenly to prevent premature cooling and material solidification.

6. Use Multi-Cavity or Overmolding Techniques

• In complex parts with intricate geometries, multi-cavity molds or overmolding techniques may be required to ensure uniform material distribution.



Quality Control and Monitoring

Consistent monitoring and adjustments are essential to avoiding short shots during production. Here are some tips to ensure high-quality outcomes:

• Monitor Injection Pressure and Speed: Always check the machine’s settings to make sure they are correctly calibrated for the specific material and mold.

• Perform Routine Mold Inspections: Regular maintenance ensures that the mold remains in optimal condition, reducing the risk of defects like short shots.

• Collect Production Data: Monitor cycle times, temperature, and pressure data to improve the process and prevent future short shot occurrences.

Conclusion

Short shots are a common yet preventable issue in injection molding. By adjusting the injection pressure, optimizing material flow, improving mold design, and ensuring consistent mold temperature, manufacturers can eliminate short shots and produce high-quality parts every time.

At JBR, we specialize in providing bespoke plastic parts and have the experience to address complex injection molding challenges like short shots. Whether you need expert advice or a custom solution for your production line, our team is ready to help.

FAQs

Q1: What causes short shots in injection molding?
Short shots can be caused by insufficient injection pressure, slow injection speeds, poor material flow, inadequate mold design, or inconsistent mold temperatures.

Q2: How can I prevent short shots in my injection molding process?
To prevent short shots, increase injection pressure, adjust injection speed, choose the right material with optimal flow properties, and improve mold design.

Q3: What materials are best for preventing short shots?
Low-viscosity materials that flow easily, such as certain thermoplastics, are ideal for preventing short shots.

Q4: Can short shots be repaired after the molding process?
Once a part has been molded with a short shot, it typically cannot be repaired. The part will need to be re-molded or discarded.

Q5: How does mold design impact short shots?
Proper mold design, including gate placement, venting, and runner systems, ensures that plastic flows efficiently into all sections of the mold and reduces the risk of short shots.

Q6: How does injection speed affect short shots?
Slow injection speeds may cause the plastic to cool too quickly, preventing complete filling of the mold. Increasing the speed ensures uniform filling and minimizes short shots.

Have questions or facing challenges in your injection molding process? Contact JBR today, and our team of experts will guide you to the best solution!
