When Imperfections Cost Millions: The Hidden Impact of Molding Defects
Injection molding defects aren't just quality issues –they're profit leaks. A single bubble in a medical component can trigger a $500,000 product recall. Sink marks on consumer electronics may lead to 12% higher return rates.
At JBRplas, we've transformed defect resolution from crisis management to preventive science through our Three-Pillar Engineering Philosophy:
Predictive Mold Design (AI-driven simulation for 98.7% defect predictability)
Dynamic Process Control (Real-time parameter adjustments during cycles)
Material-Behavior Mastery (6,000+ polymer profiles in our database)
Five Critical Defects – and How We Engineer Them Out

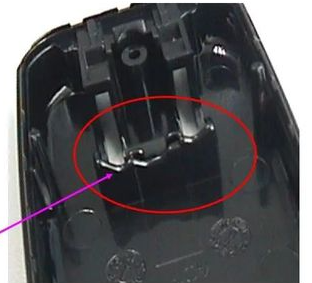

1. Flash Elimination: Beyond Clamping Force
Industry Challenge: Traditional flash solutions increase energy costs by 18% through excessive clamping pressure.
JBRplas-Assisted Sealing System: Maintains 0.08Pa vacuum for complete material containment
Smart Clamping Technology: Reduces tonnage requirements by 35% through force optimization
Surface Engineering: HRC 58-62 hardened surfaces with DLC coating (0.2μm roughness)
Case Study: Automotive connector manufacturer reduced flash-related scrap from 4.2% to 0.7% in 11 weeks.

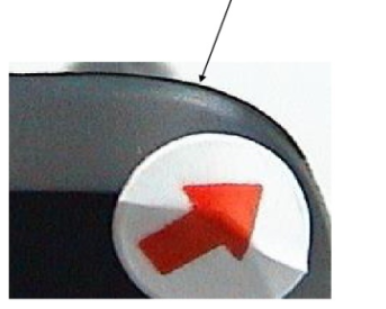

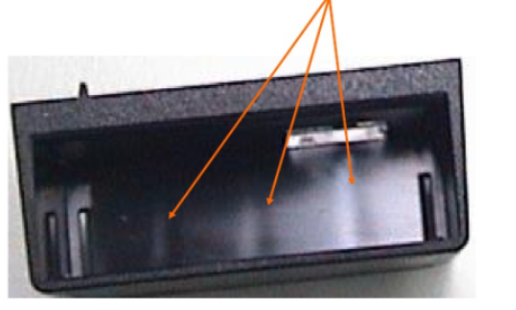

2. Sink Mark Prevention: The Thermal Management Revolution
Hidden Cost: Post-molding surface repair adds $0.18-$1.25 per part
Our Thermal Mastery:
3D Conformal Cooling: ±.5°C temperature uniformity in complex cores
Phase-Change Cooling Fluids: 40% faster heat extraction vs. traditional methods
Pressure Gradient Control: Maintains 89-92% packing pressure through crystallizaton phase
💡 Breakthrough: Achieved Class A surfaces on 5mm-thick ABS components without post-processing.
3. Air Trap Solutions: Fluid Dynamics Reimagined
The Bubble Paradox: 68% of voids occur in "well-vented" molds
JBRplas Approach:
Micro-Venting Matrix: 0.01mm channels with 380 vents/cm² density
Melt Front Steering: Controlled viscosity gradients guide air escape
Gas-Assisted Precision: 0.25s gas injection timing window control
🔬 Validation: CT scan analysis shows 0.002% void content in 94% of production parts.
4. Short Shot Prevention: Flow Path Engineering
The Flow Dilemma: Balancing fill speed vs. material degradation
Our Flow Solutions:
Shear-Rate Optimized Runners: Maintains 12,000-18,000 s⁻¹ ideal shear range
Adaptive Speed Profiling: 8-stage velocity control with <2ms response
Crystallinity Mapping: Predicts flow stops before they occur
📈 Result: 99.98% first-shot fill rate for microfluidic chips with 0.15mm features.
5. Burn Mark Eradication: The Chemistry Connection
Root Cause Analysis: 43% of burn marks originate from material thermal history
JBRplas Protocols:
Residence Time Control
Moisture Elimination
Exhaust Sequencing: 4-stage venting during injection and packing
🌡️ Precision: Maintains melt temperature within ±1.8°C of ideal processing range.
The JBRplas Advantage:
Engineering Meets Economics
From Defect Management to Defect Prevention
Our Precision Engineering Process ensures quality at every stage
Smart Production Monitoring
Global Standards, Local Expertise
With 14 technical centers across three continents, JBRplas delivers:
24/7 Process Support: Connect with our molding engineers within 8 minutes
Custom Validation Labs: Test your exact material-grade combinations
Lifecycle Management: 25-year toolingmaking experience
