Precision in Every Detail: The JBRplas Approach to Plastic Injection Mold Design

1. Gate Location: The Foundation of Flow Dynamics

Our design process begins with strategic gate positioning, a decision that impacts:

• Cavity configuration (1/2/4+ cavities)
• Aesthetic requirements for visible parts
• Material flow characteristics

Key configurations we employ:

• 1cavity molds: Optimized for large components (>500g) or geometrically complex parts
• 2-cavity systems: Ideal for submarine/side gates in technical components
• Multi-cavity arrays: Designed with our proprietary flow-balance algorithm for high-volume production

JBRplas Insight: For cosmetic-grade surfaces, we implement laser-trimmed pin-point gates (Φ0.8-1.2mm) that leave virtually undetectable vestiges, combined with a 25% main runner enlargement to maintain PSI stability.

2. Parting Line Engineering: Where Form Meets Function

Our parting line strategy focuses on three pillars:

| Design Priority | Implementation Example |  Structural Integrity | 3°-5° draft angles for clean separation | | Manufacturing Efficiency | CNC-machinable flat surfaces (Ra 0.8μm) | | Cost Optimization | Elimination of complex lifters/sliders |

For automotive components requiring Class A surfaces, we utilize zero-gap flash control systems with temperature-regulated sealing zones.

3. Cavity Spacing: The Geometry of Efficiency

Using our Dynamic Cavity Layout (DCL) software, we calculate:

• Optimal shrinkage compensation (0.4-1.2% based on material)
• Minimum safe distances between
• Example: 12mm nozzle → 30mm cavity spacing
• Thermal expansion buffers (ΔL=α×L×ΔT)

Our 4-cavity production molds regularly achieve <2% weight variation across all cavities through this precision spacing.

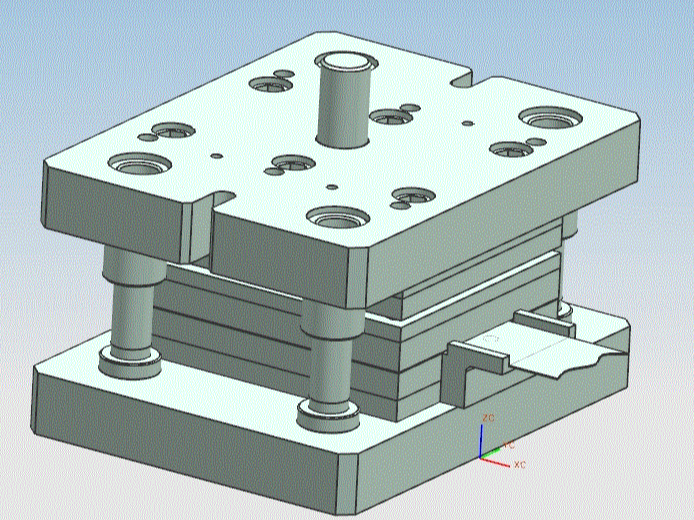

4. Mold Base Architecture: Engineered for Longevity

JBRplas mold bases follow strict design protocols:
plaintext Core Size Expansion: +25mm per side
Edge Clearance: ≥10mm from return pins
Ejector Zone Buffer: ±5mm safety margin

These parameters ensure compatibility with our modular cooling systems (4-6 independent circuits) and quick-change insert platforms.

5. Validation: Where Theory Meets Reality

Before releasing any design, we conduct:

• Moldflow simulations (95%+ fill balance accuracy)
• DFM checks against our 150-point inspection checklist
• Tooling trial reviews with production engineers

Our recent medical device mold project achieved first-shot success with 0.003mm dimensional tolerance through this rigorous validation process.

Why JBRplas Delivers Unmatched Mold Performance

✅ 20-Year Technical Legacy: 850+ successful mold projects across 12 industries
✅ Smart Manufacturing Integration: IoT-enabled molds with real-time performance tracking
✅ Cost-Saving Innovations: 15-30% cycle time reduction through optimized thermal management
