Engineering-Focused Technical Profile – Distribution Box Mold & Injection Capabilities
By AriDecember 12th, 2025331 views

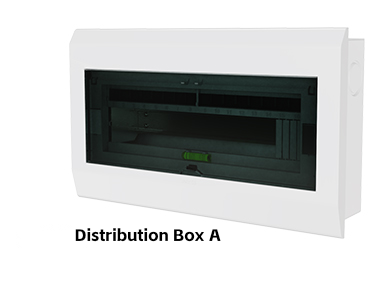

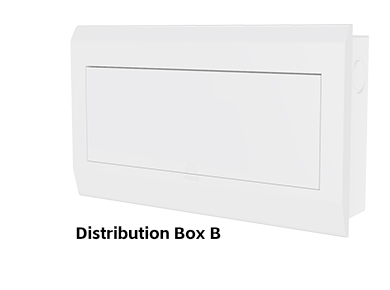

JBRplas provides end-to-end engineering support for plastic distribution box enclosures, covering tooling design, structural optimization, material selection, injection molding, and long-term production stability. Our experience includes multi-part housings for European, Middle Eastern, and Southeast Asian electrical standards.
Tooling Engineering
• DFM delivery within 48–72 hours, including parting line design, undercut analysis, draft optimization, and gating strategy • Moldflow simulations for weld line prediction, filling balance, warp tendency, and cooling efficiency • Cooling channel design optimized for thick-wall PC housings to minimize differential shrinkage and hinge deformation • Ejection system engineering for large flat parts to avoid shear marks and maintain surface uniformity • Mold structures: 2-plate, 3-plate, hot runner (Yudo / Synventive), valve gate options for cosmetic surfaces • Mold steel selection based on material shrinkage and required mold life: S136 for transparent PC windows, NAK80 for textured covers, 718H/H13 for large structural bases • Dimensional stability engineering for clip-fit areas, hinge pins, and snap-fit retention ribs
• Mold lifetime engineering: up to 1M+ cycles depending on steel hardness and maintenance intervals
Injection Molding Engineering
• Machines: 80T–470T, optimized for large footprint PC/ABS frames and deep-cavity bases • Material expertise: – PC / ABS for V-0 housing applications – PC (clear) for transparent inspection windows – PC+ABS for better toughness/heat resistance in hot regions (MENA, Southeast Asia) – PA66+GF for internal brackets requiring rigidity + electrical isolation • Process control for thick-wall PC components: slow-speed packing, multi-stage holding pressure, and controlled mold temperature (80–110°C) to reduce birefringence and sink marks • Warpage control: balanced runner layout, symmetric gate placement, optimized cooling circuit, and packing curve adjustment • Color stability engineering: ΔE < 0.8 across batches for RAL-coded white and grey housings • High-precision tolerance for assembly: – Clip engagement tolerance ±0.05–0.08 mm – Hinge pin concentricity < 0.10 mm – Window frame flatness < 0.30 mm for sealing performance
Structural & Assembly Engineering
• Design support for IP40 / IP55 / IP65 sealing structures (gasket grooves, labyrinth joints) • Reinforcement rib optimization to reduce material usage without compromising stiffness • Snap-fit stress analysis to prevent brittle failures in V-0 materials • Compatibility engineering for DIN rail mounting and regional standards (IEC60898, etc.) • Support for UL-related requirements: CTI ratings, flammability grade verification, glow-wire compatibility
Quality Engineering & Validation
• Full CMM dimensional inspection for critical characteristics • Mechanical testing: impact resistance, hinge fatigue cycles, clip retention force • Heat deformation testing for components installed in high-temperature environments (35–55°C ambient) • UV aging tests for outdoor models (Q-SUN / UVA340) • Incoming resin verification: MFR consistency, moisture control for PC/ABS/PC
Production Reliability
• Internal mold maintenance schedule based on cycle count & resin type • Batch traceability for resin lots and process parameters • Long-term stable supply for customers requiring high-volume enclosure production
JBRplas is capable of supporting engineering-driven distribution box projects requiring high dimensional accuracy, stable V-0 materials, and long-life production tooling. Engineering drawings or 3D files can be evaluated within the same day.
