The structural performance of an Electronic Shelf Label (ESL) depends heavily on the precision and stability of the injection mold. Waterproof rating, drop resistance, dimensional stability, and screen assembly yield all originate from mold design decisions made at the earliest stage.
For manufacturers, superior mold design reduces cycle time, minimizes warpage, ensures tight tolerance around the e-ink display, and prevents long-term failures in retail environments.

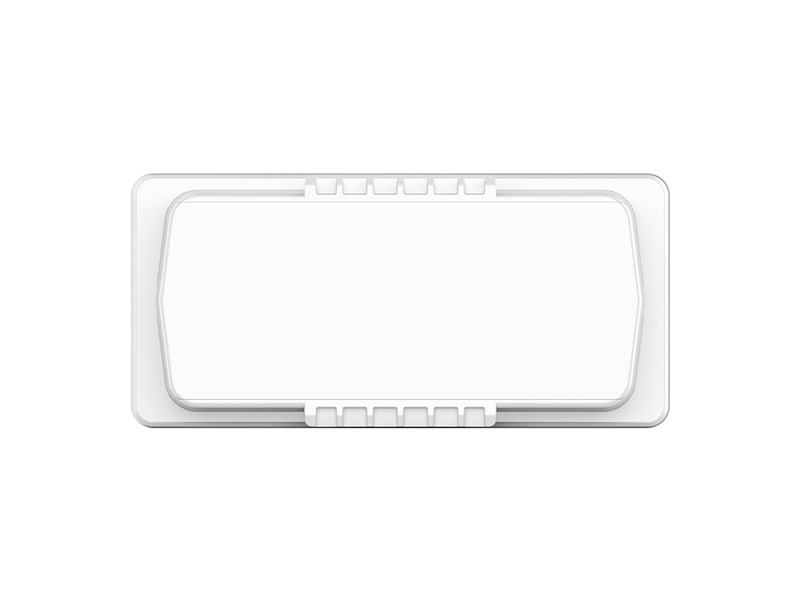

2. Core Requirements of ESL Housings
ESL enclosures are not standard electronic housings. They must deliver:
• IP65–IP67 waterproof performance • Drop and impact resistance for supermarket usage • Ultrathin dimensions to fit shelves • Precise fit of E-Ink display, MCU, antenna, and battery • Long-term UV resistance in open retail areas • Consistent assembly torque and clip strength
These requirements push mold design toward tighter tolerances and higher gate, vent, and cooling accuracy.
3. Key Mold Design Considerations for ESL Housings
3.1 Parting Line Optimization
The parting line must avoid display and logo areas, and remain hidden along edges to ensure:
ESL housings are thin and flat; improper parting line selection can lead to flash along the display window edge, affecting water resistance and assembly appearance.
3.2 Gate Design (Gate Type & Location)
Gate design directly affects warpage, flow balance, and the surface quality around the display frame.
Common options: • Sub-gate (tunnel gate) for small ESL housings • Edge gate for larger sizes (2.9", 4.2") • Hot runner for stable flow and reduced runner waste
Design goals: • Avoid gate marks in visible areas • Ensure balanced flow to prevent short shots at thin ribs • Reduce weld lines that weaken waterproof structures
Critical structures include: • double-stage sealing lips • TPE overmolding zones • O-ring or gasket channels • tight snap-fit accuracy
Tolerance must be controlled within ±0.03–0.05 mm in sealing areas to ensure consistent IP performance.
3.4 Warpage Control for Thin-Wall Housings
Typical ESL wall thickness：0.9–1.3 mm Thin walls and long flow paths increase the risk of warpage.
Mold design controls: • optimized cooling channels near the display frame • uniform wall thickness • moldflow simulation to verify warpage trend • use of steel inserts to stabilize critical areas • shorter flow length/width ratio via gate optimization
Well-controlled warpage reduces the risk of screen pressure marks and battery misalignment.
3.5 E-Ink Display Fit Area
The display window area requires:
• micro-ribs for anti-warping • tight flatness tolerance • recessed pockets for screen protection • smooth surface to avoid LCD/E-Ink damage
The mold must ensure consistent cavity temperature to prevent deformation and uneven shrinkage.
3.6 Slide & Lifters for Buttons, Latches, Waterproof Features
Slides must be designed with: • reliable wear resistance (SKD61 / H13 steel) • precise guiding to avoid flash on sealing areas • proper lubrication channels
3.7 Texture & Surface Finishing
Retail environments expose ESL housings to scratches, UV, and oil contact.
Surface finishing recommendations: • MT-11010 / MT-11020 for standard matte • fine spark texture for anti-scratch • polished A-2 / A-3 for display window areas
Texture depth must match shrinkage characteristics of ABS / PC+ABS to avoid uneven surfaces.
3.8 Mold Steel Selection
Because ESL volumes are typically high (100k–3M pcs per year), mold steel must support long-term durability.
• Exterior dimensions：±0.05–0.10 mm • Display frame：±0.03–0.05 mm • Battery holder：±0.03 mm • Antenna fixed area：±0.05 mm
Most tolerance failures during mass production come from: • uneven cooling • insufficient venting • incorrect gate balance • mold deformation after long-term use
Cavity planning affects unit price and Mold Return on Investment (ROI).
Typical ESL cavity choices (front + back cover):
• 2-cavity for prototypes, small batches • 4-cavity for mid-volume (50k–150k/year) • 8-cavity for mass production (200k–500k/year) • 16-cavity for ultra-high-volume retailers
More cavities reduce part cost but push mold prices to USD 25,000–50,000.
6. Moldflow Simulation as a Mandatory Step
Professional ESL suppliers always run moldflow before starting steel cutting.
Simulation analyzes: • filling pattern • weld line locations • warpage deformation • pressure distribution • cooling uniformity
This prevents costly mold modifications and protects project timeline.
7. Design for Assembly (DFA)
Because ESLs are assembled with e-ink screens, PCBs, antennas, and batteries, DFA considerations include:
• ergonomic snap fits for automated assembly • rib design that avoids pressing the screen • sufficient room for antenna tuning • minimized screw count to speed assembly • consistent tolerance stack-up across front/back housings
A stable, waterproof, and aesthetically clean ESL housing depends on airtight mold design. From gate design to waterproof sealing structures, every detail contributes to the final product performance. High-quality molds not only improve ESL reliability but also reduce long-term manufacturing cost and scrap rates.
