ESL Injection Molding Defects and Solutions: Ensuring High-Reliability E-Label Housings
By AriDecember 2nd, 2025316 views

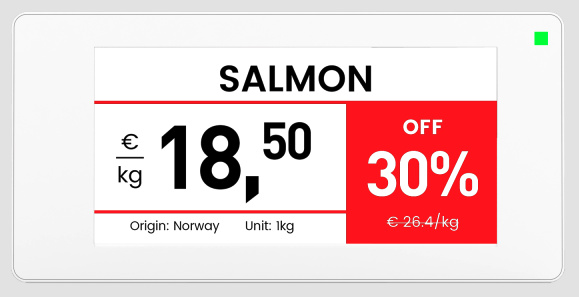

Electronic Shelf Labels (ESL) require durable, thin-wall, and dimensionally stable plastic housings to protect sensitive components such as e-ink displays, batteries, antennas, and PCBs. Because ESL devices are small, compact, and often exposed to harsh retail environments, any injection molding defect can directly impact assembly fit, sealing performance, RF performance, or long-term reliability.
This article outlines the most common ESL injection molding defects and provides engineering-level solutions to help OEMs and suppliers ensure consistent product quality.
1. Warpage and Deformation
Why it happens
ESL housings typically use thin-wall structures (0.6–1.0 mm) and long flow lengths, which increase residual stress. Temperature imbalance, uneven cooling, or improper gate positioning can easily cause deformation.
Risks
• Misfit with display or PCB • Poor sealing for IP rating • Visible bending after assembly
Solutions
• Optimize cooling channel layout (uniform cooling, balanced temperature zones) • Use mold-flow simulation to refine gate position and reduce flow-induced stress • Increase structural ribs or optimize rib-to-wall thickness ratio • Adjust packing pressure and time to minimize internal stress • Choose materials with lower shrinkage such as ABS+PC blends
2. Short Shots / Incomplete Filling
Why it happens
Thin sections, long flow paths, and micro-features in ESL housing designs make complete filling challenging, especially for snap-fits, button areas, battery slots, or sealing walls.
Risks
• Missing features • Weak snap-fit retention • Functional failure during assembly
Solutions
• Increase melt temperature or injection speed • Add or relocate gates to reduce flow length • Enlarge venting locations to avoid trapped air • Avoid overly thin edges; keep minimum wall thickness above 0.6–0.8 mm • Use higher-flow materials (e.g., high-fluidity PC/ABS)
3. Sink Marks
Why it happens
ESL housings often integrate ribs and battery compartments, which create thicker zones. These areas cool slower, causing surface sinks.
Risks
• Visible surface defects • Weak areas near structural features
Solutions
• Maintain rib thickness at 50–70% of wall thickness • Use uniform wall design to reduce thick sections • Increase packing pressure and time • Improve local cooling around thicker areas • Consider tooling inserts for high-mass regions
4. Flash
Why it happens
Thin-wall ESL parts require high injection pressures, which may force plastic into mold parting lines or ejector pin areas if the mold is not rigid or properly aligned.
Risks
• Housings cannot close tightly • Poor sealing and poor IP rating • Extra manual trimming cost
Solutions
• Increase mold clamping force or improve mold rigidity • Inspect and correct parting line flatness • Reduce injection pressure after gate freeze • Add parting-line locks or improve tooling alignment
5. Weld Lines
Why it happens
Multiple flow fronts meet around openings (display window, buttons, battery zones), creating weak weld lines especially in thin-wall designs.
Risks
• Crack initiation at weld lines • Poor appearance • Reduced strength near snap-fits
Solutions
• Move gates to avoid meet points in high-stress areas • Increase melt and mold temperature to improve fusion • Increase injection speed for better flow front bonding • Add local flow channels to shift weld line locations
Fast injection into thin sections or material instability can create streaks or flow turbulence on the surface.
Risks
• Poor appearance • Visible marks through translucent materials
Solutions
• Adjust injection speed profile (slower initial speed) • Increase melt temperature for smoother flow • Polish mold surfaces in cosmetic areas • Add flow leaders or gating adjustments
7. Dimensional Inaccuracy / Shrinkage Variation
Why it happens
ESL housings require tight tolerances for display fit, battery contact alignment, and sealing structures. Even small variations cause assembly issues.
Risks
• Display jamming or loose fit • Battery contact misalignment • Gasket compression inconsistency
Solutions
• Apply mold-flow simulation to predict shrinkage • Use stable materials such as PC/ABS • Strengthen mold steel selection for dimensional stability • Control process parameters to reduce variation • Add CPK control for mass production
8. Poor Snap-Fit Strength or Cracking
Why it happens
Snap-fit hooks in ESL housings are thin and stress-sensitive. Incorrect draft angles, sharp corners, or weak material can cause cracks.
• Optimize snap-fit geometry (rounded roots, proper draft) • Maintain rib-root thickness and fillet radius • Switch to ductile materials (PC/ABS or PA+Glass if required) • Use mold-flow simulation to evaluate stress concentration
How to Ensure Long-Term Reliability of ESL Plastic Housings
To ensure consistent quality, ESL manufacturers should establish the following control measures: • Mold-flow simulation before tool fabrication • Controlled cooling design for deformation control • Material selection based on shrinkage, impact resistance, and ESD performance • Strict dimensional tolerance management for display, battery, and sealing features • CPK process monitoring for mass production • Regular mold maintenance to avoid flash or alignment issues
With optimized mold design, stable injection parameters, and high-precision tooling, ESL housings can achieve the mechanical strength, dimensional accuracy, and long-term durability required for modern e-ink shelf labels.
Conclusion
ESL devices demand high-reliability plastic housings due to their compact structure, thin-wall design, and long-term use in retail environments. Understanding common injection molding defects—and applying engineering-driven solutions—allows manufacturers to minimize risk and maintain excellent product consistency.
A well-designed mold and controlled production process will significantly improve yield, reduce assembly issues, and enhance the overall performance of ESL products.
