Within the internal structure of modern robotic vacuum cleaners, plastic injection-molded parts play a crucial role. From the exterior housing to internal functional components, these seemingly ordinary parts directly determine the product's performance, reliability, and service life. This article will focus on the core injection-molded parts in robotic vacuum cleaners to analyze the precision design and manufacturing processes behind them.

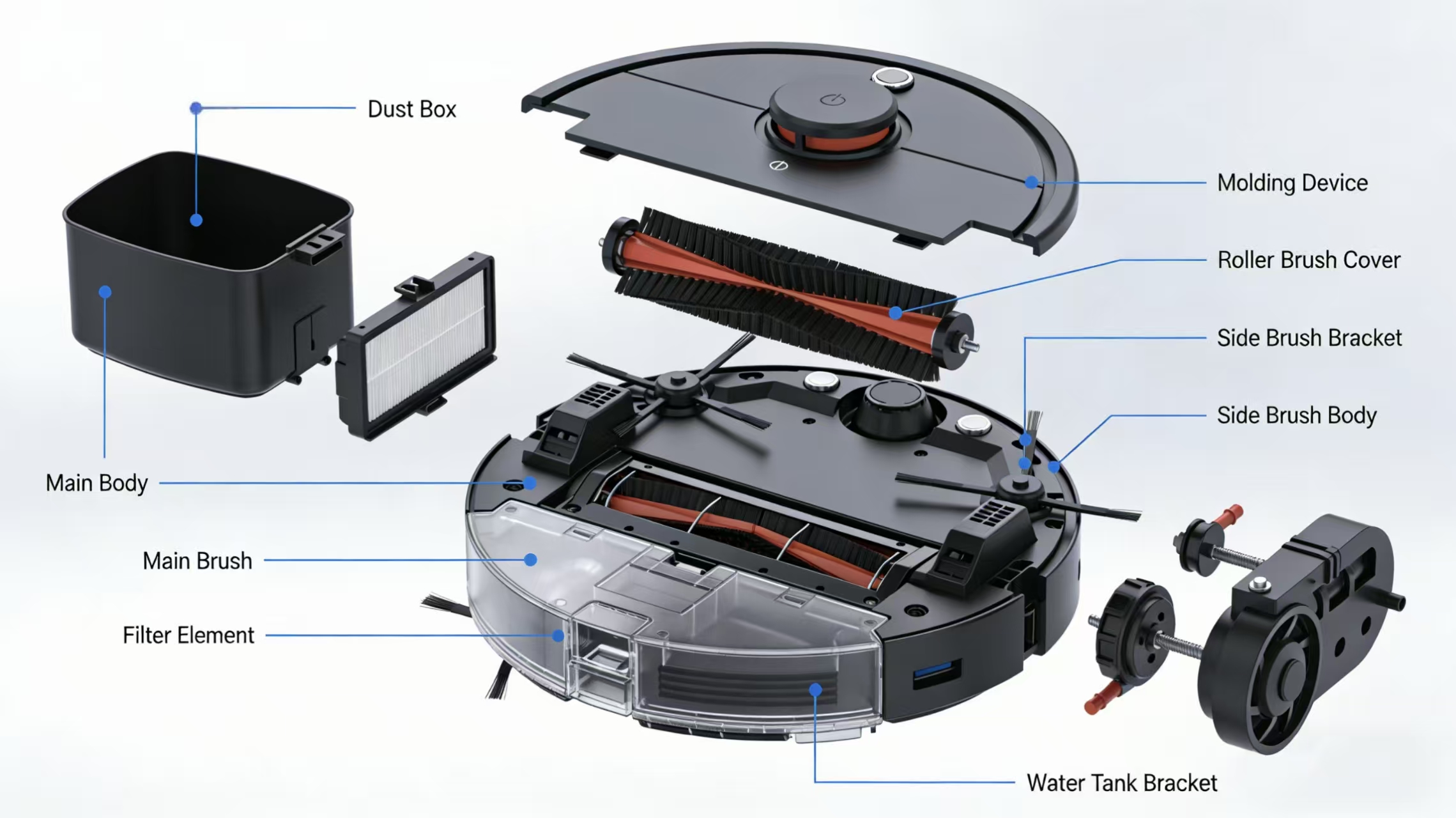

The core injection-molded parts in robotic vacuums mainly include the dustbin, roller brush cover, side brush mounts, water tank body, and various internal transmission structural parts. They are not only carriers for housing and transferring functions but must also possess high dimensional stability, excellent wear and chemical resistance, and structural strength for long-term use.
Dustbin: Requires a high level of sealability to prevent dust leakage, along with features for easy detachment and cleaning.
Roller Brush Cover: Must fit precisely to ensure hair does not tangle and airflow channels remain unobstructed.
Side Brush and Drive Structural Parts: Directly withstand mechanical impact and wear, demanding high material toughness and fatigue strength.
Water Tank: Involves liquid sealing, requiring extremely high dimensional accuracy and resistance to environmental stress cracking.
Excellent injection-molded parts begin with precision engineering design. The following aspects are particularly critical in the design of these parts for robotic vacuums:
1. Structural Optimization Based on CAE Simulation
Computer-Aided Engineering analysis predicts part performance under stress, heat, and assembly before mold development. This allows for pre-optimization of wall thickness, rib layout, and snap-fit design to avoid deformation or cracking caused by stress concentration.
2. Rigorous Tolerance and Fit Design
The internal space of robotic vacuums is compact, with components often requiring tight fits or interlocking movements. Dimensional tolerances for critical positions often need to be controlled within ±0.05mm to ensure smooth assembly, quiet operation, and effective sealing.
3. Application of Materials Science
Selecting specialized materials for different part functions:
Housings and dustbins often use high-flow, high-rigidity PP or ABS materials, balancing appearance and strength.
Gears and other transmission parts commonly employ wear-resistant POM (Polyoxymethylene).
Transparent water tanks require high-clarity, hydrolysis-resistant PC or modified PP materials.
4. Design for Manufacturing and Assembly
The design must fully consider mold manufacturability, stability of the injection molding process, and ease of subsequent assembly, thereby enhancing efficiency and yield from the outset.
Precision design must be realized through equally precise manufacturing processes.
1. High-Precision Mold Manufacturing
The mold is the "mother" of the injection-molded part. Utilizing high-speed CNC machining, mirror-finish EDM, and precision grinding ensures cavity dimensional accuracy reaches the micron level. High-quality mold steel and professional heat treatment guarantee mold stability over hundreds of thousands of injection cycles.
2. Scientific Process Control
Precise control of injection molding parameters (temperature, pressure, speed, cooling time) is the core of ensuring part dimensional stability and internal quality. Employing in-mold pressure sensors and intelligent temperature control systems enables fine management of the process window, reducing batch-to-batch variation.
3. Strict Quality Inspection System
A closed-loop quality assurance system is formed, from inspection of raw material pellets, to full-dimension measurement of first articles (using Coordinate Measuring Machines), and regular SPC (Statistical Process Control) during production. Key functional parts also require specialized testing for durability, sealability, etc.
Although small, the injection-molded parts in robotic vacuum cleaners are composite products that integrate materials science, precision design, advanced manufacturing, and rigorous quality control. The improvement in their precision and durability epitomizes the overall iterative upgrading of robotic vacuum cleaner products. It demands that manufacturers possess not only precision equipment but also profound industry experience and continuous technological integration capabilities.
In this regard, JBRplas, as a solution provider with years of deep expertise in the field of precision injection molding, leverages its profound understanding of the home appliance industry, particularly the cleaning appliance sector. Our company offers clients full-chain services from material selection, structural design optimization, precision mold manufacturing to automated production. JBRplas is consistently committed to perfecting the precision and reliability of every injection-molded part, helping robotic vacuum cleaner brands deliver higher quality and more durable products to end consumers, thereby building core product competitiveness through attention to detail.
