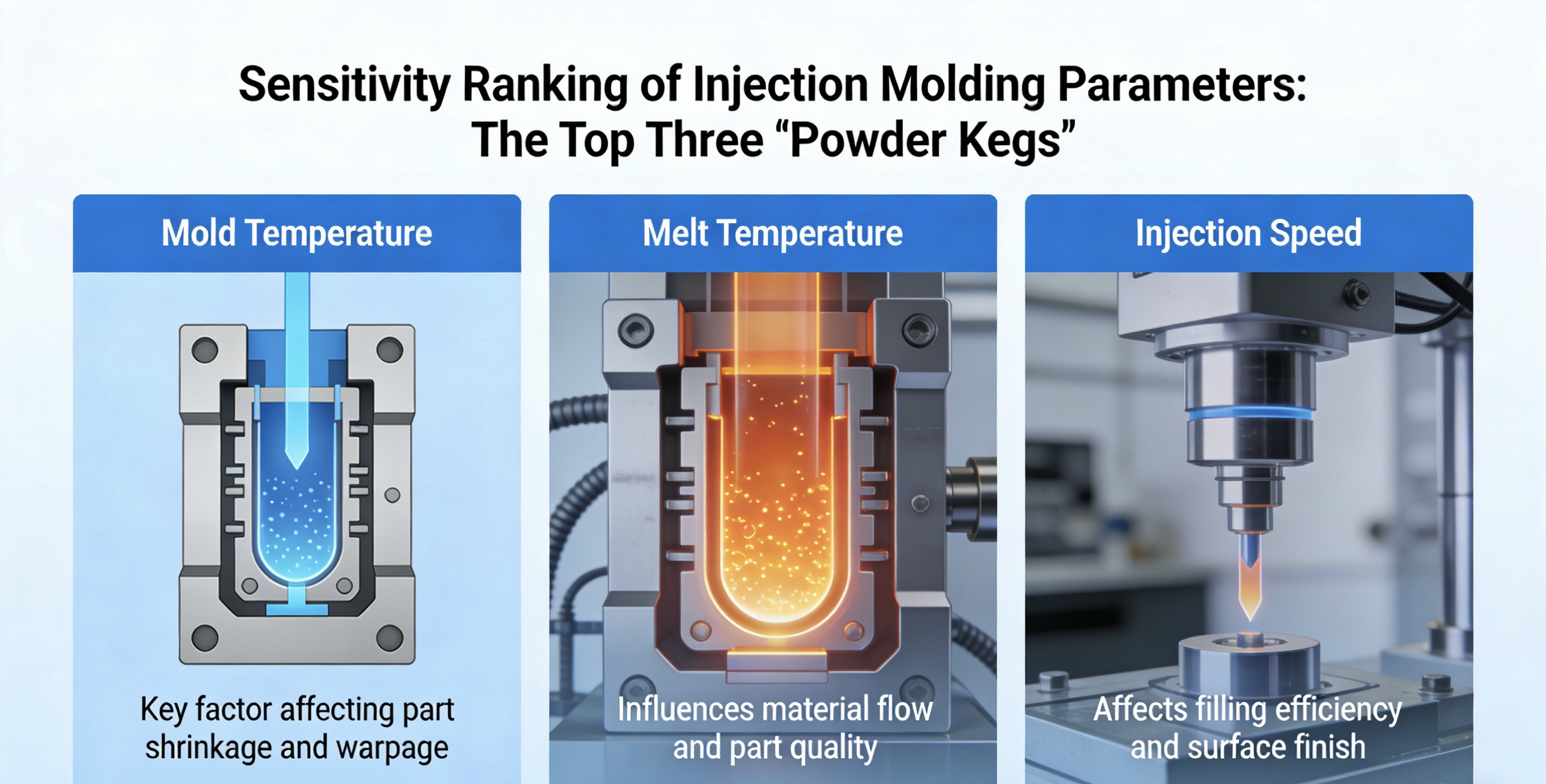

Sensitivity Ranking of Injection Molding Parameters: The Top Three "Powder Kegs"

In injection molding process tuning, not all parameters are equally important. Some require cautious, meticulous adjustments because even minor changes can drastically affect product quality. I refer to these as "Tier 1" or "powder keg" parameters.

Parameters in this tier are extremely sensitive and must be prioritized for stabilization and control.

• Sensitivity Index: ★★★★★

• Why it's the most sensitive?
  Mold temperature directly determines the cooling rate and state of the plastic inside the cavity.

  • ±2°C: Can noticeably alter product gloss, making weld lines more or less visible.

  • ±5°C: For semi-crystalline materials like PP or PA, shrinkage can vary by over 10%, leading directly to dimensional failure.

  • ±10°C: Can cause ejection issues, surface splay, or cold slugs.

• Core Impact: Dimensional stability, appearance, and internal stress of the part.

• Tuning Mantra: "Stabilize mold temperature first, then tune other parameters. Fluctuation is more dangerous than the setpoint itself."

• Sensitivity Index: ★★★★☆

• Why it's sensitive?
  Melt temperature dictates the fluidity and molecular state of the plastic.

  • ±5°C: Can significantly change melt viscosity, affecting fill consistency and potentially causing sudden flashes or short shots.

  • ±10°C: For transparent materials like PC or PMMA, appearance issues (splay, bubbles) worsen immediately. For heat-sensitive materials like some PAs or PVC, degradation may begin, causing black specks or gas.

• Special Notes:

  • ABS: Melt temperature greatly impacts weld line strength, with an optimal window often as narrow as 15–20°C.

  • POM (Acetal): Extremely sensitive to overheating, prone to decomposition and pungent odors.

• Tuning Focus: Monitor actual temperature, not just the setpoint, especially at the nozzle and metering zones.

• Sensitivity Index: ★★★★

• Why it's sensitive?
  Speed controls the impact force and shear heat of the melt entering the cavity.

  • Too Fast: Trapped air (burn marks), flow marks, high molecular orientation leading to warpage.

  • Too Slow: The melt front cools down, causing cold slugs, prominent weld lines, or insufficient fill.

• Golden Rule: Use a "Slow-Fast-Slow" multi-stage speed profile.

  • Start Slow: Pass through the gate smoothly and enter the cavity steadily.

  • Middle Fast: Fill the main body quickly to prevent cold material.

  • End Slow: Most critical! Slow down to fill the last portion, allowing time for air to vent out, preventing flash and air traps.

• Core Impact: Surface appearance, internal quality, and venting effectiveness.

Summary: Priority Order for Process Tuning

When part quality issues arise, prioritize checking and adjusting these three parameters:

1. First, verify and stabilize mold temperature. Check if cooling channels are clear and mold temperature controllers are stable.

2. Second, verify melt temperature. Ensure actual temperature is accurate and within the material's recommended range.

3. Finally, optimize the injection speed profile. Focus on adjusting the deceleration setting for the final fill stage.

Remember: Mastering these three "powder kegs" solves over 80% of variability issues in injection molding. Adjustments to other parameters are often fine-tuning performed on this foundation of core stability.
