If you’ve ever needed a ballpark figure for an injection mold—fast—you’ve probably heard of the “Bounding Box Method.” It’s a back-of-the-envelope calculation widely used in the mold-making industry to generate a rough quote before detailed design begins.
How It Works (The 30-Second Version)
The idea is simple:
Mold Cost ≈ Length × Width × Height × Coefficient (K)
1. Determine the “Box” Size (L × W × H):

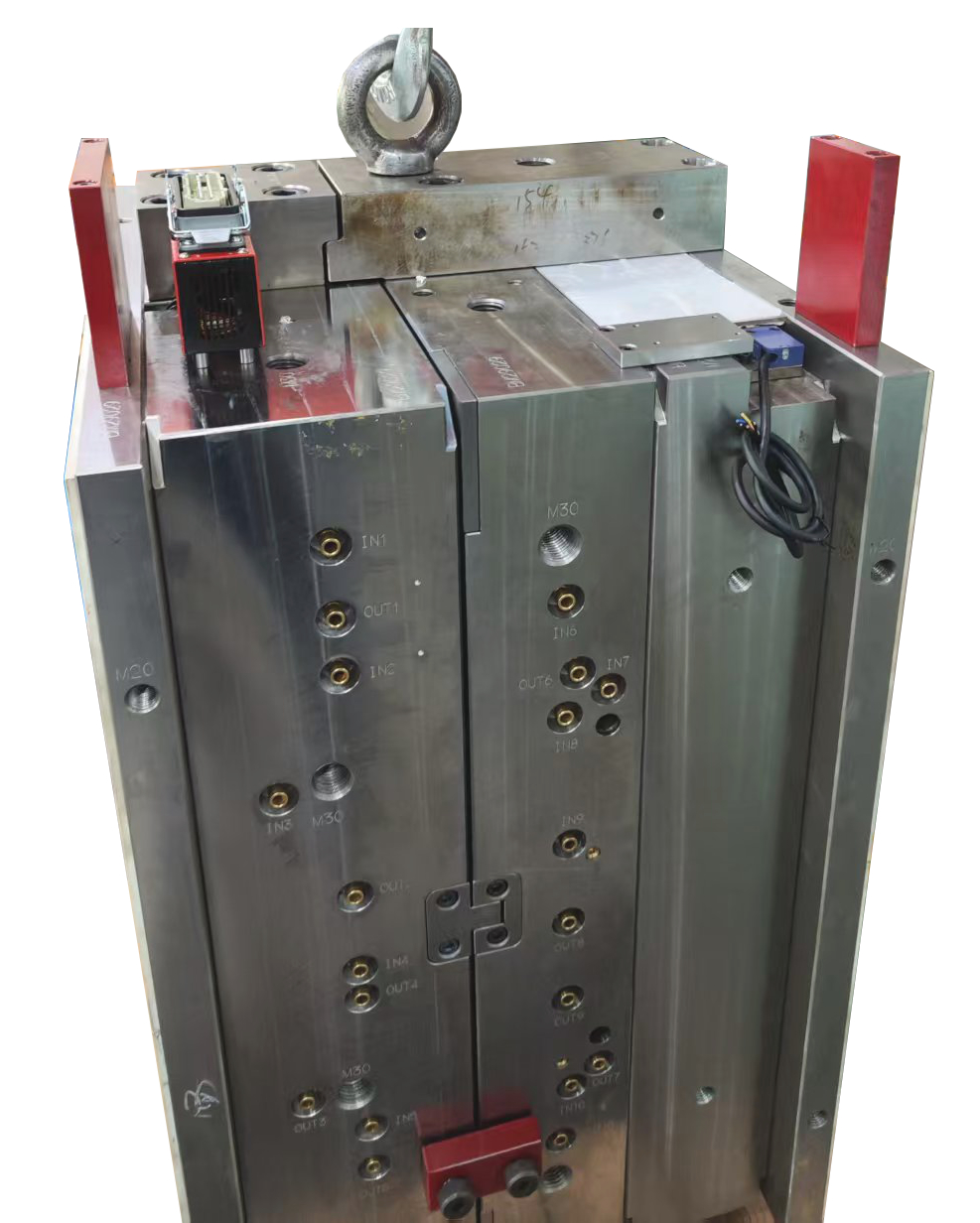

This isn’t the product size. It’s the estimated size of the standard mold base (the “frame” of the mold) needed to house the part(s), runners, and mechanisms. An experienced engineer can eyeball this from a 3D model.
2. Choose the Coefficient (K):
This is where the art lies. K is an empirical value (e.g., USD 0.05 – 0.15 per cm³) that bundles in complexity, materials, and regional labor rates.
Simple mold (PP, no sliders): Low K
Complex mold (PEEK, multiple sliders, high polish): High K
3. Add Critical “Extras”:
For a more realistic estimate, experienced estimators add costs for specific features:
Final Estimate = (L×W×H×K) + (Cost of Sliders) + (Cost of Hot Runner) + (High Polish Surcharge) + ...
Why It’s Useful (The Pros)
Speed: You get a cost magnitude (“$10k-ish” vs. “$100k-ish”) in minutes, not days.
Early-Stage Benchmarking: Perfect for project feasibility studies, internal budgeting, or comparing rough concepts.
Common Language: Its greatest value is that it lets you and a mold engineer speak the same language instantly when reviewing a product model. You can establish a credible budget range for discussion before a single detail is designed.
Where It Falls Short (The Cons)
Ignores Complexity: The method is blind to what’s inside the box. A mold with 16 cavities and 8 sliders will cost far more than a single-cavity mold in the same-sized box, but the basic formula won’t show it.
The “K” Factor is Fuzzy: Choosing K relies heavily on personal experience. An inexperienced person can be off by 100% or more.
Not for Final Quotes: It completely misses the detailed cost drivers: specific steel grades, machining hours (CNC, EDM, polishing), and purchased components (brand of hot runner, ejector pins, etc.).
The Bottom Line
Treat the Bounding Box Method as a conversation starter, not a closing argument.
It’s an excellent tool for rapid alignment and setting expectations with your engineering or procurement team. However, true pricing authority always lies in the detailed mold design drawings and the precise hour-by-hour machining quote that follows.
Use it to get in the right ballpark—then send your 3D files to a reputable mold maker for the real game.
