The valuation of plastic molds is indeed one of the trickiest aspects of the mold industry—quote too high and you lose the order, quote too low and you take a loss, and quote too slowly and the client walks away. It requires predicting complex processing costs and potential risks over the next two months in an extremely short time (sometimes just a few hours), based solely on a simple product drawing (or even a conceptual sketch).

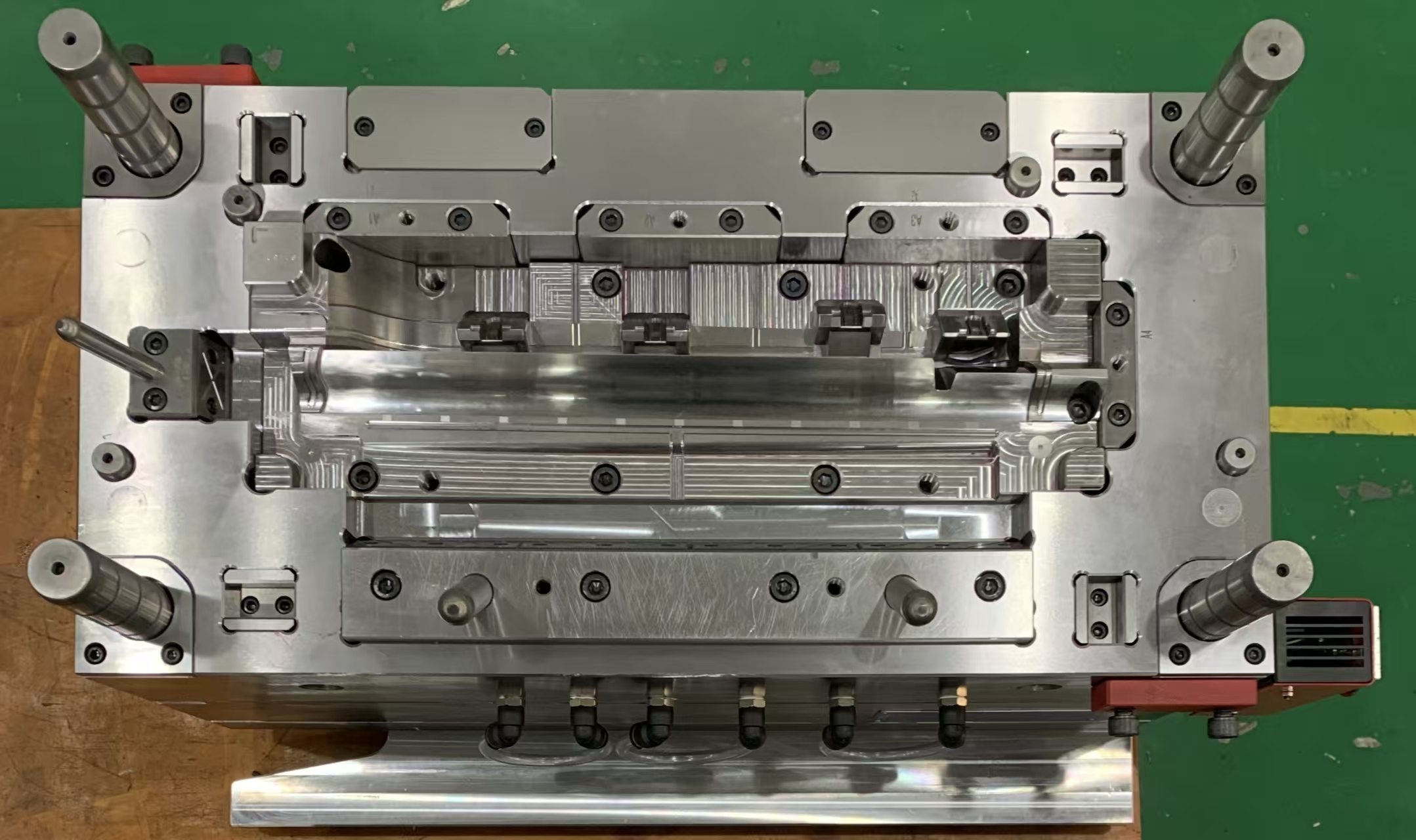

Below is an analysis of the solutions for achieving fast and accurate plastic mold valuation, along with the core challenges involved. mold

I. Mainstream Solutions for Fast and Accurate Valuation

Currently, the industry primarily addresses this issue from three dimensions: "process standardization," "data accumulation," and "technological tools."

1. The "Mold Base/Standard Parts" Quick Quotation Method

This is the most common method used by small and medium-sized mold factories, suitable for molds with conventional structures.

Logic: Mold cost mainly consists of material costs (mold base, steel, standard parts) + processing costs + design and assembly fees.
Operation:
- Determine Size: Quickly estimate the required mold base size (e.g., 3030, 4040) based on the product dimensions and layout.
- Check Prices: Standard parts suppliers (for mold bases, hot runners, ejector pins, etc.) have fixed price lists that can be checked directly.
- Calculate Steel: Compute the volume of the front and rear mold inserts and multiply by the steel unit price.
Advantages: Fast speed and has a basis to follow.
Disadvantages: Large errors for molds with special structures or complex cavities.

2. Feature Analogy Method and Database Accumulation

This is the most common method used by experienced masters and is also the foundation for current digital quotation systems.

Logic: No two molds are exactly alike, but many share similar structures.
Operation:
- Build a Historical Database: Input data from previously made molds into the system (e.g., product dimensions, mold weight, price, actual working hours).
- Feature Matching: When a new product enters the database, the system matches it with the 3-5 most similar historical molds based on dimensions, complexity (presence of sliders, lifters), and precision requirements.
- Weighted Average: Generate a reference quotation based on similarity weights.
Advantages: As long as the database is large and accurate, the precision will continue to increase.
Challenges: Data accumulation takes time and requires the company to have strong information management capabilities.

3. The "Core/Cavity Volume" Weight-Based Quotation Method

This is a fast quotation method favored by large international corporations and big mold factories, as it avoids cumbersome detailed calculations.

Logic: Mold price ≈ Total mold weight × Unit price coefficient. This unit price coefficient includes design fees, profit, trial run fees, etc.
Core Formula:
1. Calculate the product's projected area and determine the number of cavities.
2. Estimate the size and thickness of the mold inserts (core and cavity).
3. Deduce the mold base size based on the inserts.
4. Calculate the total weight (mold base steel weight + insert steel weight - weight of material removed by pockets/holes).
Advantages: Fast speed. As long as the coefficient is set reasonably, it can cover most costs.
Disadvantages: Adjusting the coefficient for high-precision molds or molds with many sliders is more complex.

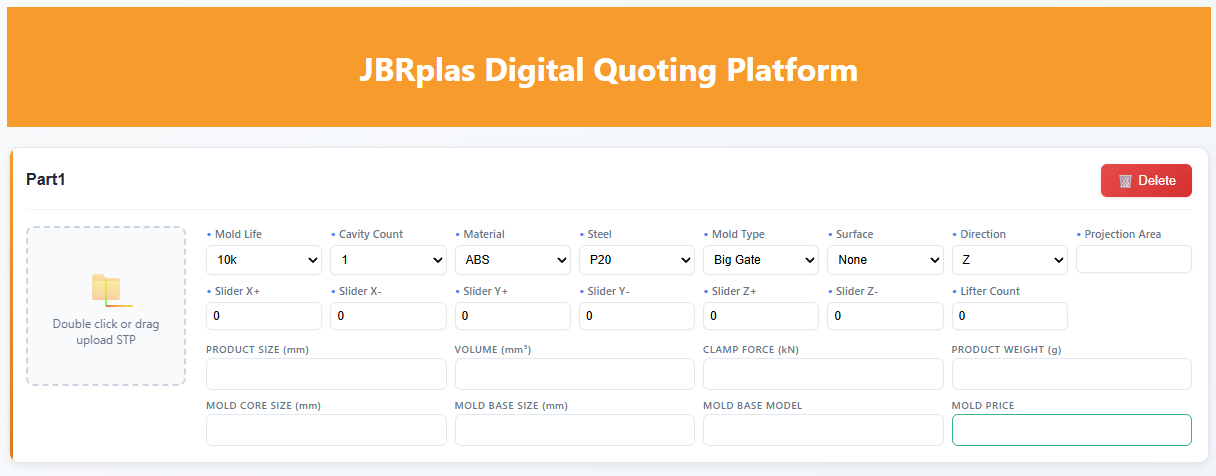

4. Automated Quotation Software

With the development of AI and digitalization, specialized mold quotation systems have emerged.

Operation: Import a 3D drawing (preferably in STP format) -> The software automatically identifies length, width, height, undercuts (number of sliders/lifters), and appearance requirements -> Background algorithms automatically calculate processing man-hours -> Output a quotation sheet.
Representative Solutions: Secondary development plugins based on Siemens NX or Creo, as well as independent SaaS quotation platforms.
Advantages: Reduces interference from human emotions and helps avoid missing items.
Disadvantages: High initial cost for software and implementation, and requires extremely high drawing standardization.
