What types of thin-walled parts are particularly challenging to manufacture?
By AriFebruary 7th, 2026275 views
This is an excellent question that touches on a core challenge in injection molding. Simply put, the thinner the wall, the larger the area, and the more complex the structure of the thin-walled part, the more troublesome it is to manufacture. Such products are commonly found in consumer electronics, medical devices, and lightweight automotive components (e.g., LED lamp covers, mobile phone frames, heart stent housings, connectors, etc.).

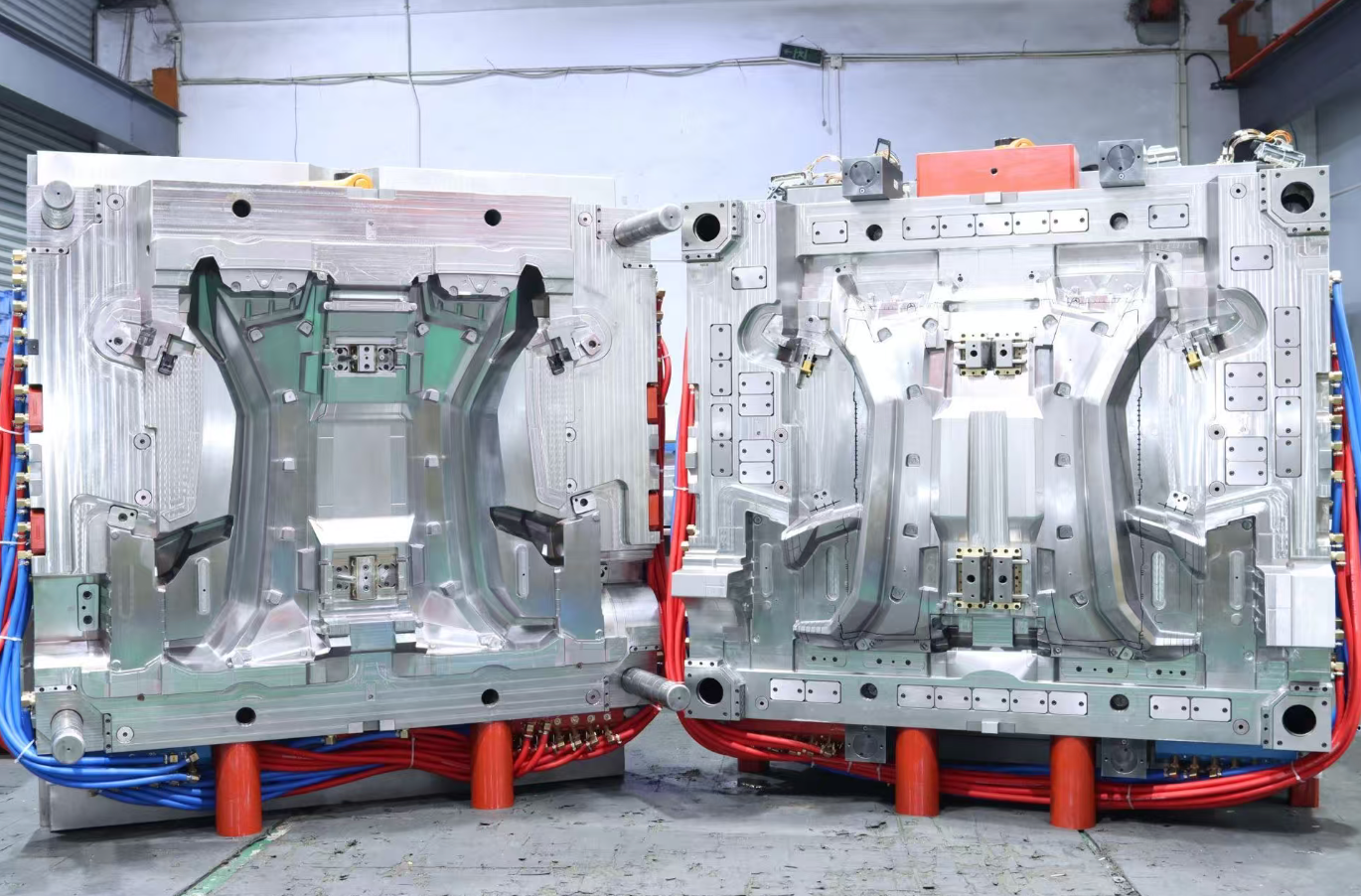

Extremely High Cavity Pressure: Thin walls mean extremely high flow resistance for the molten material. To fill the entire cavity before the melt solidifies, very high injection pressure and speed are required. This demands that the mold itself must have extremely high rigidity and strength; otherwise, it can lead to mold deformation, flash, or even cracking.
Complex and Precise Venting System: With high-speed injection, if the air in the cavity cannot be expelled quickly enough, it will be compressed and generate high temperatures, causing part burning or short shots. Thin-wall molds require numerous and deep venting channels, and may even use special materials like porous steel. Their machining and layout are highly demanding.
Stringent Cooling System Design: Thin-walled parts cool quickly, but to maintain high production efficiency, extremely efficient and uniform cooling is necessary. The cooling channels must be designed very close to the cavity surface and be evenly distributed. Any uneven cooling will lead to warpage. This significantly increases the complexity of mold design and machining.
Gating System Design: Traditional gates and runners can become bottlenecks. Fan gates, film gates, or hot runner systems are often required to ensure the melt can spread rapidly and uniformly across the cavity. Temperature control for hot runners must be very precise.
High Demands on Ejection System: Thin-walled parts have poor rigidity and are prone to deformation or damage during ejection. More ejector pins and more precise ejection sequences (using nitrogen springs or sequence valves) are needed, and the surface finish of the mold must be extremely high to reduce ejection resistance.
2. Factors in Mold Manufacturing
Extremely High Requirements for Cavity/Core Accuracy and Finish: Any minor scratch or tool mark can be replicated onto the part surface during high-speed injection. This often necessitates mirror-finish EDM and manual polishing to achieve an extremely high surface finish.
Stringent Requirements for Mold Steel: It is essential to use high-quality mold steel with high hardness, high thermal conductivity, high toughness, and high purity (e.g., specialty steels from Sweden/Germany like ASSAB, Daido). High hardness ensures no deformation under high pressure and wear resistance; high thermal conductivity enables rapid cooling; high purity ensures polishability and steel uniformity.
Difficulty in Machining Fine Features: Thin walls are often accompanied by micro-features like ribs and snap-fits. Machining these features in the mold (using small-diameter tools for milling, micro-EDM) is very challenging and prone to tool breakage and machining errors.
Deformation Control: During heat treatment and machining of the mold, controlling deformation caused by stress relief is critical. This is especially challenging for large thin-wall molds.
3. Factors in the Injection Molding Process
Requires Ultra-High-Speed, High-Pressure Injection Molding Machines: Standard machines cannot meet the demands. Dedicated thin-wall injection molding machines with sufficient clamping force, extremely fast injection speeds, and responsive controls are necessary. Injection speeds are often 5-10 times faster than conventional ones.
Extremely Narrow Processing Window: Parameters like temperature, pressure, and speed are highly interdependent. A slight fluctuation in any one parameter can lead to defects like short shots or flash. Maintaining process stability is extremely difficult.
High Requirements for Material Flowability: It is necessary to use engineering plastics with high flowability (e.g., high-flow PC, PA, PPS). These materials are typically more expensive and may sacrifice some mechanical properties.
High Demands for Temperature and Pressure Sensing: More sensors need to be placed within the mold to monitor cavity pressure and temperature in real-time for precise process control.
4. Factors Related to Material and the Part
Material Selection and Drying: High-flow materials are more sensitive to moisture and require strict drying procedures. Controlling the material's shrinkage rate is also crucial.
Stringent Part Quality Inspection: Defects in thin-walled parts (like minor sink marks, warpage, stress whitening) are more easily visible. Higher requirements for dimensional accuracy and appearance increase the difficulty and cost of quality inspection.
Summary
The manufacturing of thin-walled plastic molds is a systems engineering challenge. The difficulties are not isolated to a single step but run through the entire chain of design, manufacturing, material, and process. The core contradiction is: to fill an extremely narrow space with a high-viscosity melt in an extremely short time, using extremely high pressure and speed, while ensuring the part has precise dimensions, perfect appearance, and meets performance standards.
It's like demanding a speedboat to accelerate like an F1 car while being as precise and reliable as a Swiss watch. The underlying technical complexity and cost are naturally far higher than for conventional molds. Therefore, thin-wall injection molding technology is also regarded as a key indicator of a mold-making and injection molding company's technical capabilities.
