Troubleshooting PP Injection Molding Defects: Short Shots, Bubbles, and Whitening
By AriApril 18th, 20263 views

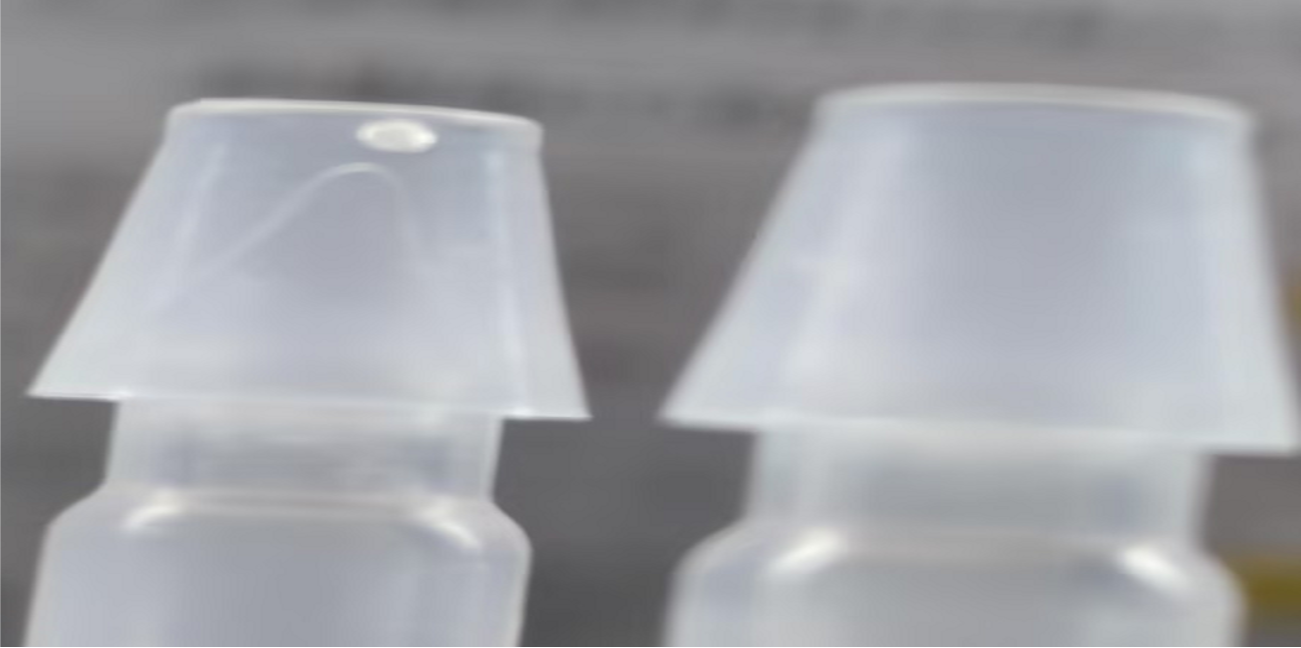

Polypropylene (PP) is a workhorse material in the plastics industry—valued for its chemical resistance, flexibility, and cost-effectiveness. However, like any injection molding process, working with PP comes with its own set of common cosmetic and structural defects. Three issues that often appear together or as symptoms of the same root cause are short shots (incomplete filling), bubbles/voids, and stress whitening.
If you're seeing these problems in your PP parts, here is a systematic breakdown of the causes and the actionable solutions to get your production back on track.
1. Short Shots: The Part Isn't Fully Formed
The Problem: The mold cavity is not completely filled, resulting in missing edges, rounded corners, or incomplete features.
Root Causes in PP Processing:
Insufficient Material Flow: The melt front freezes before the cavity is packed.
Inadequate Injection Parameters: Pressure, speed, or shot size is set too low.
Material Starvation: The barrel is running empty between cycles.
Solutions:
Adjust Injection Profile: Increase injection pressure and speed incrementally. PP is a semi-crystalline material; it requires sufficient velocity to fill the cavity before the melt cools against the mold wall.
Raise Melt Temperature: PP flows much better at the upper end of its processing window. Ensure the melt temperature is within the supplier's recommended range (typically 200-250°C depending on grade).
Check Cushion Position: Verify that there is a consistent melt cushion (typically 3-6mm) at the end of the screw stroke to ensure packing pressure can be transmitted.
2. Bubbles and Voids: Trapped Air or Gas
The Problem: Visible bubbles on the surface (blisters) or hidden voids inside the part wall. Often accompanied by splay marks.
Root Causes in PP Processing:
Poor Venting: Air is trapped in the cavity during injection and compressed against the plastic, preventing proper adhesion.
Moisture in the Material: While PP is generally considered non-hygroscopic (it doesn't absorb much water from the air), condensation on cold pellets or contaminated regrind can introduce moisture. That moisture turns to steam, creating bubbles.
Volatile Gases: Degradation of additives or colorants.
Solutions:
Improve Mold Venting: Clean the parting line vents and ensure they are deep enough for PP (approx. 0.02-0.03mm). Consider adding vacuum venting if the problem persists in thin-walled areas.
Dry the Material (The PP Exception): While pure virgin PP often runs without drying, if you are experiencing bubbles or splay, dry the material at 80°C for 2-4 hours. This removes surface condensation.
Reduce Injection Speed (at the gate): Sometimes bubbles are formed by "jetting" or turbulence that traps air. Slowing the fill speed through the gate area can allow air to evacuate smoothly ahead of the melt front.
3. Stress Whitening: The Cloudy, Weak Appearance
The Problem: The PP part turns opaque white or "blushes" around sharp corners, ejection pin marks, or thin sections. This indicates molecular orientation and micro-cracking (stress whitening).
Root Causes in PP Processing:
Rapid Cooling: The melt is quenched too fast, locking in high internal stress.
Over-Packing: Too much pressure during the packing phase stretches the molecular chains beyond their elastic limit.
Ejection Force: The part is too hot and soft or too cold and brittle when ejected, causing the pins to stretch the plastic.
Solutions:
Increase Mold Temperature: Cold molds cause PP skin to freeze instantly, leading to a brittle, white surface layer. Raising the mold temperature (even just 10-15°C) allows the polymer chains to relax and crystallize more uniformly.
Optimize Pack/Hold Pressure: Reduce the holding pressure slightly. The goal is to compensate for shrinkage without forcing extra material in that causes internal strain. Watch the part weight—if it stays the same with lower pack pressure, you were over-packing.
Adjust Cooling Time: Ensure the part is solidified enough to resist ejection forces, but not so cold that it becomes brittle. Avoid sharp corners in tool design—these are stress concentrators in PP parts.
By addressing these three factors systematically, you can significantly reduce scrap rates and improve the aesthetic and structural integrity of your PP injection molded parts.
