Weld Lines: The Silent Strength Killer in Injection Molding

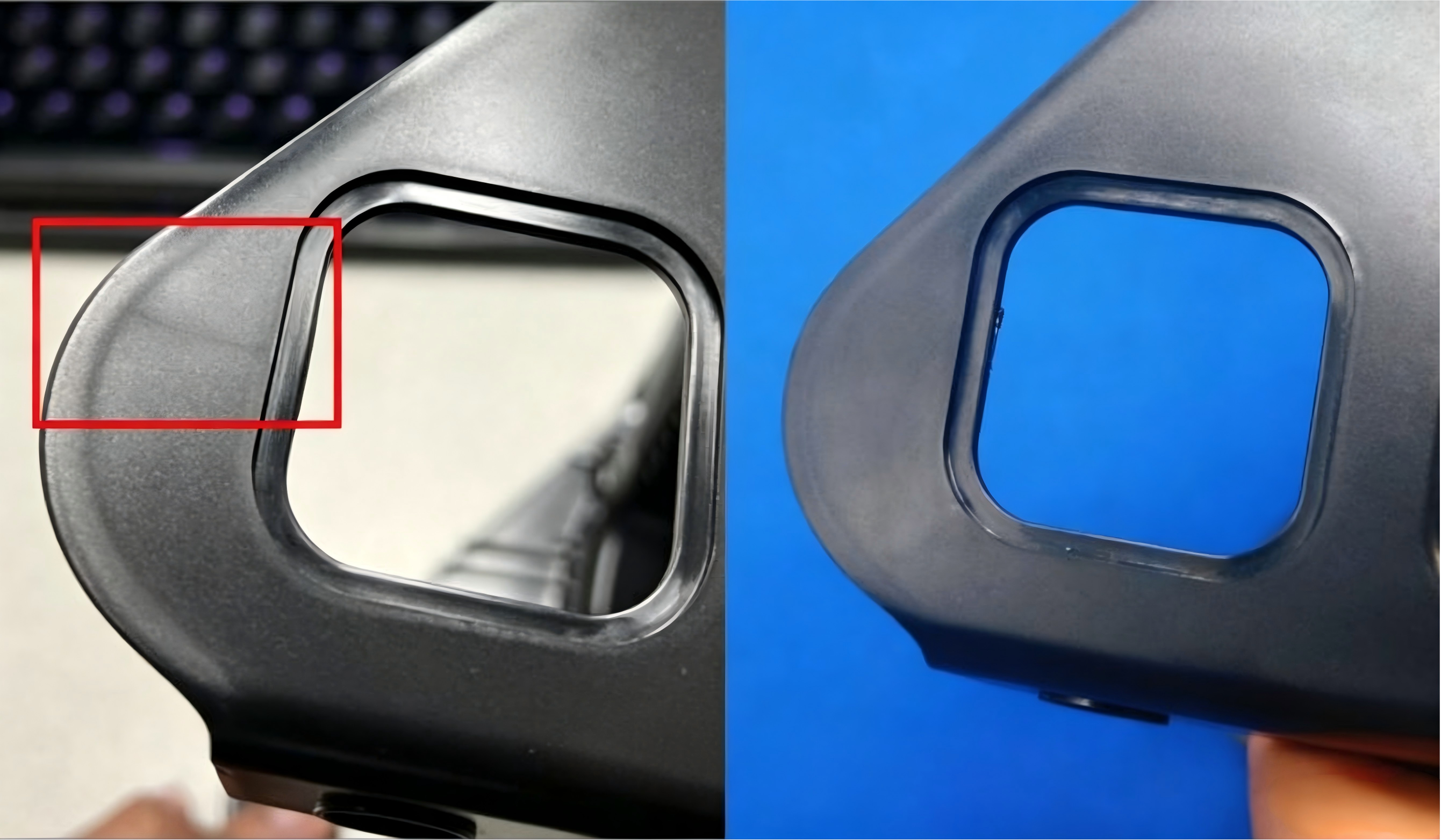

In injection molding, weld lines are one of the most common—and most underestimated—defects. Two melt fronts meet, leaving a visible line on the surface. But it's not just an appearance issue. It's a structural weakness that can lead to field failures.

What Causes Weld Lines?

When molten plastic flows around cores, inserts, or changes in wall thickness, the flow splits and later rejoins. If the two melt fronts aren't hot enough or don't fuse properly, a "scar" forms at the meeting point.

Main causes:

• Multi-gate or flow splits — melt is forced to divide and rejoin

• Low mold or melt temperature — insufficient molecular diffusion for proper fusion

• Poor venting — trapped air at the meeting point prevents intimate contact

For glass- or carbon-fiber reinforced materials, the problem is even worse. Fibers can't cross the weld line like polymer chains can, so weld line strength can drop to half or even less of the base material's strength.

Five Practical Ways to Eliminate Weld Lines

1. Raise Mold & Melt Temperatures

Higher temperatures give polymer chains more time and energy to diffuse across the interface. This is the most direct way to improve weld quality.

2. Optimize Gate Location

Use CAE simulation tools like Moldflow to predict weld line positions before tooling starts. Place gates so that melt fronts meet away from critical stress areas. When possible, use a single gate to avoid weld lines altogether.

3. Increase Injection Speed & Pressure

Higher injection speed ensures the melt fronts rejoin before they cool down too much, reducing the depth of the "scar" at the weld line.

4. Use Flow Leaders

Add design features that guide melt flow to change where the weld line forms—pushing it to less critical areas of the part.

5. Vent Properly

Set up proper venting (via parting line, ejector pins, or porous inserts) at the weld line meeting point so trapped air can escape, allowing clean contact between melt fronts.

Address It at the Design Stage

Weld line issues are best solved during the mold design phase. Fixing them after trial molding costs time and money.
