Starting your first custom injection molding project can feel overwhelming. Many first-time product teams send only a render or incomplete 3D file to manufacturers, which leads to delayed quotes, repeated design revisions, extended lead times and unexpected extra charges.

Mold fabrication is a high-upfront investment. The more complete and clear your package is at the beginning, the smoother your DFM review, quoting, tooling and sampling stages will be. This guide covers every deliverable and specification you should prepare before releasing your project for quotation and mold making.

Core Technical Files to Hand Over

Deliverable	Requirements & Notes
3D CAD File	STEP / IGES preferred. STL files are only for rendering or 3D printing; they lack dimensional data and cannot be used for mold design. File should represent your final part geometry.
2D Engineering Drawing	Critical for tolerances. Must include critical dimensions, GD&T, draft directions, surface finish specs, parting line preferences and note for regulatory requirements.
Bill of Materials (BOM)	List resin grade, color, additives (glass fiber, flame retardant), and required certifications (ISO 13485 medical, food contact, RoHS).
Render / Reference Images (optional)	Help confirm cosmetic expectations, especially for hidden gate locations or texture requirements.

Clear Part & Performance Specifications

Your molder cannot make correct assumptions. Document these requirements explicitly:

Target plastic material State the exact resin grade, not just “ABS” or “PP”. Glass-filled materials, flame-retardant grades, medical-grade or transparent resins change mold steel selection and processing parameters heavily. If you haven’t selected a material yet, share operating conditions: working temperature, chemical exposure, impact requirement, sterilization needs for medical parts.
Dimensional tolerance requirements Separate critical functional dimensions from non-cosmetic, non-critical dimensions. Tight tolerances raise tooling cost and inspection workload. Avoid calling out tight tolerances on every feature by default.
Cosmetic standards Define A, B and C cosmetic surfaces. Specify surface finish: SPI polish grades, VDI texture, matte or bead blast. Also note acceptable gate mark locations, sink marks, flow lines or flash limits. Ambiguity on appearance is one of the top causes of sample rework.
Expected production volume & project timeline Your annual or total required quantity directly guides mold selection: aluminum prototype mold, P20 soft steel, or hardened high-volume steel. Also share your target launch date so the supplier can confirm feasible lead time.
Special regulatory or quality documentation Advise upfront if you need FAI, CMM inspection reports, PPAP, COA, sterilization validation or material traceability records. These add engineering and QA time and are rarely included in basic pricing.

Design Self-Check Before DFM Review

Run through these basic checks yourself before submitting files, to reduce major revision work later:

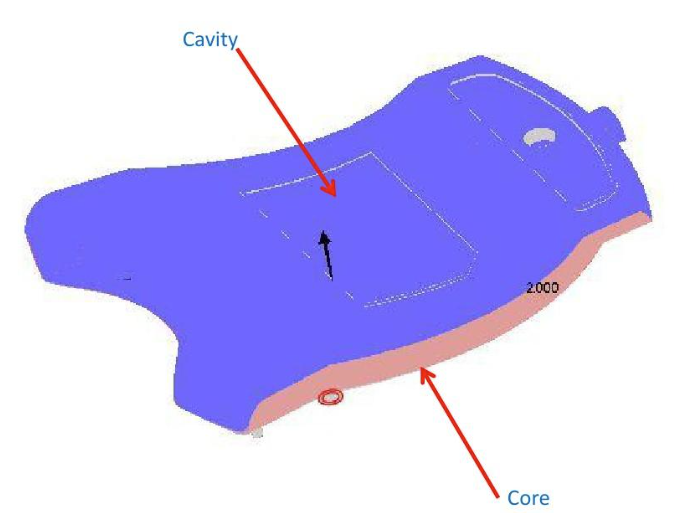

Include proper draft angles on vertical walls for easy ejection
Check wall thickness consistency to prevent sink marks and voids
Avoid overly thin sections that cause short shots
Identify undercuts and decide whether to keep them or redesign to remove sliders/lifters
Add radii at sharp internal corners (sharp corners create stress concentration and mold cracking)
Confirm screw bosses, snap fits and living hinges follow plastic design rules

Important note: This self-check does not replace a professional DFM report from your molder, but it eliminates obvious design blockers and speeds up the review cycle.

Commercial & Project Requirements to Confirm

These details shape the quotation and contract terms:

MOQ and order plan: Is this a one-time low-volume run, or recurring mass production?
Mold ownership: Confirm you will own the tool once fully paid.
Preferred trade terms: EXW, FOB Shenzhen, DAP, DDP etc.
Packaging requirements: Bulk packaging, anti-static bags, sterile packaging for medical components.
Secondary operations: Ultrasonic welding, pad printing, laser marking, assembly, gluing. These are separate processes and must be quoted individually.
Warranty expectations: Clarify mold shot life warranty and coverage for free minor repairs.

What NOT to send (and why)

Only JPG renders: No dimensional data, cannot quote accurately
STL only: Not suitable for mold design
Unfinished CAD with placeholder geometry
Vague descriptions like “make it look nice” with no written cosmetic standard

A Simple Workflow Recap

Finalize 3D STEP + 2D drawing with tolerances
Lock material, color and surface specs
Complete internal design sanity check
Send full package to supplier for formal DFM and quotation
Review DFM feedback and approve design freeze before steel cutting

FAQ

Q1: Can I start quoting without a 2D drawing?

A: Many suppliers can give a rough budget quote using STEP files. But formal tooling release and quality inspection will require a dimensioned 2D drawing with tolerances.

Q2: What if I haven’t decided which plastic material to use?

A: Share your part’s functional requirements, environment and budget. Your molder can recommend suitable resin options during DFM.

Q3: Should I finalize every design detail before contacting the mold maker?

A: It’s best to freeze core geometry before kickoff. Minor cosmetic tweaks after mold steel cutting are expensive. Major structural changes after tool start can double your tooling revision cost.
