A textured mold surface — also called a grain mold or etching mold — carries a defined micro-pattern machined into the cavity wall, so that the finished injection, die-cast or stamped part reproduces leather grain, wood grain, geometric pattern, matte or high-gloss effects directly on its surface. Across automotive interior trim, appliance housings and consumer-electronics keypads, the accuracy of this grain directly controls the part's visual quality, tactile feel and functional behavior: anti-slip grip, wear resistance, and even the hiding of parting lines.

The core value of texturing is "forming quality through pattern". On one hand, a well-designed grain replaces post-processing such as painting or pad printing and lowers unit cost. On the other, micro-patterns alter optical reflection, tactile feedback and surface mechanics — which is why they are a proven lever for product premiumization. On a high-end smartphone mid-frame, a precision-machined fine straight grain solved fingerprint residue and, through diffuse reflection, delivered a "brushed-metal" look that raised the product's market premium by about 30%.

What the grain must deliver

• Appearance — natural grain (leather, wood, stone), geometric pattern (diamond, grid, concentric rings), or artistic effect (water wave, stippled sky).
• Touch & function — grip and wear for control surfaces; light diffusion to hide fingerprints; matte or glossy optical response.
• Integration — compatible with the molding process and any downstream coating, without adding secondary finishing.

Real grain specimens from the sample library

Each panel is a 30 mm-wide physical sample. Captions list the reference pattern number, texture depth and required draft angle; depth and draft grow together as grain gets deeper.

Stitched-seam leather grain

Sculpted relief with layered depth; wear- and scratch-resistant.

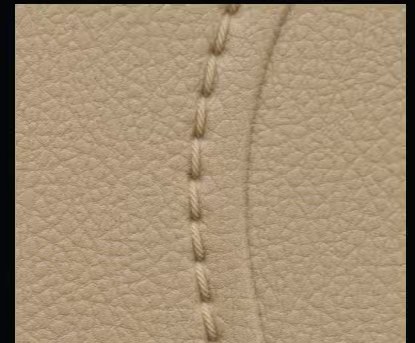

SL-AT819006
Depth: 95 µm
Draft: 13°

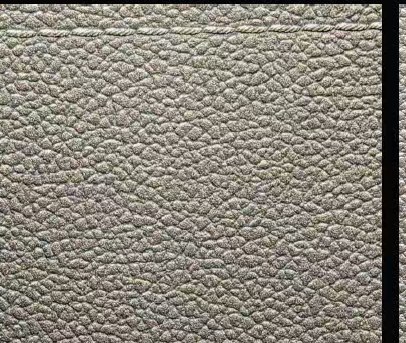

SL-20230621
Depth: 80 µm
Draft: 10.5°

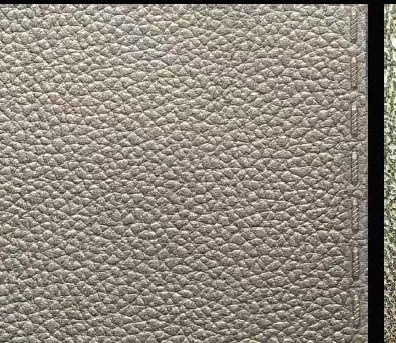

SL-S149
Depth: 45 µm
Draft: 5°

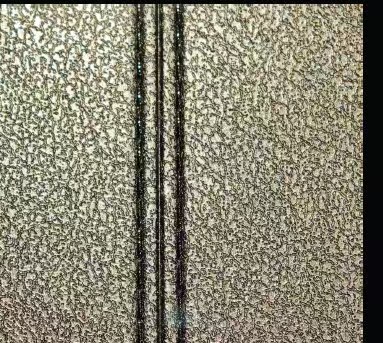

SL-C0241-B-V1
Depth: 80 µm
Draft: 10.5°

Embossed leather grain

Raised relief patterns, from fine pebbled leather to diamond quilting.

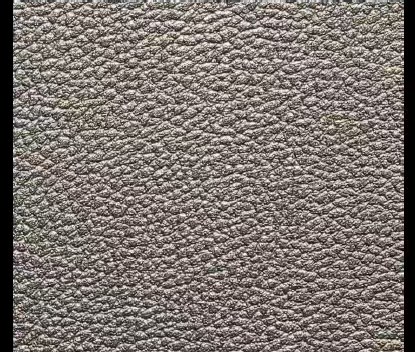

SL-ZX-YZQ231030-V1
Depth: 50 µm
Draft: 6.5°

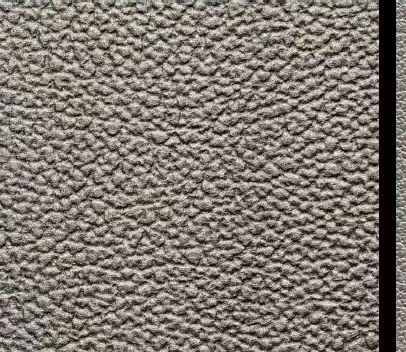

SL-piwen-C-0924
Depth: 80 µm
Draft: 10.5°

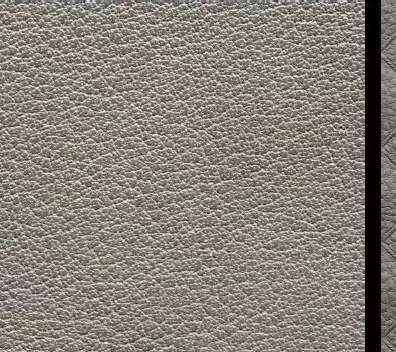

SL-A0115
Depth: 80 µm
Draft: 10.5°

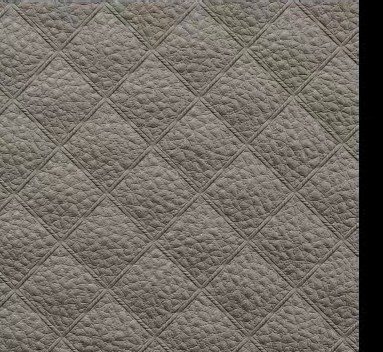

SL-5507
Depth: 300 µm
Draft: 39°

Pebble grain (embossed)

Bold, tactile pebbled relief for control surfaces and grip zones.

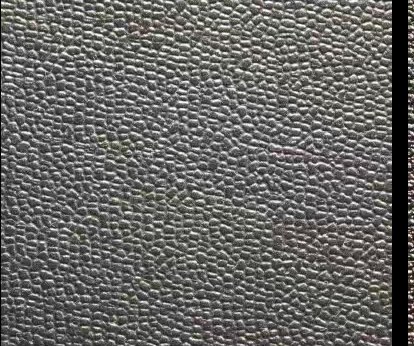

SL-V2041-V1
Depth: 50 µm
Draft: 6.5°

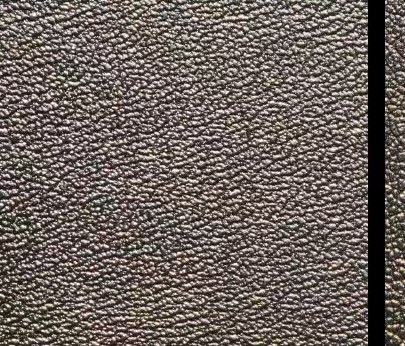

SL-RY-2
Depth: 50 µm
Draft: 6.5°

SL-C0213-V1

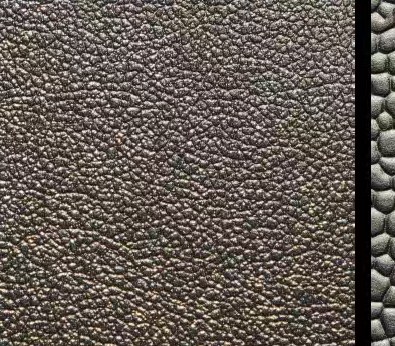

Depth: 80 µm
Draft: 10.5°

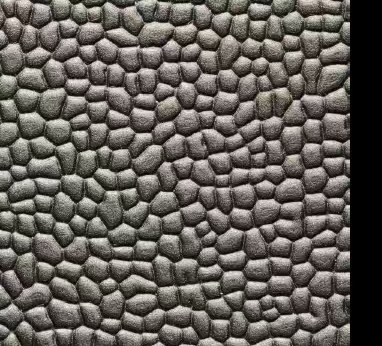

SL-S2009-V2
Depth: 150 µm
Draft: 19.5°

Texturing projects fail most often at the front door. A vague customer brief once produced a grain that deviated about 20% from expectation, forcing rework — which is why requirement parsing is treated as the first gate of project success.

2.1 Parse the customer brief on three axes

Appearance requirements

• Pattern type — natural (leather, wood, stone), geometric (diamond, grid, rings), or artistic. The customer should supply a physical sample or Pantone reference; renderings from texture tools (e.g., Alpine, TexTools) are used for sign-off.
• Pattern parameters — depth (commonly 0.02–0.5 mm; anti-slip grain usually ≥0.1 mm), density (lines per unit area, e.g. 1000/inch), direction (straight, diagonal, random) and uniformity (local depth variation ≤±5%).

Functional performance

• Mechanical — wear and grip call for hard, wear-resistant patterns such as cross-hatch, often with extra depth; weight reduction can use honeycomb or dot patterns engineered into the structure.
• Optical — high-gloss parts rely on fine EDM grain to avoid "haze" after molding; matte parts use uniform chemical-etched sand finish that lowers gloss to roughly 10–20 gloss units.

Process compatibility

• Molding method — injection molds must account for melt-flow distortion of grain; die-cast molds face erosion by high-temperature metal; stamping molds depend on material ductility for sharp pattern transfer.
• Coating allowance — when painting or UV plating follows molding, reserve coating space: deepen the grain by 10–15% over the final visual target.

2.2 Match mold steel to the texture

Steel is the material foundation of the grain. One small shop chose P20 for a high-gloss grain mold to save cost; the cavity wore out after only 5,000 shots and required repair — a false economy. Selection balances hardness, wear resistance, polishability and machinability.

• Hardness floor — cavity surface ≥45 HRC; deeper grain demands harder steel (depth ≥0.3 mm → 55 HRC or above).
• Clean microstructure — inclusions and porosity cause uneven etching; S136's higher purity yields finer grain than P20.
• Cost–life balance — small batches (≤10k) can use P20; high volume (≥500k) calls for H13 or SKD11: material cost rises 30–50% but life multiplies 3–5 times.

2.3 Texture design & digital simulation

Pattern design is the soul of the mold; veteran craftsman intuition alone no longer meets modern precision. Three design routes are used:

Simulation before cutting steel

• Fill analysis (Moldflow) — predicts weld lines and trapped gas that degrade grain. An appliance panel originally specified straight grain; simulation showed short fill at flow end, so the design switched to a spiral grain and defect rate dropped from 15% to 2%.
• Cooling analysis — keep cavity surface uniform (ΔT ≤±3 °C) to prevent localized grain blur from overheating.
• Demold simulation — verify draft angle (usually ≥1°); a 0.2 mm grain below 0.5° draft risks "barbs" that tear the part on ejection.

3.1 Roughing & semi-finishing: set the geometry foundation

Roughing removes most of the allowance at high efficiency while leaving an even stock for finishing — 0.2–0.5 mm per side. On a 1.2 m × 0.8 m appliance panel mold, uneven stock (a local 1.2 mm pocket) caused heavy cutter chatter during finishing, a 0.03 mm depth deviation, and a scrapped cavity block worth about ¥200,000.

Typical roughing parameters

• Round-nose mill, 16–32 mm diameter, 4–6 flutes; cutting speed vc 80–120 m/min; feed per tooth fz 0.3–0.5 mm/r; axial depth ap 2–5 mm; radial width ae 30–50% of diameter.
• Strategy — layer-by-layer contouring keeps each cut even and avoids local stress concentration; for cavities deeper than 200 mm, drill a pilot hole (≥80 mm) first, then ramp/plunge mill to limit cutter bending.
• Semi-finishing stock — hold 0.1–0.2 mm per side; sequence "rough → stress-relief anneal (550–600 °C, hold 2–4 h, furnace cool) → semi-finish" to release internal stress.

3.2 Finish machining (light cuts): prepare the canvas

Finishing produces an accurate cavity contour (tolerance ±0.01 mm) and a base roughness of Ra 0.8–1.6 µm on which the grain will be formed.

• HSM spindle ≥20,000 rpm; carbide ball-end mill 2–6 mm, 2–4 flutes; vc 150–250 m/min, fz 0.05–0.15 mm/r, ap 0.1–0.3 mm, ae 0.2–0.5 × ball diameter.
• Use a reciprocating path to avoid one-way tool marks; on complex curves (e.g., automotive grilles), CAM mixed contour + zigzag paths guarantee smooth transitions.

3.3 Choosing the texturing method

Three families are available; choose by precision, depth, material hardness and batch size.

Mechanical engraving (milling)

CNC engraving centers (≤0.005 mm positioning) with diamond or CBN tools (8,000–9,000 HV, outlasting carbide); spindle 3,000–8,000 rpm, feed 500–1,500 mm/min, depth cut 0.05–0.5 mm in passes. A 0.2 mm "diamond" pattern is cut in three passes of 0.05–0.07 mm each to avoid overload and edge chipping.

Chemical etching — photochemical machining (PCM), six steps

1. Surface prep — degrease, derust, sandblast to an even Ra 1.6–3.2 µm so resist adheres.
2. Coat photoresist — 5–20 µm layer; pre-bake at 80–100 °C for 10–15 min.
3. Expose — quartz-glass mask (≤0.01 mm) under UV at 365–405 nm; exposed areas cross-link.
4. Develop — weak alkali (sodium carbonate) washes away unexposed resist, exposing steel.
5. Etch — FeCl₃ / CuCl₂ bath; 0.05 mm depth takes 10–15 min at 45–50 °C; bath 20–30 Bé, temperature ±2 °C, time ±10 s, depth ±0.005 mm.
6. Strip & clean — remove residual resist with acetone, rinse and dry.

Electrical discharge machining (EDM)

• Sinker EDM (SEDM) — copper or graphite electrode copies the pattern (≤0.005 mm); peak current 5–20 A, pulse 10–100 µs, gap 0.01–0.03 mm; kerosene or deionized water dielectric.
• Wire cut (WEDM) — Mo wire 0.05–0.3 mm for 2D patterns (straight, arcs); ±0.005 mm, Ra 0.4–0.8 µm.

3.4 Heat treatment & surface strengthening: extend mold life

A die-cast mold that skipped nitriding developed worn grain after only 20,000 shots, producing glossy "bright spots" and ending as scrap. The cavity surface must resist wear and corrosion throughout production.

4.1 Assembly: precision that protects the grain

Assembly fits core, cavity, guide pillars and ejectors into a working mold; fit-up accuracy directly controls grain uniformity and smooth ejection. On a precision connector mold, a 0.02 mm cavity/core offset left one side 0.01 mm shallower than the other — solved by re-lapping the cavity datum face.

Datums

• Rough datum — grind the large base plane flat (≤0.01 mm/100 mm) so every mounting face sits parallel.
• Fine datum — use the guide pillar/bushing fit (H7/h6) for cavity/core coaxiality ≤0.01 mm.

Key fit-ups

• Cavity & core — interference fit + dowel, H7/r6 (interference 0.02–0.04 mm); wipe a thin MoS₂ grease film on the cavity before assembly to avoid scratching the grain.
• Guide pillars & bushings — press in, check verticality ≤0.01 mm/100 mm; the plate should slide by hand without sticking.
• Ejector system — pin/hole clearance H7/f6 (0.02–0.03 mm): too large flashes, too small jams; pin face sits 0.05–0.1 mm below the cavity surface so it never marks the part.

Inspection

• CMM (≤0.001 mm) checks cavity depth, width and grain depth against drawing, deviation ≤±0.01 mm.
• Feeler gauge checks parting-line gap ≤0.02 mm to stop flash leakage.

4.2 Trial-shot preparation

• Machine check — clamp force meets or exceeds projected area × 40 t/m²; verify shot volume and screw stroke.
• Material dry — ABS at 80 °C for 4 h, PP at 80 °C for 2 h; moisture causes silver streaks.
• Preset parameters (ABS reference) — melt 220–240 °C, mold 40–60 °C, injection speed 50–100 mm/s, hold pressure 60–80% of injection pressure, cooling 15–30 s.

4.3 Defect diagnosis table

Trial shots are the final verification of design, machining and assembly — and the main stage for fixing grain defects. A home-appliance housing needed five trials; raising melt temperature, hold pressure and cooling time resolved short fill and local whitening.

4.4 Post-trial adjustment & acceptance

• Size compensation — account for plastic shrinkage (ABS 0.5–0.7%): a 100 mm part needs a cavity of 100 × (1+0.6%) = 100.6 mm.
• Lock the process — record optimized melt temperature, speed and cooling time on a mold process card as the production baseline.
• Acceptance — check grain depth and uniformity with a profilometer (0.001 mm resolution) and color match (ΔE ≤0.5) before delivery.

Wear, corrosion and fatigue gradually degrade grain in service; routine care keeps it performing. One factory skipped cleaning for so long that carbon buildup reached 0.1–0.2 mm, parts developed pitting and grain depth fell from 0.05 to 0.02 mm — a three-day shutdown that cost over ¥500,000.

5.1 Daily maintenance routine

5.2 Life management: maximize mold value

Mold life is not a fixed number — it is extended through monitoring, scheduled repair and coating renewal. A medical-device mold, managed through periodic repair and coating restoration, went from a designed 200k to 800k shots, cutting unit mold cost by 60%.

Life-expiry thresholds

• Grain wear — depth loss >20% (0.05→0.04 mm) → repair.
• Roughness — cavity Ra worsens from 0.8 µm to 2.5 µm → re-polish or re-etch.
• Distortion — cavity contour moves >0.05 mm → straighten or repair.

Repair by wear level

Retire the mold when cracks appear or repair exceeds 50% of a new mold's price. S136/H13 steel can be remelted and re-forged; worn cavity blocks can be downgraded to low-volume, low-precision work to maximize resource recovery.

Textured molding is a systems engineering effort; its core can be summed up in three disciplines.

Precise design — the balance of grain and function

Design is not simple "pattern copying". Anti-slip grain must balance depth against demoldability: too deep jams ejection, too shallow gives no grip; high-gloss grain calls for EDM so mechanical tool marks do not disturb optics. Digital simulation verifies manufacturability before steel is cut — precise design is the premise of zero defects.

Precision machining — from contour to micro-pattern

Texturing works at the micron scale (depth tolerance ±0.005 mm), which demands rigid, stable machines (spindle run-out ≤0.005 mm) and the right method: chemical etching for fine grain, EDM for hard steel. Stock control, stress relief and real-time tool-wear monitoring decide whether the pattern stays consistent across the whole cavity.

Fine tuning — the last mile from mold to product

Trial shots are the touchstone of design. Root-cause analysis (e.g., a fishbone diagram) combines material flow, injection parameters and mold structure. On an automotive interior part, switching cooling channels from straight to spiral raised cavity uniformity from ±8 °C to ±2 °C and grain pass rate from 70% to 98%.

Meticulous maintenance — the guardian of mold life

Life is earned through daily cleaning and rust prevention, scheduled repair and coating renewal, and tracked depth/roughness. A consumer-electronics mold re-coated with PVD every 50k shots reached 1.5M shots against a 300k design life, cutting unit mold cost by 70%.
