Addressing Bubble Issues in Injection Molding: Causes and Solutions

This article explores the primary causes of bubble formation in injection molding and provides actionable solutions to eliminate or minimize this issue.

What Causes Bubbles in Injection Molding?

1. Air Entrapment

Air can get trapped in the mold cavity during the injection process if there is insufficient venting or poor mold design. This trapped air becomes compressed and forms bubbles when the molten plastic fills the cavity.

2. Material Moisture

Excess moisture in raw plastic materials can vaporize under high heat during the injection process, leading to bubble formation. Hygroscopic materials like ABS, nylon, and PET are especially prone to this issue.

3. Inadequate Injection Pressure

Insufficient injection pressure can fail to push the molten plastic completely into the mold cavity, leaving air pockets behind.

4. Improper Cooling Rates

Rapid cooling or uneven cooling can cause areas of the molten plastic to solidify before air bubbles can escape, trapping air inside the part.

5. High Melt Temperature

Excessive melt temperatures can cause gas generation within the material, leading to bubbles in the final product.

Effective Solutions to Prevent and Resolve Bubbles

1. Optimize Mold Design

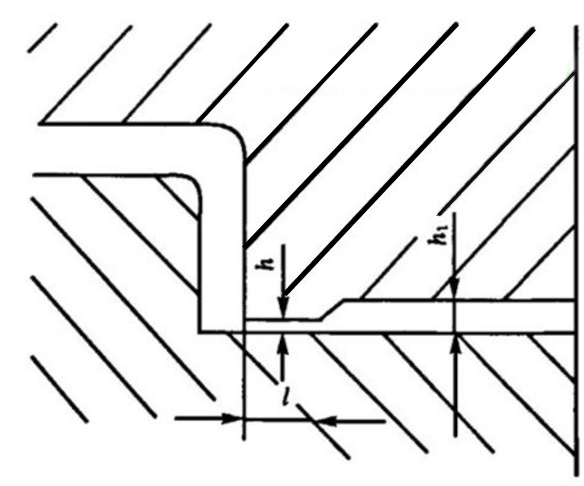

• Improve Venting: Ensure that the mold has adequate venting channels to allow trapped air to escape.
• Use Flow Simulation Tools: Software like Moldflow can identify areas prone to air entrapment, enabling adjustments during the design phase.
• Add Gas Escape Grooves: Incorporate grooves near potential air-trap zones to enhance venting.

2. Dry Raw Materials Thoroughly

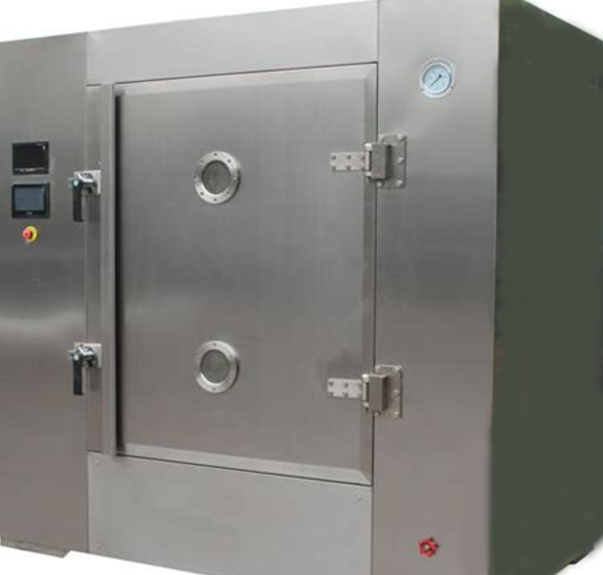

• Use proper drying equipment like desiccant dryers to reduce moisture content in hygroscopic materials.
• Monitor drying times and temperatures to ensure complete moisture removal.
• Store materials in moisture-free environments to prevent reabsorption.

3. Adjust Process Parameters

• Increase Injection Pressure: Higher pressure can push molten plastic into every corner of the mold, eliminating air pockets.
• Optimize Melt Temperature: Set the temperature to balance fluidity without causing excessive gas formation.
• Control Injection Speed: A slower injection speed can reduce the risk of air entrapment.

4. Improve Cooling Systems

• Ensure uniform cooling to avoid uneven solidification.
• Adjust cooling rates based on material type and part geometry to prevent rapid cooling that traps air.

5. Use High-Quality Materials and Additives

• Select materials with low moisture absorption rates for projects sensitive to bubble defects.
• Incorporate additives like release agents to improve material flow and minimize gas formation.

Why Solving Bubble Issues Matters

1. Improved Product Quality

Bubbles can weaken the structural integrity and aesthetic appeal of the product. Eliminating bubbles ensures a uniform and durable finish.

2. Enhanced Efficiency

Reducing defects like bubbles minimizes the need for rework or rejection, improving overall production efficiency and reducing costs.

3. Meeting Industry Standards

In industries like medical devices and automotive, bubbles can render parts non-compliant with strict regulatory standards. Proper mitigation ensures adherence to these requirements.

JBR’s Approach to Eliminating Bubbles

At JBR, we specialize in solving injection molding challenges to deliver high-quality bespoke plastic parts for our clients. As Plastic Fabrication Specialists, our approach includes:

• Advanced Mold Design: Utilizing simulation tools to optimize venting and eliminate air traps.
• Precise Material Handling: Ensuring raw materials are properly dried and stored to prevent moisture-related issues.
• Fine-Tuned Process Parameters: Adjusting pressure, temperature, and cooling rates to meet the specific needs of each project.
• Comprehensive Quality Control: Using state-of-the-art inspection tools to identify and address bubble-related defects.

Whether you’re manufacturing components for medical devices, electronics, or automotive applications, JBR provides tailored solutions to ensure defect-free production.

FAQs About Bubble Issues in Injection Molding

1. What are the main causes of bubbles in injection molding?
Air entrapment, material moisture, inadequate pressure, uneven cooling, and high melt temperatures are the primary causes.

2. How can venting help reduce bubbles?
Proper venting channels allow trapped air to escape from the mold cavity, preventing air pockets during the injection process.

3. What materials are more prone to bubble defects?
Hygroscopic materials like ABS, nylon, and PET are more susceptible to bubbles due to their tendency to absorb moisture.

4. Can adjusting cooling rates reduce bubbles?
Yes, ensuring uniform and controlled cooling prevents air from being trapped inside the solidified part.

5. Why choose JBR for injection molding solutions?
JBR leverages advanced technology, precision processes, and a dedicated team to deliver high-quality, defect-free plastic parts for diverse industries.
