How JBR Handles Situations When a Customer's 3D Design Cannot Be Demould

JBR’s Step-by-Step Process for Handling Unmoldable 3D Designs

1. Comprehensive Analysis and Diagnosis

JBR begins by conducting an in-depth evaluation of the 3D design using advanced mold flow analysis software. This ensures potential issues are identified early:

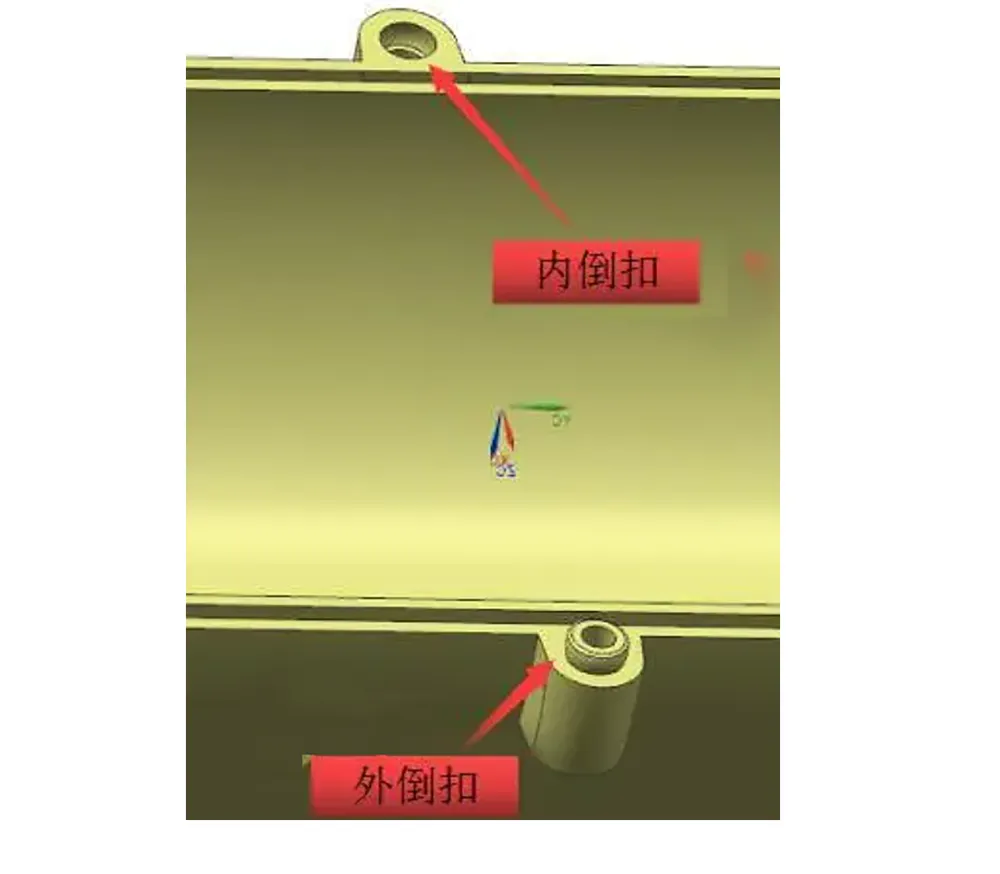

• Identifying common design challenges such as undercuts that hinder ejection, insufficient draft angles causing sticking issues, and uneven wall thickness leading to warping or sink marks.
• JBR’s experienced engineering team evaluates these problems to understand their impact on mold manufacturing and injection production.

2. Customized Optimization Solutions

For every identified challenge, JBR provides tailored recommendations that balance manufacturability and design intent:

• Adjusting structural elements, such as modifying draft angles for smoother mold release, uniform wall thickness adjustments to avoid defects, and redesigning problematic structures for seamless production.
• Collaborative discussions with customers to explain design adjustments in detail and offer professional design modification services.

This transparent approach ensures customers fully understand the rationale behind every optimization.

3. Rigorous Validation and Confirmation

To confirm the feasibility of modifications, JBR performs extensive testing:

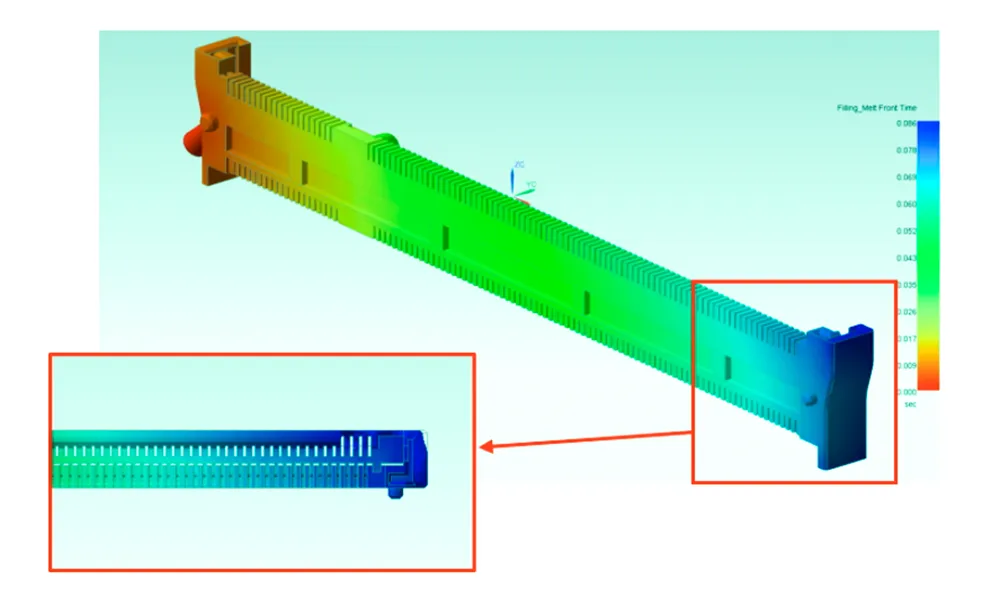

• Validation through advanced tools like mold flow analysis to verify manufacturability and structural simulations to anticipate production risks.
• Prototyping for assurance, including trial molding to create prototype samples and close collaboration with customers to confirm design intent.

JBR’s technical expertise minimizes potential risks, ensuring the revised design achieves both functionality and manufacturability.

4. Comprehensive Solution Implementation

JBR’s role extends beyond design optimization, offering a full suite of injection molding services:

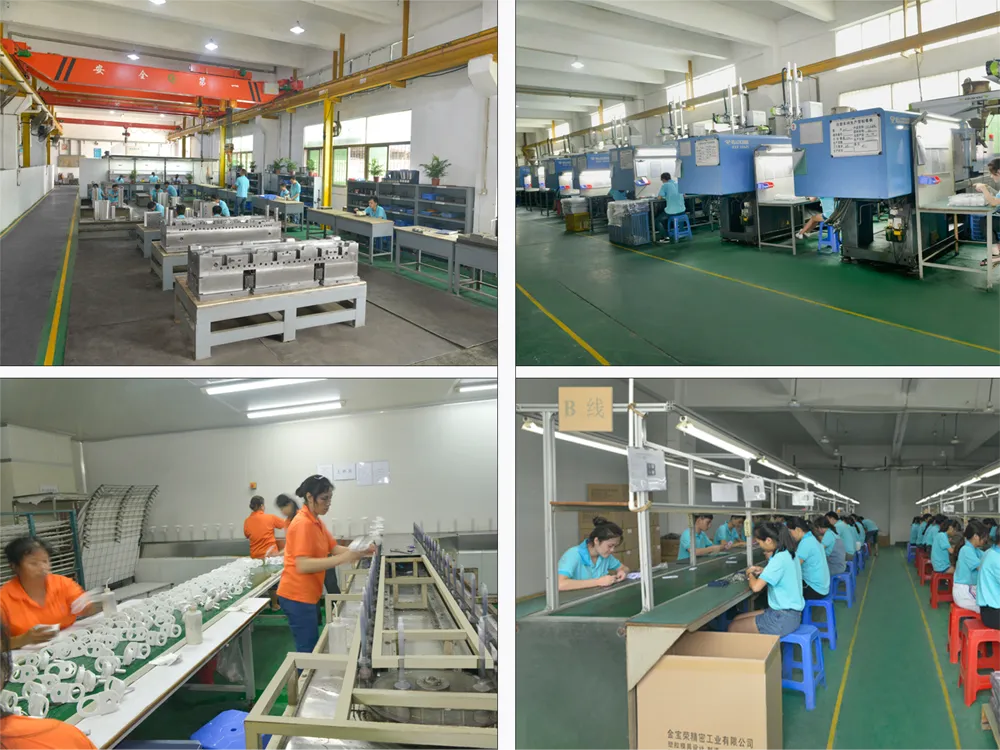

• Efficient production processes such as in-house mold manufacturing and precision injection molding for consistent quality.
• Cost and time savings through streamlined workflows that reduce production delays and experience-driven problem-solving to lower operational costs.

This end-to-end service underscores JBR’s leadership in the injection molding industry.

Conclusion

JBR's systematic approach to unmoldable 3D designs exemplifies its technical expertise and customer-centric philosophy. From thorough diagnosis to seamless production, JBR ensures precision and efficiency at every stage. As a trusted One-Stop Injection Plastic Parts Provider, JBR is committed to solving design challenges while saving customers time and resources.

Contact JBR today to learn how our tailored solutions can optimize your 3D designs and streamline your injection molding projects.

FAQs

1. What are common reasons a 3D design cannot be molded?

Common reasons include undercuts, insufficient draft angles, and uneven wall thickness. JBR’s mold flow analysis quickly identifies these issues.

2. How does JBR modify designs to make them moldable?

JBR adjusts draft angles, evens wall thickness, and redesigns problematic areas while collaborating with customers to ensure the design intent remains intact.

3. What tools does JBR use to validate design changes?

JBR employs advanced mold flow analysis and structural simulations, followed by prototyping to confirm the feasibility of changes.

4. Can JBR handle complex designs?

Yes, JBR specializes in optimizing complex 3D designs, leveraging extensive industry expertise and cutting-edge technology.

5. What sets JBR apart from other injection molding providers?

JBR offers end-to-end solutions, from design optimization to mass production, ensuring efficiency, precision, and cost savings for customers.
