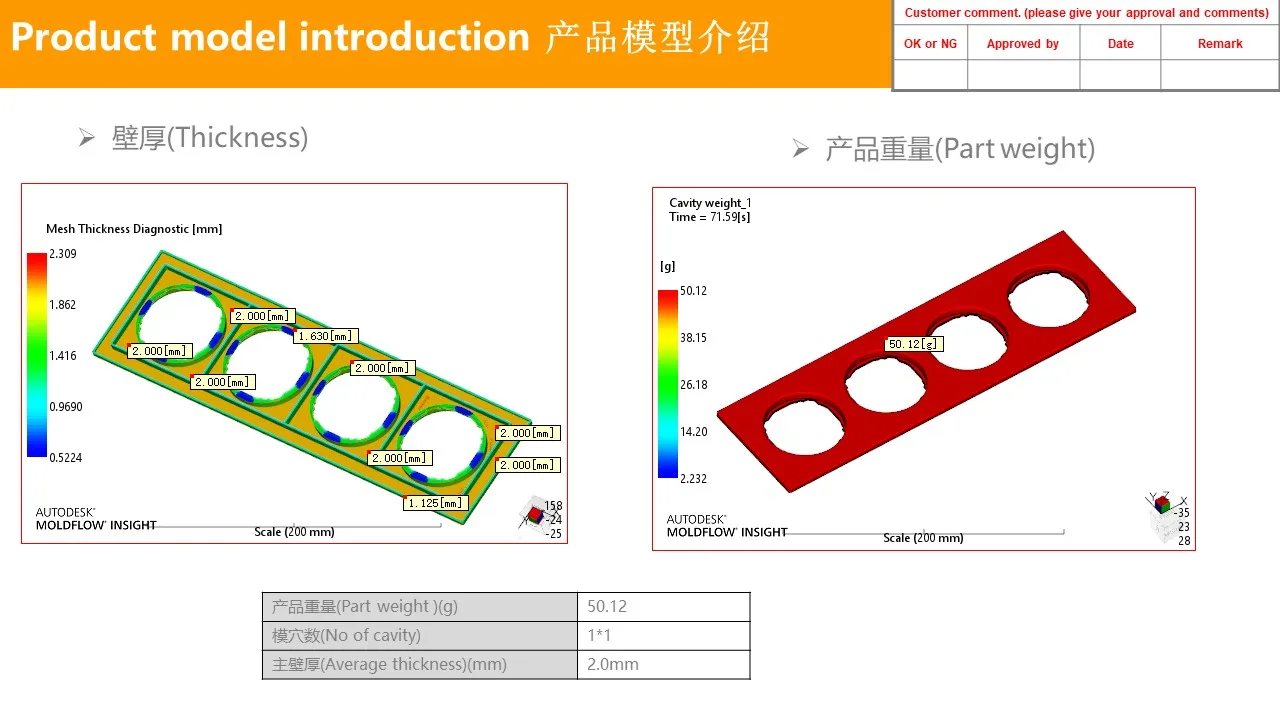

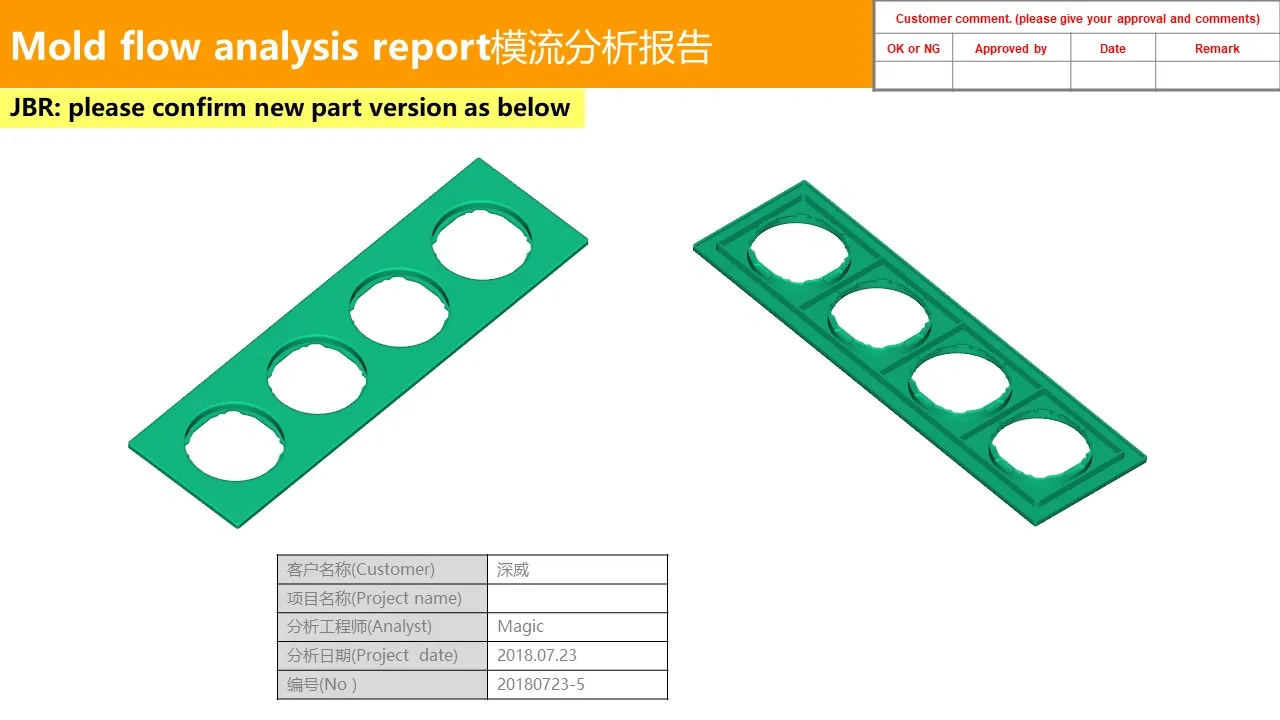

The product model analyzed features a single cavity mold design with a weight of 50.12 g and an average wall thickness of 2.0 mm. This lightweight design, coupled with uniform thickness, supports ease of manufacturing and compliance with European standards.

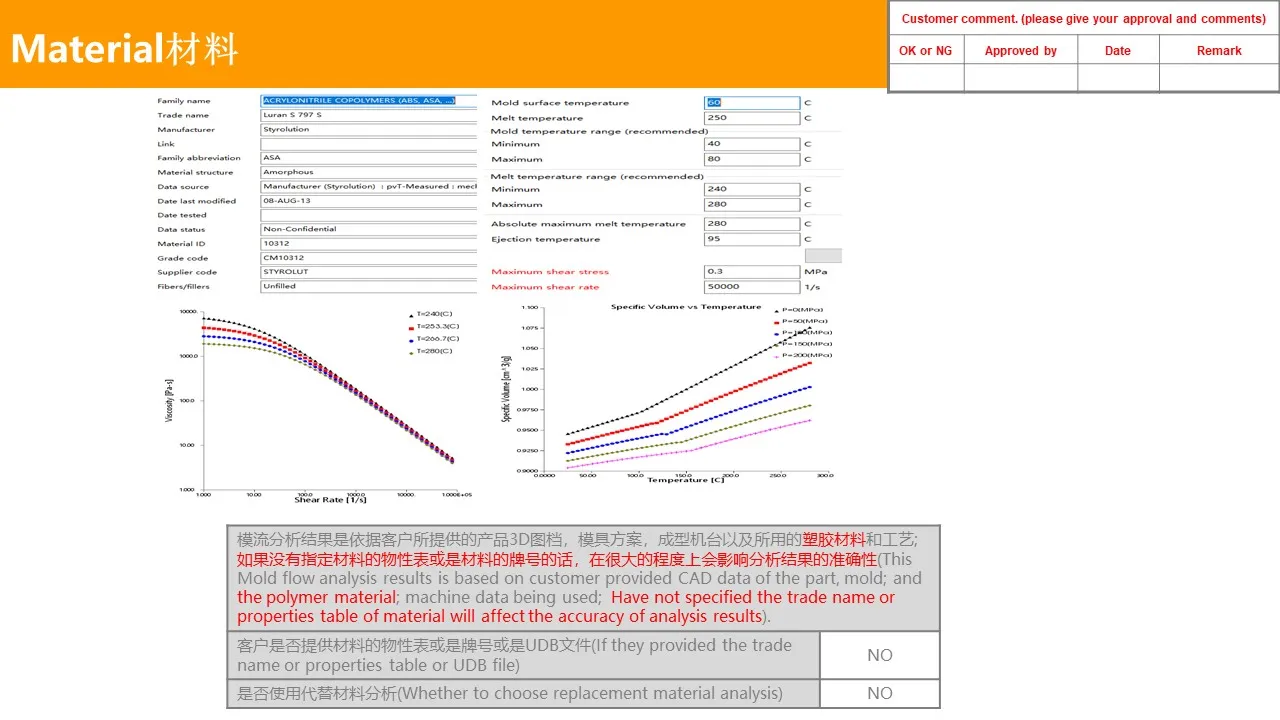

The analysis emphasized the importance of providing accurate material data. However, in this case, the absence of detailed material properties led to using generic data, which could affect the final accuracy of the simulation.

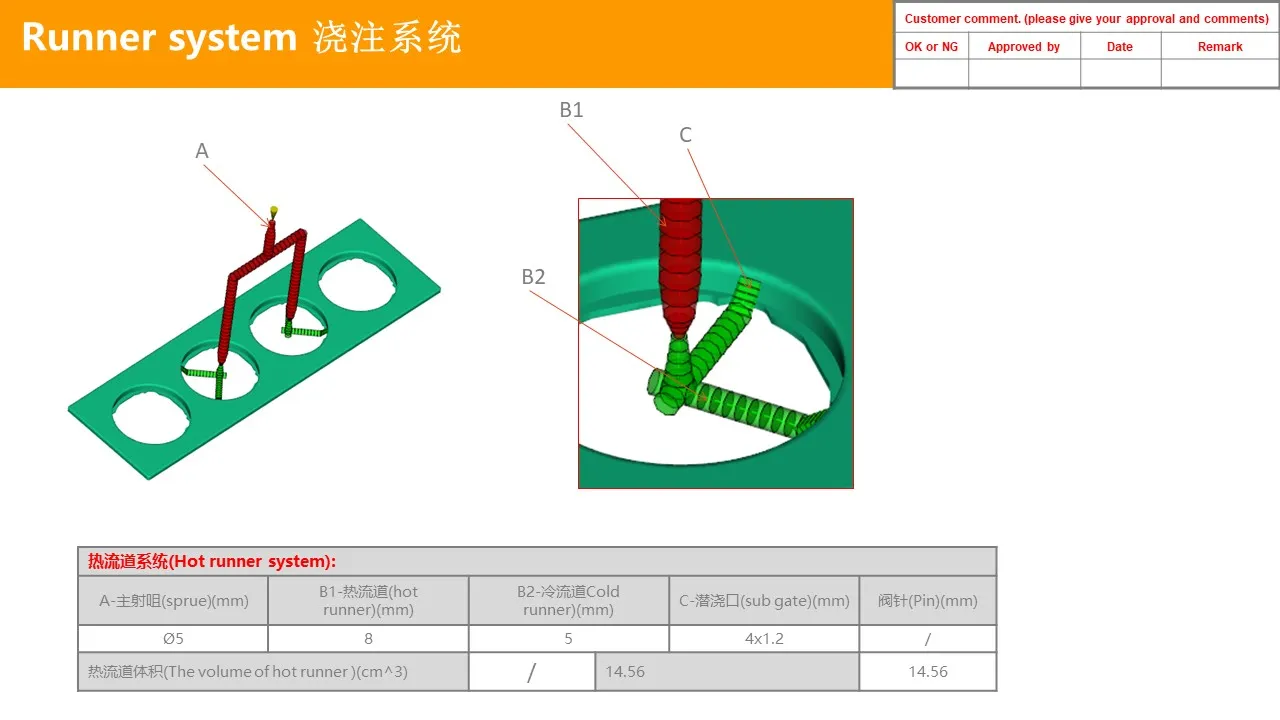

The chosen runner system incorporated a combination of hot and cold runners, with key specifications as follows:
This layout ensured a balanced distribution of material flow, minimizing waste and promoting efficient cooling. The hot runner system's total volume was 14.56 cm³, demonstrating optimized capacity for the socket’s size and complexity.

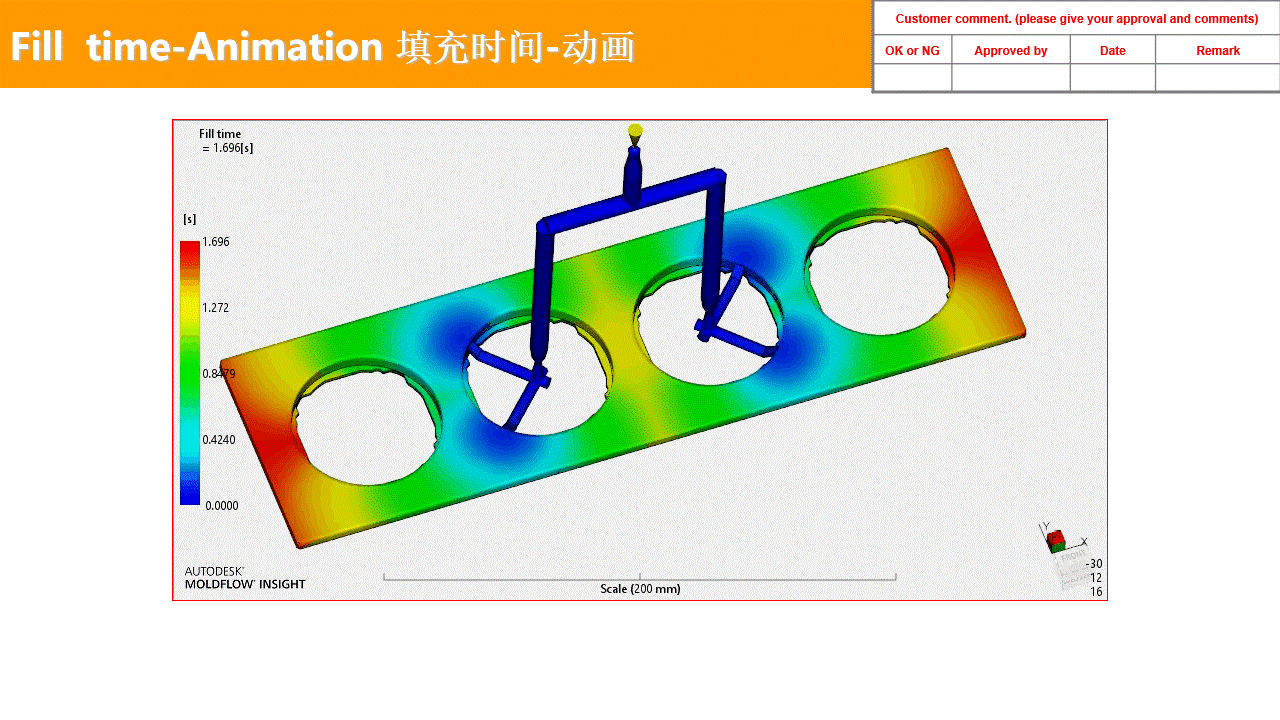

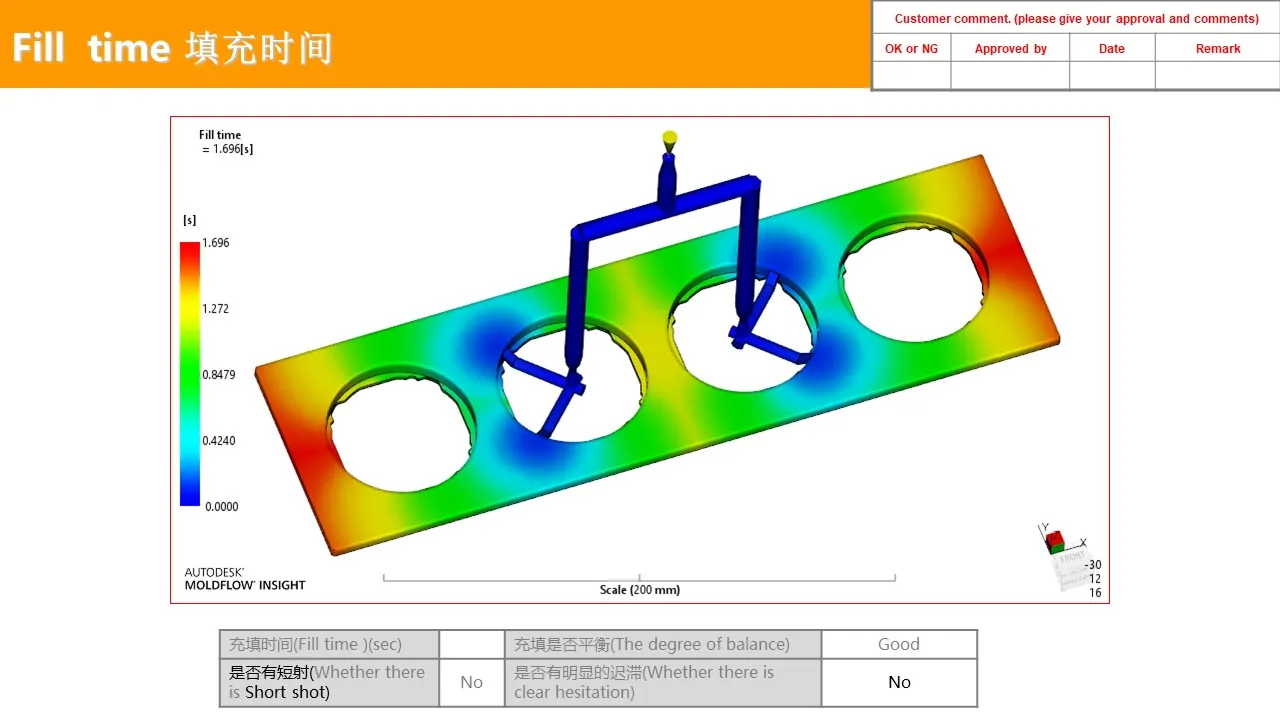

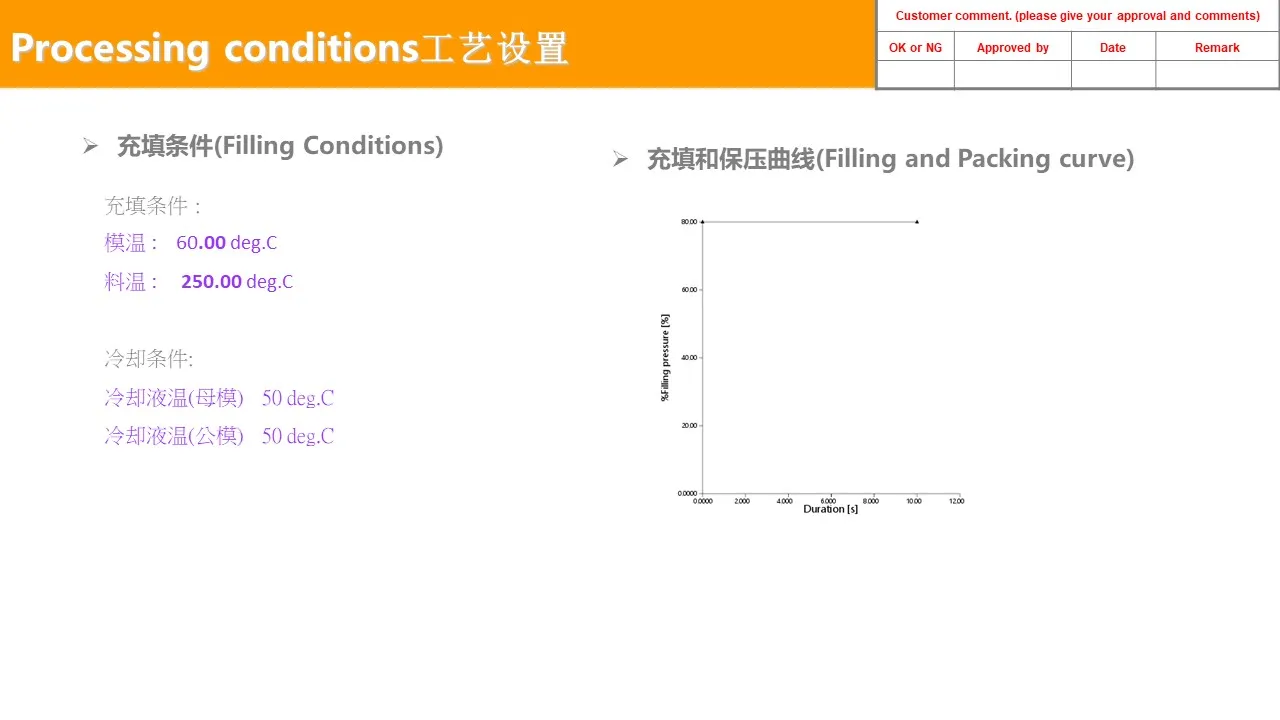

The filling time of 1.696 seconds was well-balanced, with no short shots or hesitation observed. This confirmed the mold's capability to handle the material flow efficiently under these conditions.

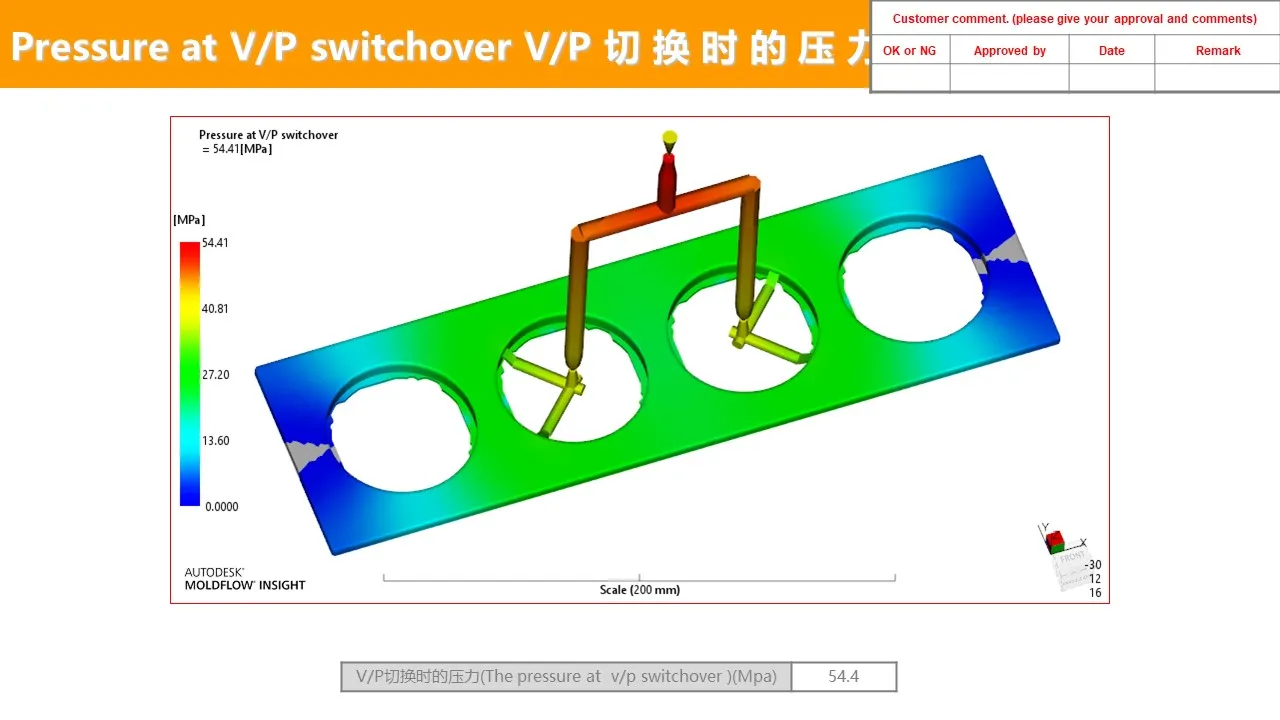

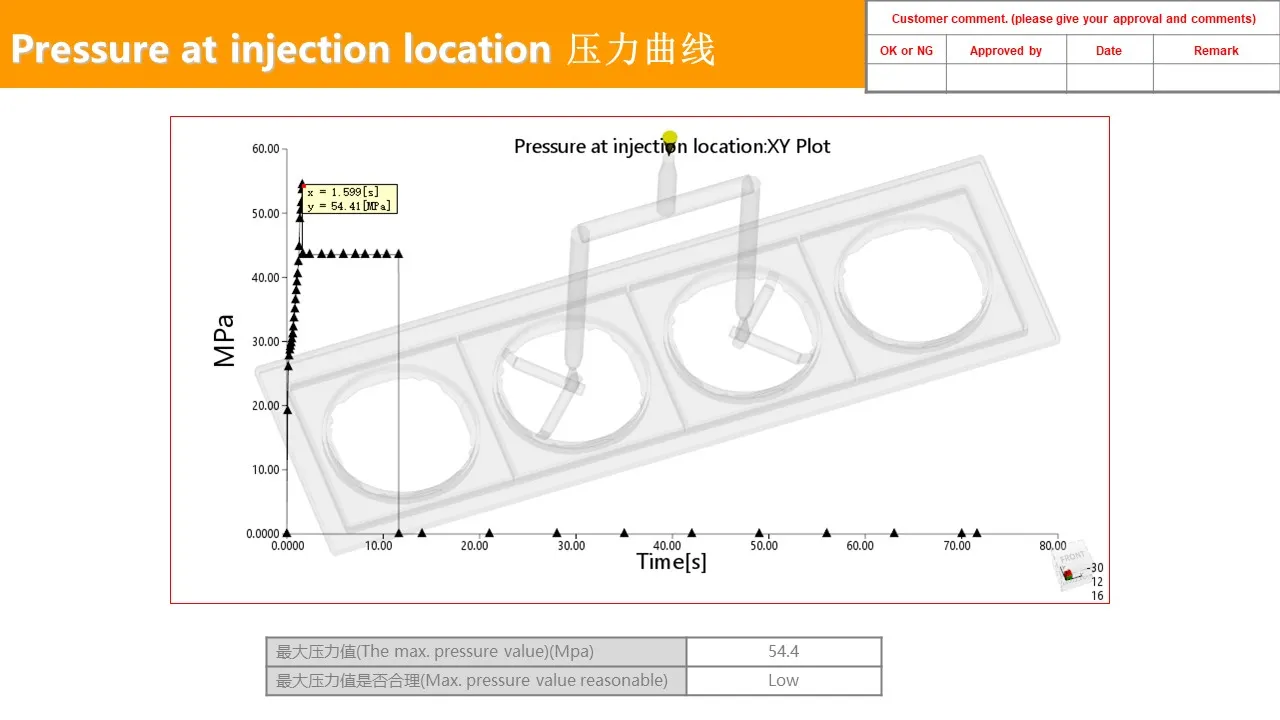

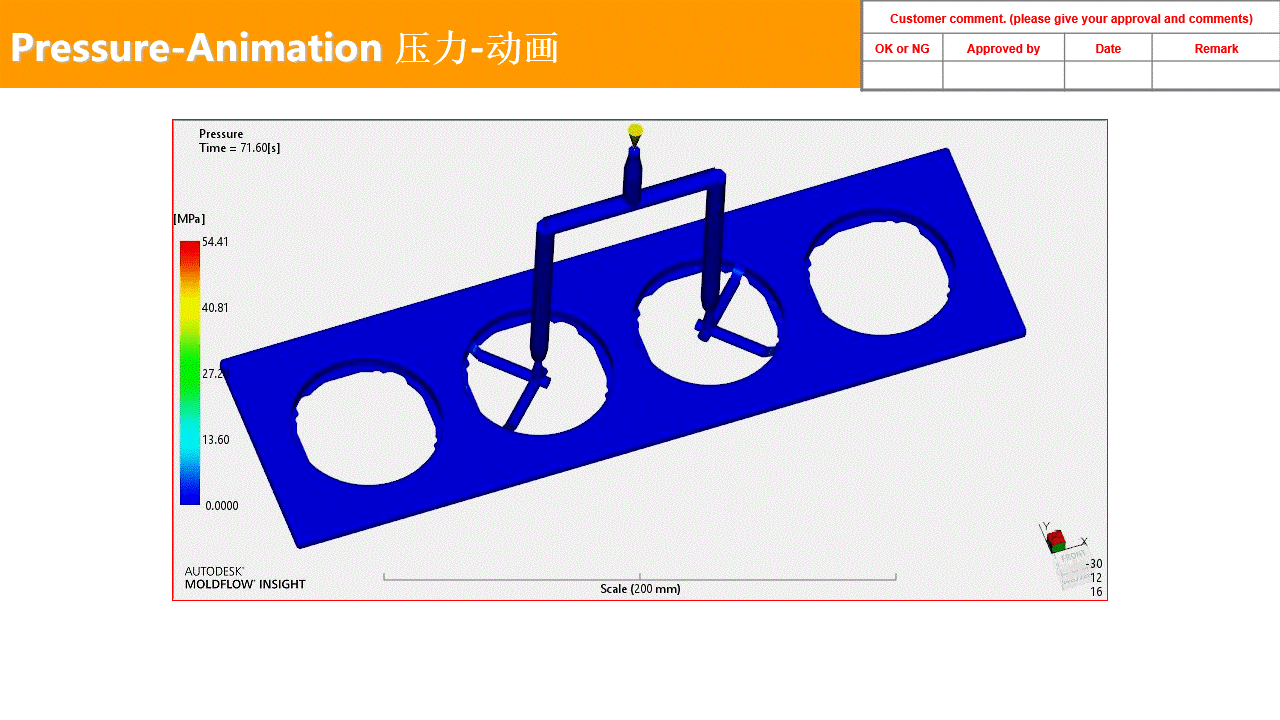

The V/P switchover pressure was recorded at 54.4 MPa, and the maximum injection pressure remained low, highlighting the efficiency of the mold design.

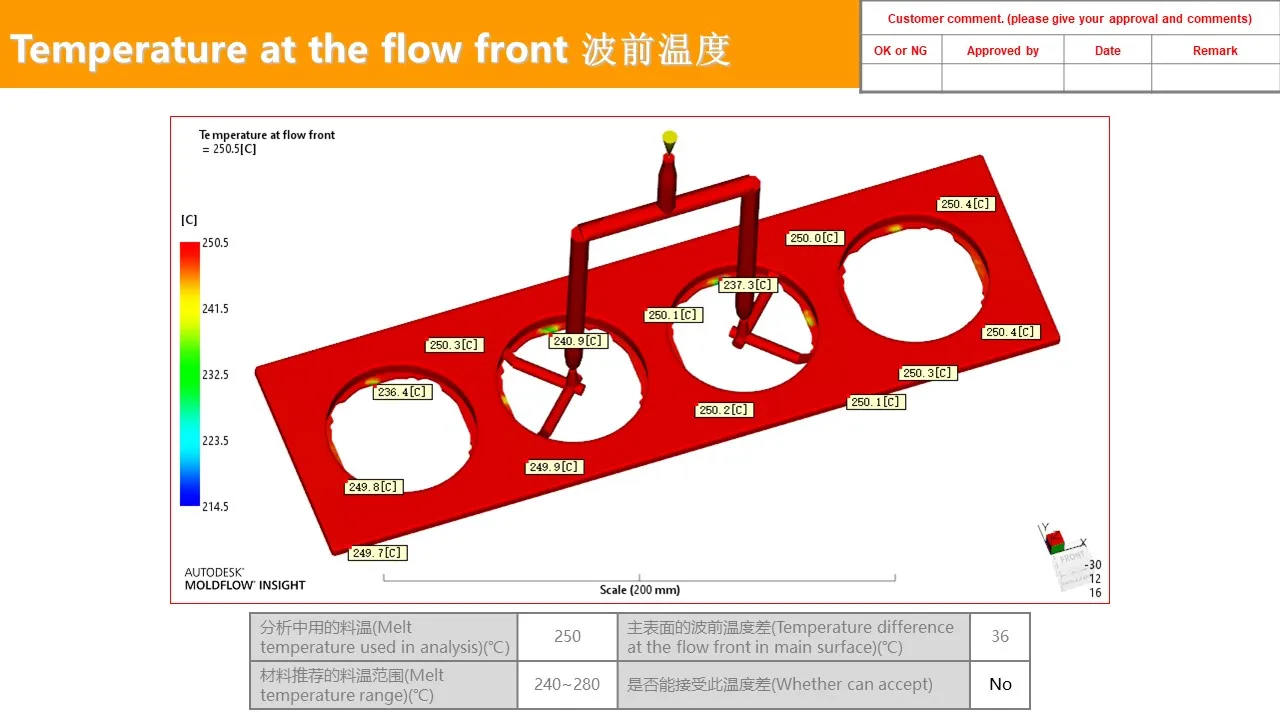

However, the temperature difference at the flow front reached 36°C, which exceeds acceptable limits. This could lead to potential warping or shrinkage if not addressed through process adjustments.

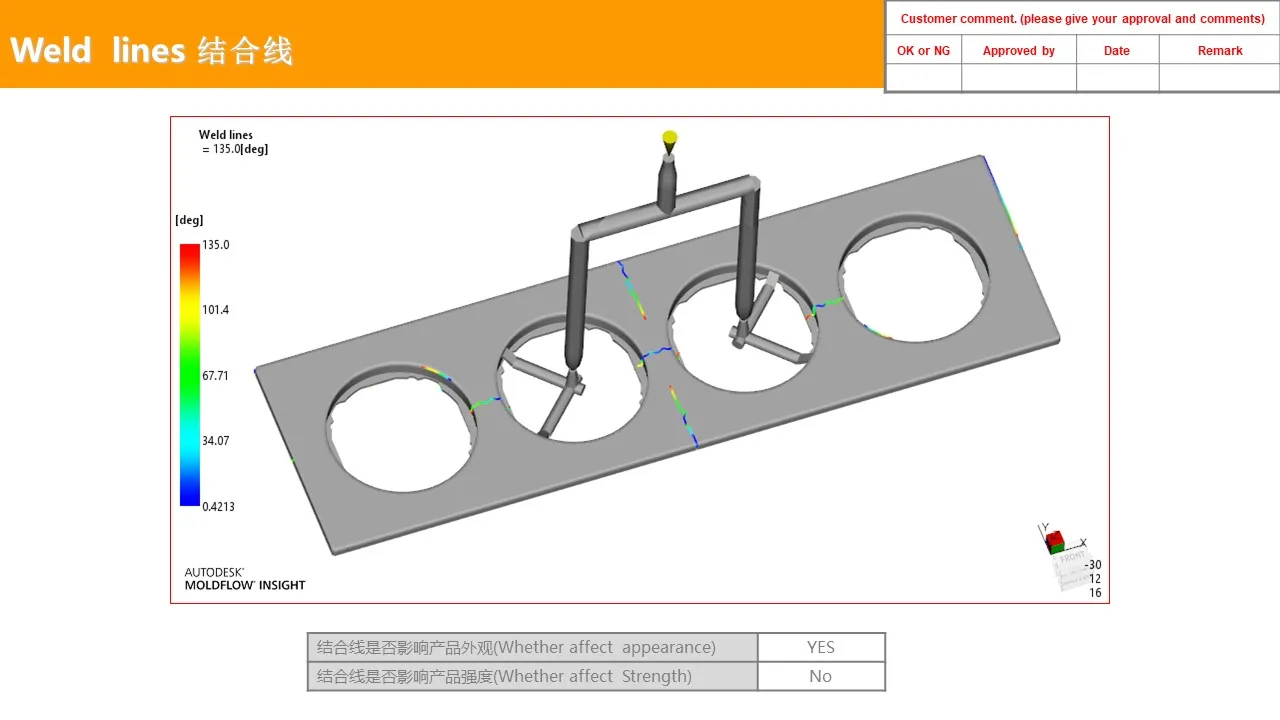

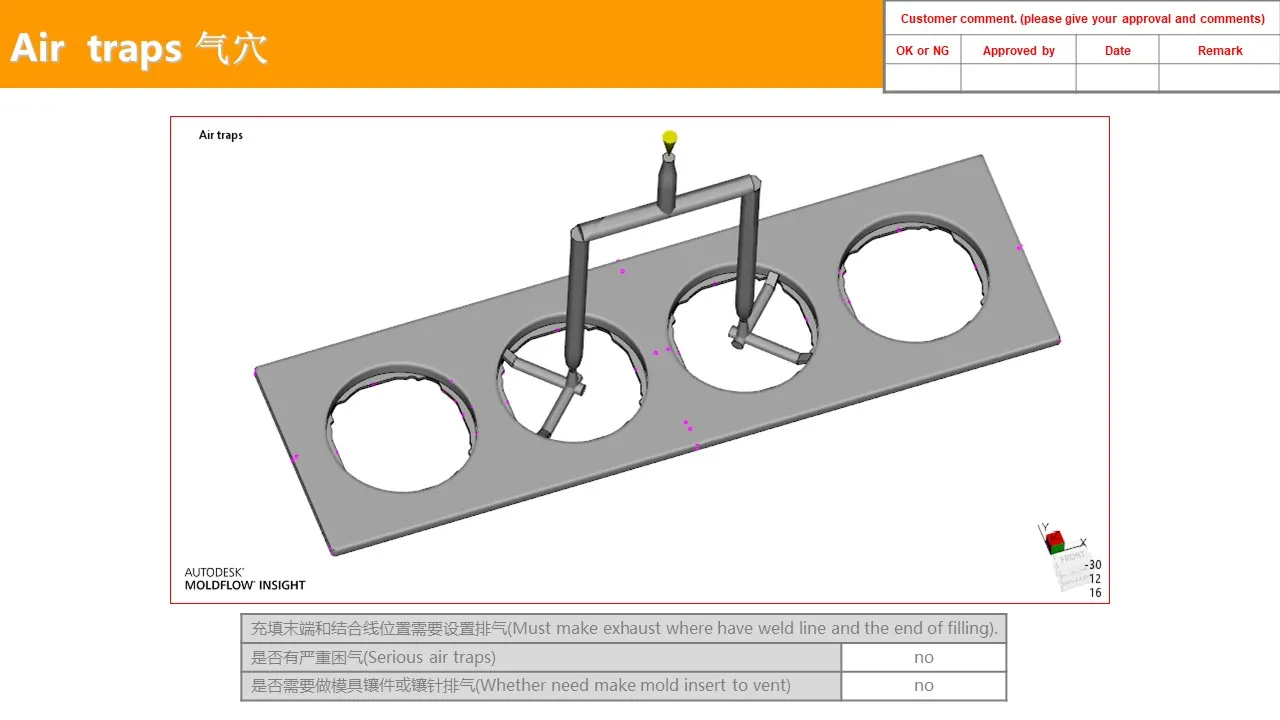

Weld lines were present and positioned in areas that could impact the product’s appearance but not its mechanical strength. Further refinement in gate placement and cooling channels could minimize these lines.

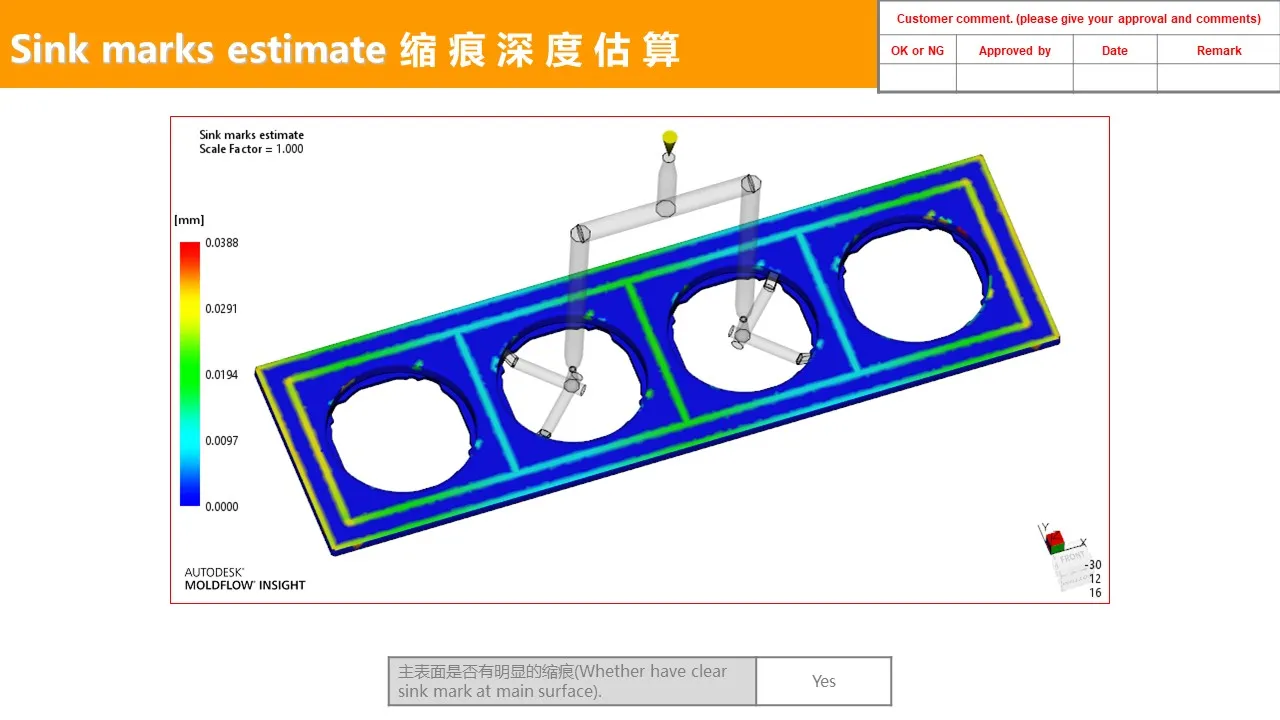

Visible sink marks were identified on the main surface. To mitigate this, a more uniform cooling process or material adjustments may be necessary.

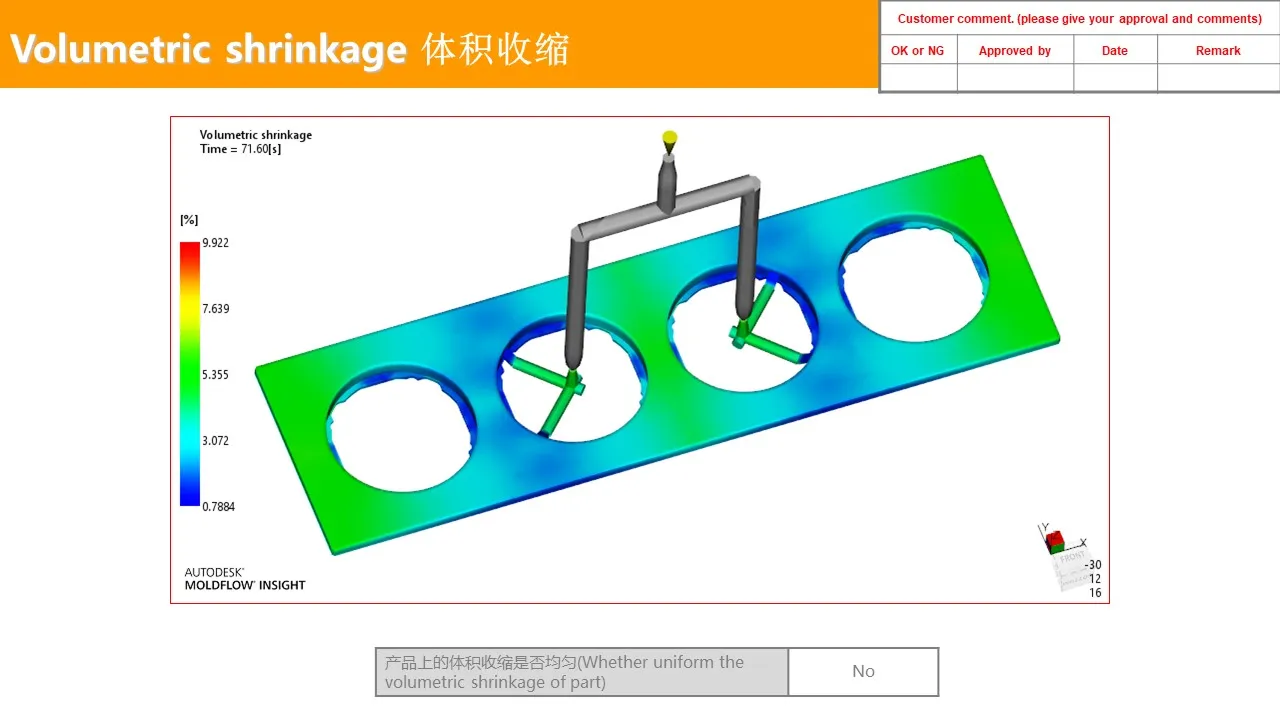

The part exhibited non-uniform shrinkage. Adjusting the cooling rate and optimizing mold surface temperatures could resolve this issue.

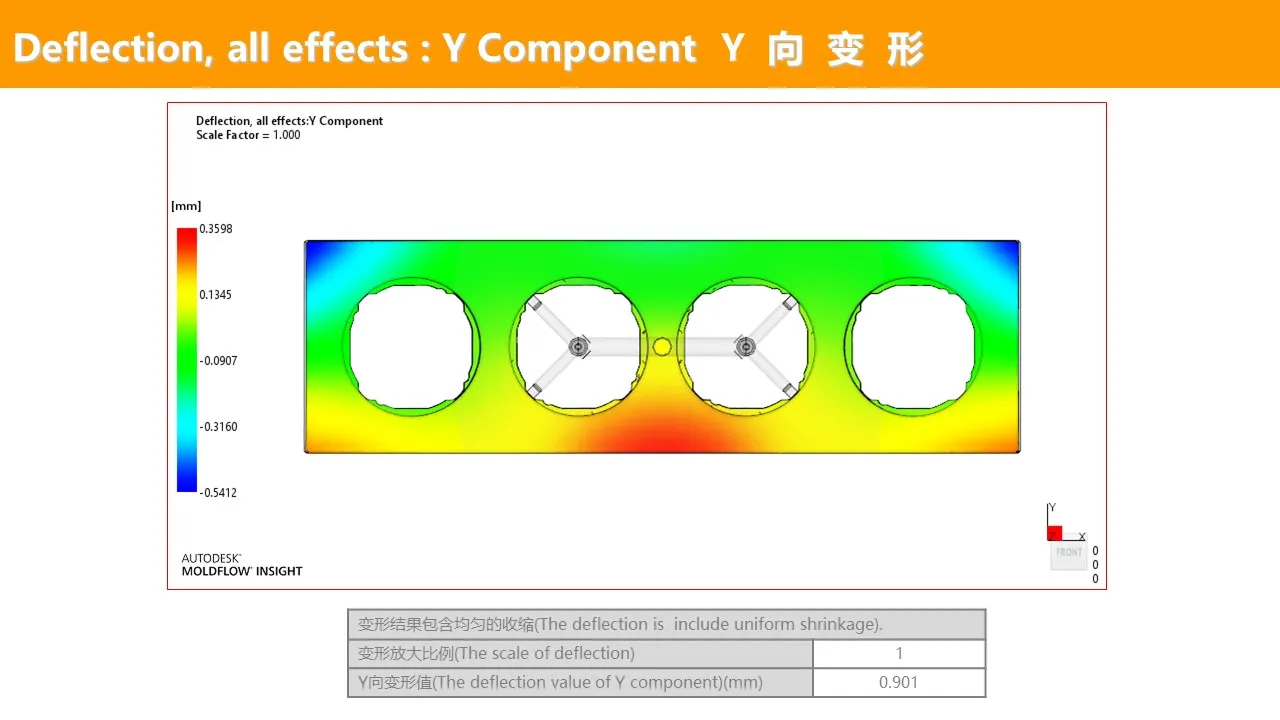

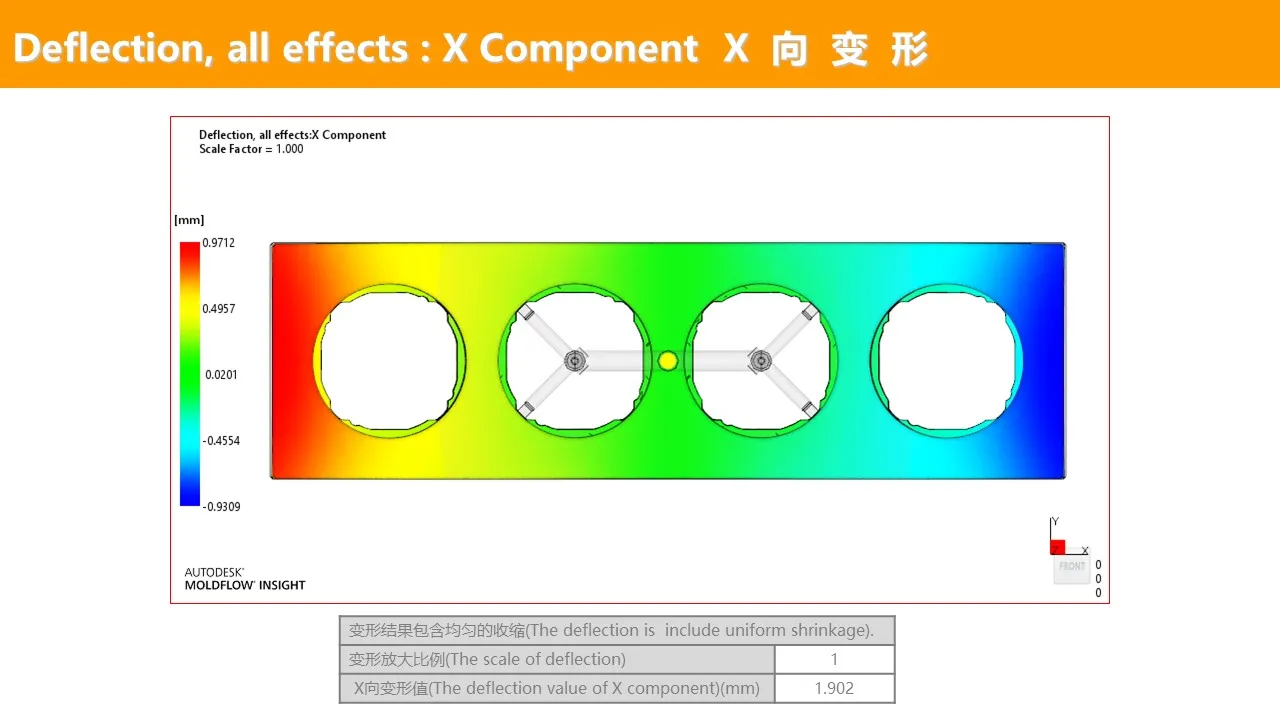

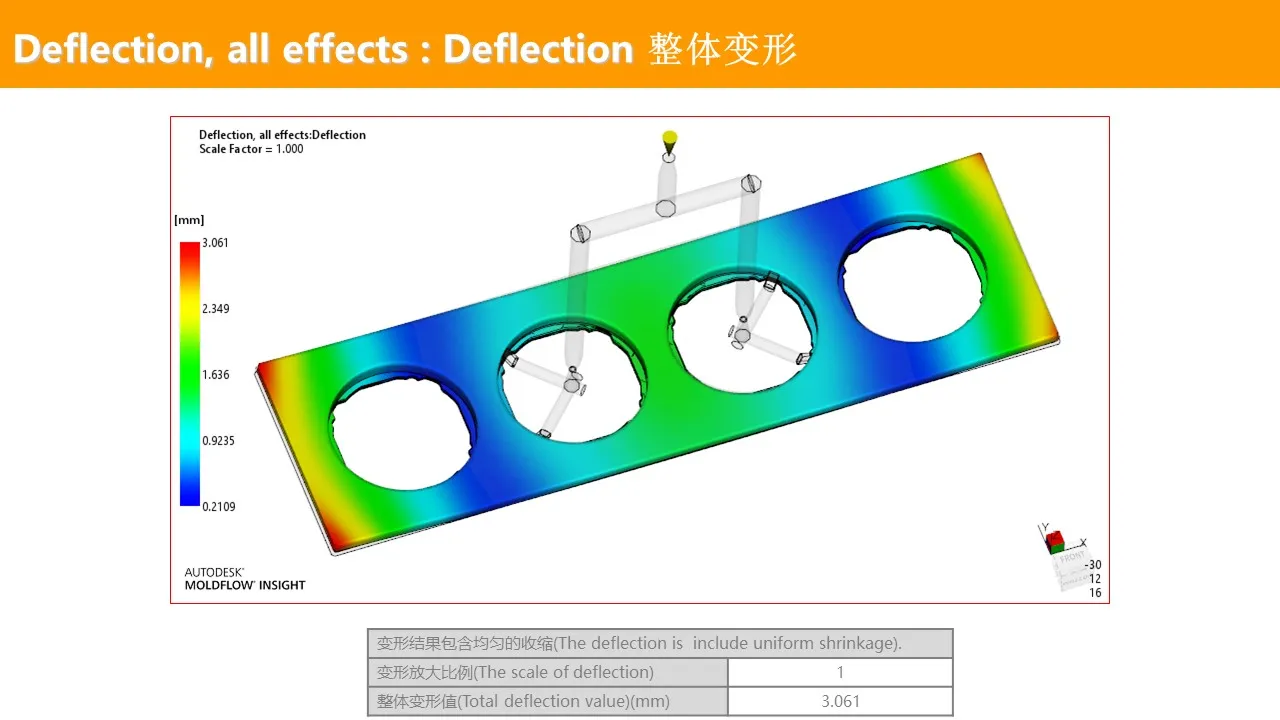

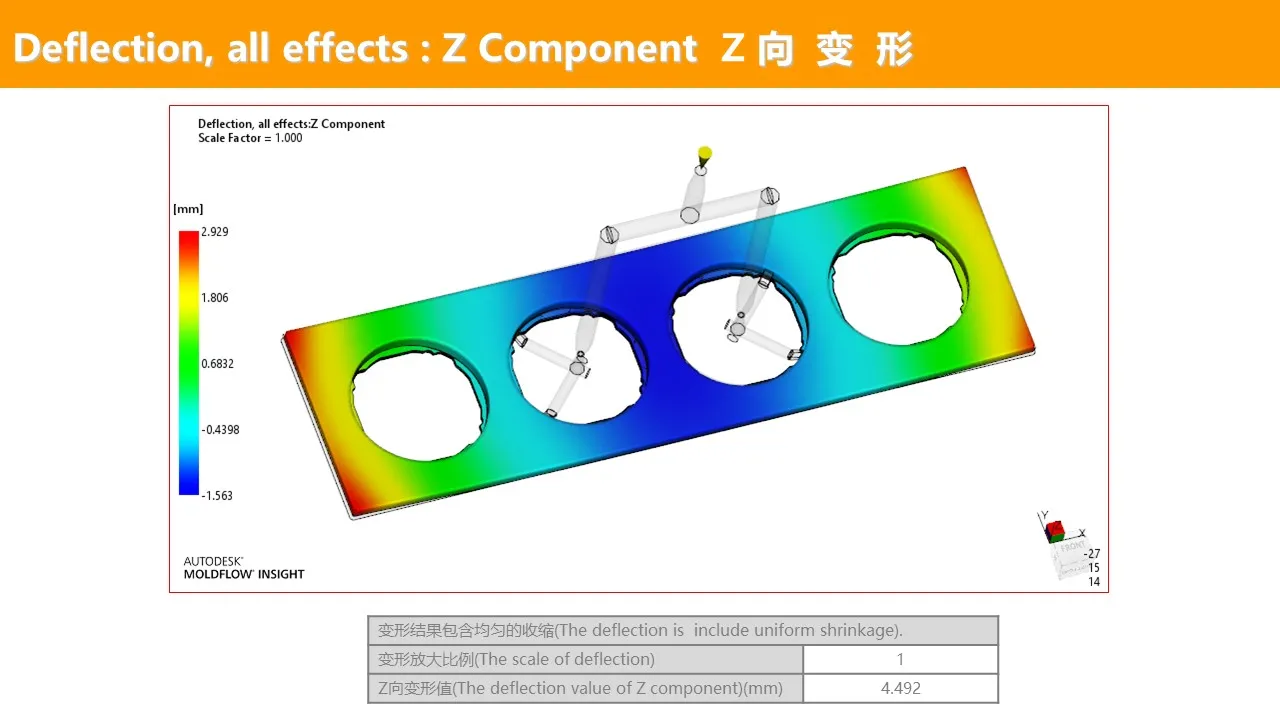

The total deflection was 3.061 mm, with significant variation across all axes:
These deformations indicate a need for reinforcement in mold design and process parameters.

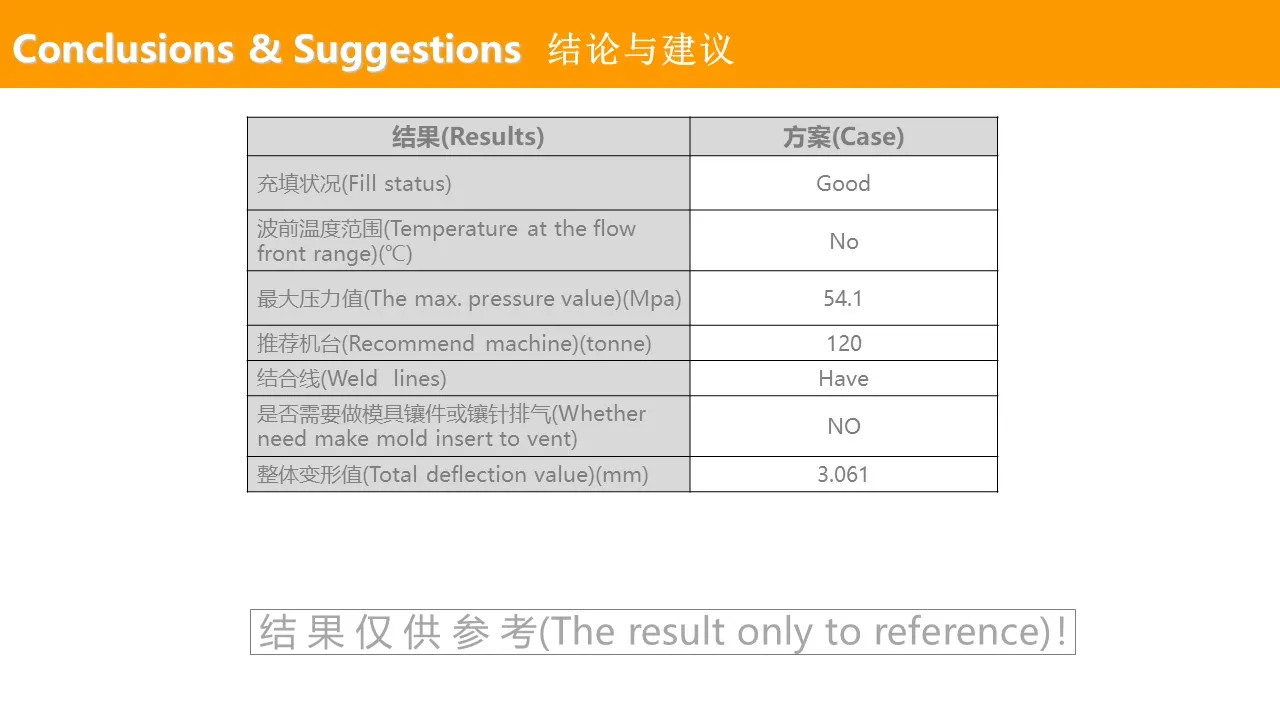

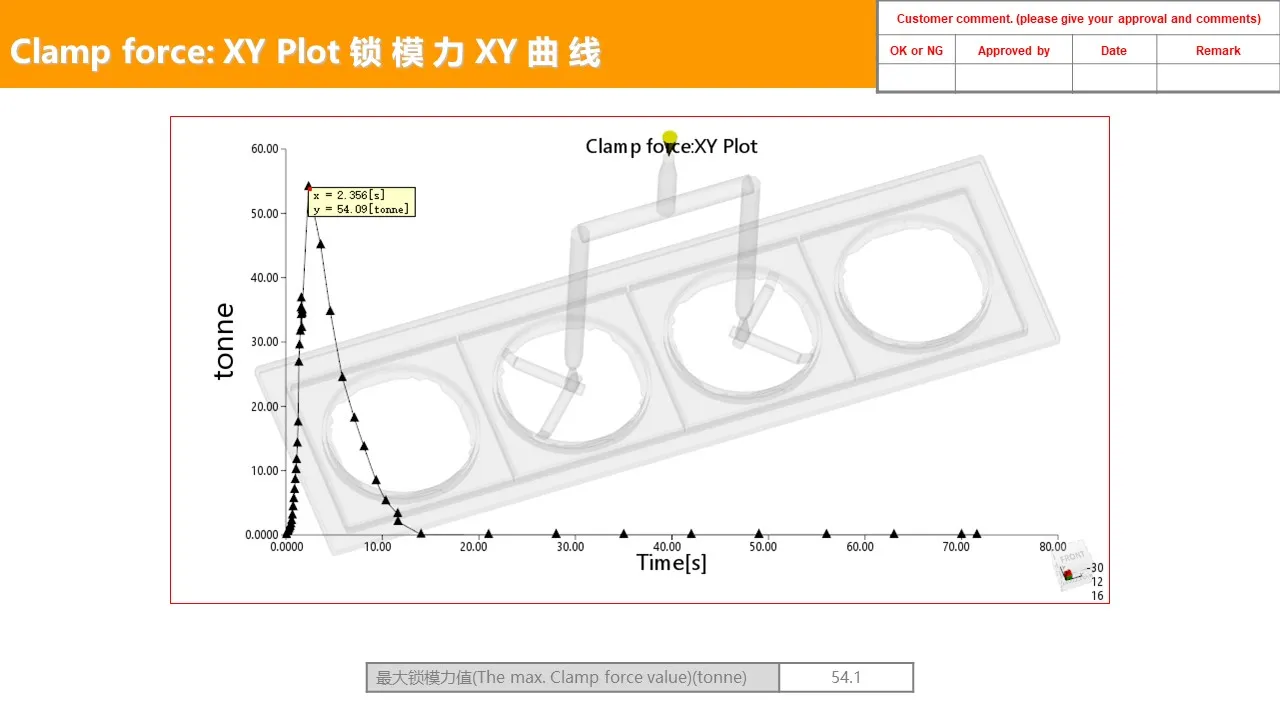

Recommended machine specifications include a 120-ton capacity for sufficient clamp force to handle the mold.
Interested in learning more about mold flow analysis or optimizing your injection molding process? Contact JBR today for tailored solutions as your trusted One-Stop Injection Plastic Parts Provider. Let us help you achieve superior quality and efficiency in your manufacturing.
FAQs
1. Why is mold flow analysis important for European Standard Sockets?
Mold flow analysis helps predict material flow and potential defects, ensuring efficient production and high-quality results.
2. How can temperature variations impact production?
Significant temperature differences can cause warping, shrinkage, or uneven material solidification, affecting product quality.
3. What steps can minimize sink marks?
Improved cooling channel design and process adjustments, such as optimizing injection speed, can minimize sink marks.
4. Why are weld lines critical for appearance?
Weld lines can affect the aesthetic quality of the product, which is crucial for customer-facing components like sockets.
5. What role does accurate material data play in mold flow analysis?
Accurate material data ensures reliable simulation results, allowing for better optimization of the manufacturing process.
