Understanding Micro Injection Molding: Principles and Applications

This article explores the principles of micro injection molding and highlights its diverse applications.

What Is Micro Injection Molding?

Micro injection molding is a specialized subset of injection molding designed for the production of plastic components that are often as small as a few milligrams or even smaller. This process involves injecting molten plastic into a mold cavity under high pressure to create intricate, miniaturized parts with extreme precision.

Key Characteristics of Micro Injection Molding:

• Component Size: Ideal for parts weighing less than 1 gram.
• Feature Precision: Capable of producing details as fine as 10 microns.
• Material Versatility: Supports a wide range of materials, including thermoplastics, thermosets, and bioresins.
• Tight Tolerances: Ensures dimensional stability even in the most complex designs.

Principles of Micro Injection Molding

The micro injection molding process is similar to traditional injection molding but adapted for smaller scales. Below are the key steps involved:

1. Material Selection

Choosing the right material is crucial due to the small scale and tight tolerances required. Common materials include:

• High-flow thermoplastics like PEEK, LCP, and PMMA.
• Biocompatible plastics for medical applications.

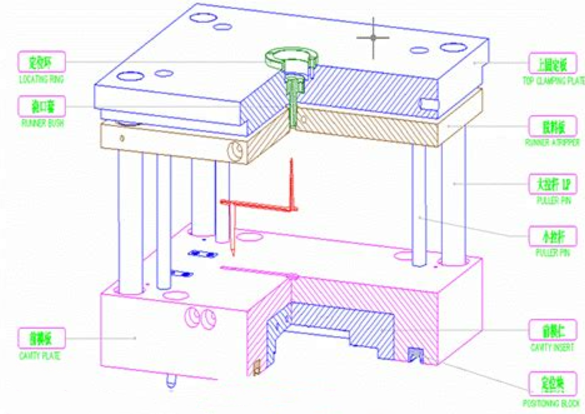

2. Mold Design

Micro molds must be designed with extreme precision. Features like ultra-thin walls, complex geometries, and microscopic cavities require advanced machining techniques such as EDM (Electrical Discharge Machining) and laser cutting.

3. Injection Process

• High Pressure: The molten plastic is injected at high pressures to fill the tiny mold cavities.
• Controlled Cooling: Precise cooling ensures dimensional accuracy and prevents defects such as warping.

4. Demolding

Careful ejection systems are necessary to prevent damage to the fragile, micro-scale components.

Applications of Micro Injection Molding

Micro injection molding is indispensable for industries requiring high-precision miniaturized parts. Below are some of its key applications:

1. Medical Devices

Micro injection molding is widely used to produce components such as:

• Catheter tips.
• Surgical tools.
• Implantable medical devices.

The use of biocompatible materials ensures safety and functionality for critical medical applications.

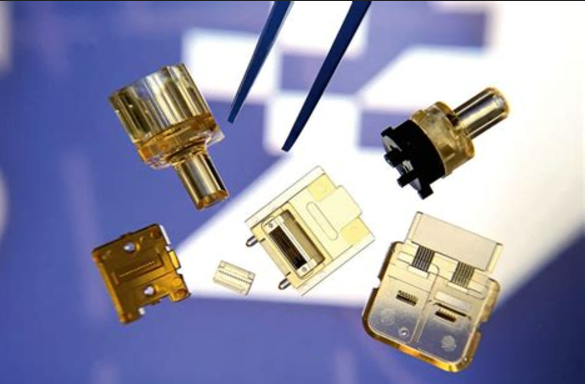

2. Consumer Electronics

The trend toward smaller and more efficient electronics has driven demand for micro injection molding in producing:

• Smartphone components (e.g., connectors and switches).
• Wearable device parts.
• Micro-optical lenses for cameras.

3. Automotive Industry

In automotive manufacturing, micro injection molding is used for:

• Precision sensors.
• Micro valves and fittings.
• Miniature housings for electronic components.

4. Microfluidics

In fields like biotechnology and diagnostics, micro injection molding enables the production of microfluidic devices, including lab-on-a-chip systems.

5. Aerospace

Lightweight, miniaturized components such as micro switches and connectors are produced for use in advanced aerospace applications.

Benefits of Micro Injection Molding

Micro injection molding offers significant advantages over traditional manufacturing methods, such as:

• High Precision: Suitable for intricate designs and micro-scale features.
• Material Efficiency: Reduces material waste due to small part sizes.
• Cost-Effective Production: Ideal for large-scale manufacturing of micro components.
• Durability: Produces strong, stable components that withstand high-stress environments.

Challenges in Micro Injection Molding

While micro injection molding offers many benefits, it also comes with challenges, including:

• Tooling Costs: Designing and manufacturing micro molds requires advanced, costly equipment.
• Process Control: The small scale requires precise control of parameters like temperature, pressure, and cooling.
• Material Flow: Ensuring uniform flow in micro cavities can be difficult due to material viscosity.

JBR’s Expertise in Micro Injection Molding

At JBR, we specialize in producing bespoke plastic parts through cutting-edge micro injection molding techniques. Whether it's creating components for medical devices, electronics, or automotive applications, our state-of-the-art facilities and experienced team ensure unparalleled precision and quality.

As Plastic Fabrication Specialists, JBR leverages advanced technology to overcome the challenges of micro molding, delivering customized solutions tailored to your needs.

Got Questions? Contact JBR Today!

If you want to learn more about micro injection molding or need assistance with custom plastic components, reach out to JBR. We’re here to provide innovative and reliable solutions for all your manufacturing needs.

FAQs About Micro Injection Molding

1. What is micro injection molding?
Micro injection molding is a manufacturing process used to produce small, high-precision plastic components, often for industries like medical devices, electronics, and automotive.

2. What materials are suitable for micro injection molding?
Common materials include high-flow thermoplastics like PEEK, LCP, and PMMA, as well as biocompatible plastics for medical applications.

3. What industries benefit from micro injection molding?
Industries such as medical, automotive, aerospace, electronics, and biotechnology rely heavily on micro injection molding for producing intricate, miniaturized components.

4. What are the advantages of micro injection molding?
The process offers high precision, material efficiency, cost-effectiveness for large-scale production, and the ability to create complex designs.
