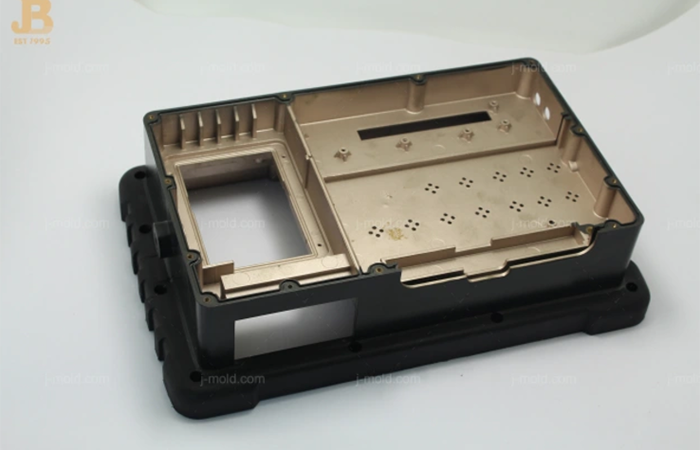

Overmolding refers to the process of adding a layer of material over an already-formed substrate or core material. The core can be made from different materials, such as metal or plastic, while the outer layer is typically a different type of plastic or elastomer, designed to provide specific properties like grip, insulation, or aesthetic appeal.
The technique is widely used in industries where product functionality, durability, and comfort are essential. Overmolding allows for the creation of complex parts with a combination of rigid and flexible features in a single, integrated unit.
Overmolding involves several key steps:
Core Preparation: The process begins with the creation of the core material. This is typically done using standard injection molding or other forming techniques. The core material must have a rough or textured surface to ensure proper bonding with the overmolded material.
Injection of Base Material: The first material, known as the substrate or core, is placed in the mold cavity. After the core is in place, the overmolding material is injected around it. This material is typically a soft, flexible polymer like rubber or thermoplastic elastomer (TPE), although other materials can be used depending on the product requirements.
Curing: In some cases, heat or UV light may be applied to cure the overmolded material, ensuring it bonds properly to the core. This step is crucial to avoid any delamination or separation between the two materials.
Cooling and Ejection: Once the overmolding material is injected and cured, the part is cooled and ejected from the mold. The result is a part with a smooth, continuous surface that combines the properties of both materials.
When designing a part for overmolding, several factors must be considered:
Material Compatibility: One of the most important design considerations is the compatibility of the core material with the overmolding material. For successful bonding, both materials must adhere to each other without delaminating during the use of the part.
Bonding Techniques: The interface between the two materials must be designed for optimal adhesion. A rough or textured surface on the core helps improve bonding, ensuring a strong, durable connection between the materials.
Mold Design: The mold must be designed to accommodate the insertion of the core material and allow for the injection of the overmolding material. Mold features like gates and vents must be carefully placed to ensure proper filling of the mold and efficient ejection of the part.
Tolerances and Fit: The fit between the core and the overmold must be precise to ensure that the final part meets functional and aesthetic requirements. Tighter tolerances can improve the performance and quality of the product.
Injection Pressure and Temperature: The injection pressure and temperature must be adjusted based on the materials used and the part's complexity. Proper control of these factors ensures consistent results and prevents issues like short shots or incomplete fills.
Overmolding is used in a wide range of industries due to its ability to produce parts with multiple materials in a single, cost-effective process. Some common applications include:
Consumer Electronics: Overmolding is frequently used in consumer electronics such as mobile phone cases, remote controls, and wearable devices. The flexible outer layer provides better grip, comfort, and protection for the device, while the rigid inner core supports the electronics' functionality.

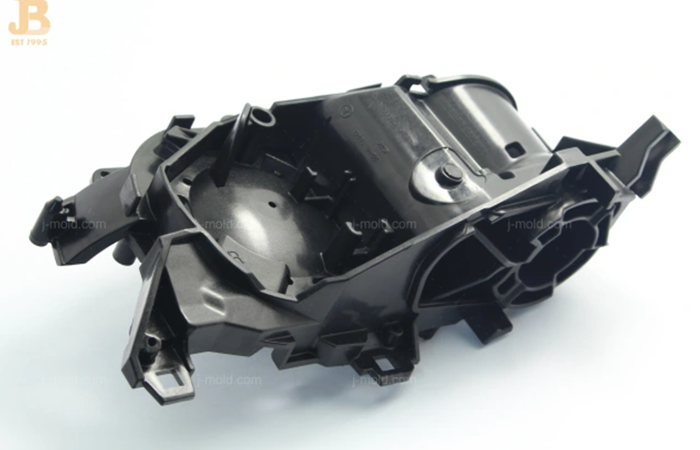

Automotive Industry: In the automotive sector, overmolding is used to create parts that require both strength and comfort, such as ergonomic handles, knobs, and seals. The combination of hard and soft materials makes it ideal for components that need to withstand wear and provide comfort.
Medical Devices: Overmolding is commonly used in medical device manufacturing, where comfort, ergonomics, and hygiene are critical. For example, overmolded grips and handles on surgical tools or medical instruments provide improved tactile feedback and safety.

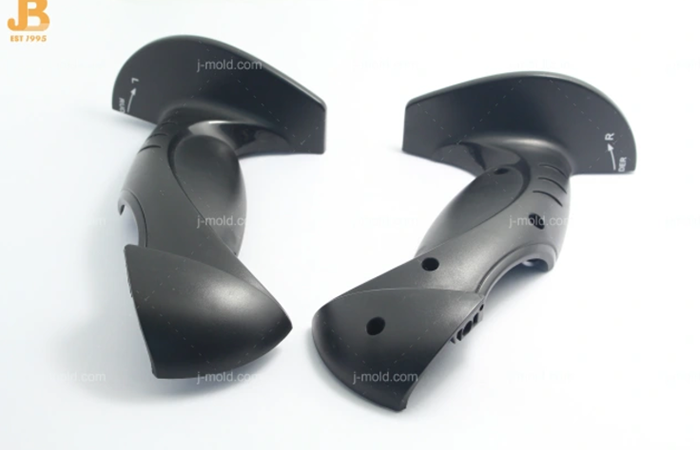

Tools and Equipment: Overmolded tools like screwdrivers and power tools benefit from the added comfort and non-slip grip provided by the overmolded material. This improves usability, reduces hand strain, and enhances overall performance.
Sports and Leisure Products: Overmolding can be found in sports equipment like golf club grips, bicycle handles, and sports footwear, where both durability and comfort are needed.
As demand for bespoke plastic parts continues to grow, the overmolding process offers manufacturers a flexible, cost-effective solution to meet complex product requirements. Its ability to combine multiple materials into a single part allows companies to create high-performance products with both functional and aesthetic benefits. At JBR, we specialize in the design and production of high-quality overmolded parts that meet the unique needs of our clients.
Interested in learning more about how overmolding can benefit your product development? Contact JBR today to discuss your project needs!
Q1: Can overmolding be used with all types of materials?
A1: Overmolding works best with materials that have good bonding properties, such as thermoplastic elastomers (TPE), rubber, and certain thermoplastics. However, it may not be suitable for materials that are difficult to bond.
Q2: How does overmolding improve the performance of a part?
A2: Overmolding allows manufacturers to combine hard and soft materials, improving the part's durability, comfort, grip, and overall functionality.
Q3: What industries benefit from overmolding?
A3: Overmolding is widely used in industries like consumer electronics, automotive, medical devices, tools and equipment, and sports and leisure products.
Q4: Is overmolding a cost-effective solution for mass production?
A4: Yes, overmolding is a cost-effective solution, especially for mass production, as it reduces the need for secondary assembly operations and minimizes material waste.
Q5: Can overmolding be used for high-precision applications?
A5: Yes, overmolding can be used for high-precision applications, but careful attention to material compatibility, mold design, and processing parameters is required to achieve the desired tolerances.
