What is Face Milling? A Comprehensive Guide to this Essential Machining Process

What is Face Milling?

Face milling is a cutting process that uses a rotary cutting tool, known as a face mill, to remove material from the surface of a workpiece. Unlike end milling, where the tool cuts along its axis, face milling primarily uses the cutting edges of the face mill's inserts to achieve a high-quality finish. The result is a flat, even surface, ideal for applications requiring tight tolerances and smooth finishes.

Key Components of Face Milling

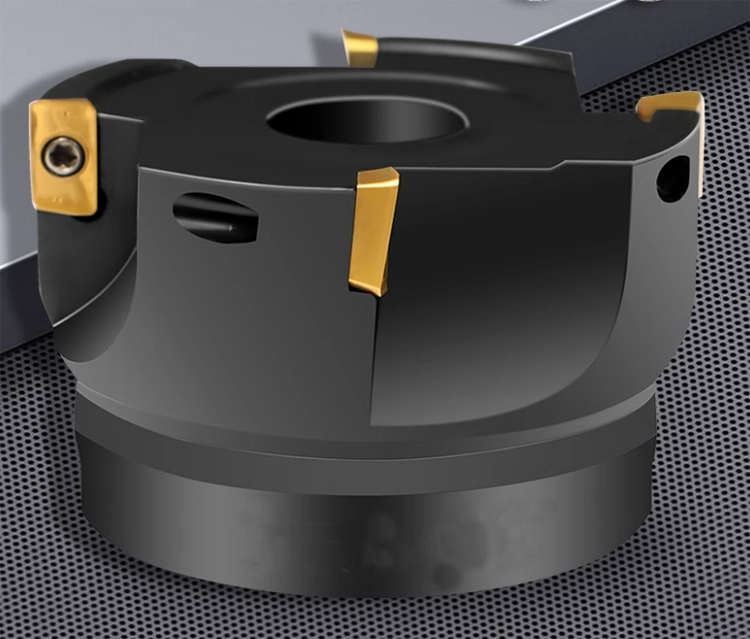

1. Face Mill Cutter

   • Face milling tools typically have multiple cutting edges or inserts attached to a rotating body.
   • As seen in the images above, face mills are designed for maximum cutting efficiency, allowing for large surface areas to be processed quickly.

2. Machine Tool (CNC Mill)

   • Face milling is performed using computer numerical control (CNC) machines or manual mills. CNC machines enable precise and repeatable movements, ensuring consistent results.

3. Workpiece

   • The material being machined can range from soft plastics to hard metals like steel or aluminum. Each material requires specific tools and settings for optimal performance.

How Does Face Milling Work?

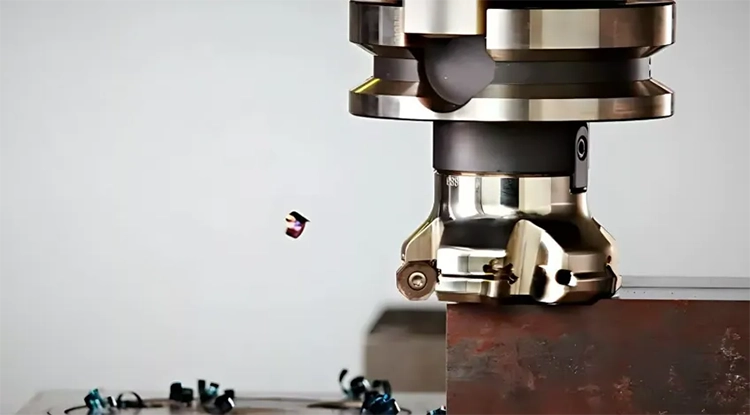

In face milling, the cutting tool rotates at high speeds while being fed across the workpiece. The inserts on the face mill remove material in small increments, producing a smooth, flat surface. The cutting action involves three key movements:

• Rotational Movement: The face mill spins on its axis.
• Feed Movement: The tool or workpiece moves laterally to cover the surface.
• Depth of Cut: The amount of material removed per pass is controlled by the tool’s depth settings.

Applications of Face Milling

1. Surface Finishing

   • Face milling ensures a high-quality finish for large flat surfaces, as required in molds, dies, and precision engineering parts.

2. Material Removal

   • It is used to remove excess material quickly, preparing the workpiece for subsequent machining processes.

3. Customization

   • With adjustable settings, face milling can be tailored to achieve varying surface textures, from rough cuts to mirror finishes.

Advantages of Face Milling

• High Efficiency: Covers a large surface area in a single pass.
• Versatility: Works with a wide range of materials.
• Precision: Produces smooth and accurate surfaces.
• Customizable: Depth, speed, and feed rates can be adjusted based on specific requirements.

Challenges and Solutions

• Tool Wear: Regular maintenance and replacement of inserts are necessary to maintain precision.
• Material Compatibility: Using the correct tool and settings for each material ensures optimal performance.
• Chatter and Vibration: Proper clamping of the workpiece and fine-tuning of cutting parameters minimize vibrations.

JBR: Your Trusted Partner for Precision Machining

At JBR, we specialize in providing bespoke plastic parts and are recognized as Plastic Fabrication Specialists. Our advanced CNC machining capabilities, including face milling, ensure that every component meets the highest standards of precision and quality. As a One-Stop Injection Plastic Parts Provider, we deliver comprehensive solutions tailored to your needs.

Conclusion

Face milling is an essential machining process that plays a critical role in industrial manufacturing. With its ability to produce smooth and accurate surfaces, it remains a cornerstone of modern machining techniques. Whether you’re working with metal or plastic, face milling provides the precision and efficiency required for high-quality results.

To learn more about how JBR’s machining expertise can elevate your production, contact us today!

FAQs About Face Milling

1. What materials can be face-milled?
Face milling is suitable for a wide range of materials, including metals like steel, aluminum, and titanium, as well as plastics and composites.

2. What is the difference between face milling and end milling?
Face milling primarily removes material using the cutting edges on the tool’s face, while end milling uses the tool’s axial cutting edges.

3. How is surface finish controlled in face milling?
Surface finish is controlled by adjusting cutting parameters like feed rate, depth of cut, and rotational speed.

4. Can face milling be used for curved surfaces?
No, face milling is typically used for flat surfaces. For curved surfaces, other machining processes like contour milling are more suitable.

5. What industries use face milling?
Face milling is widely used in aerospace, automotive, mold fabrication, and precision engineering industries.
