Product Overview

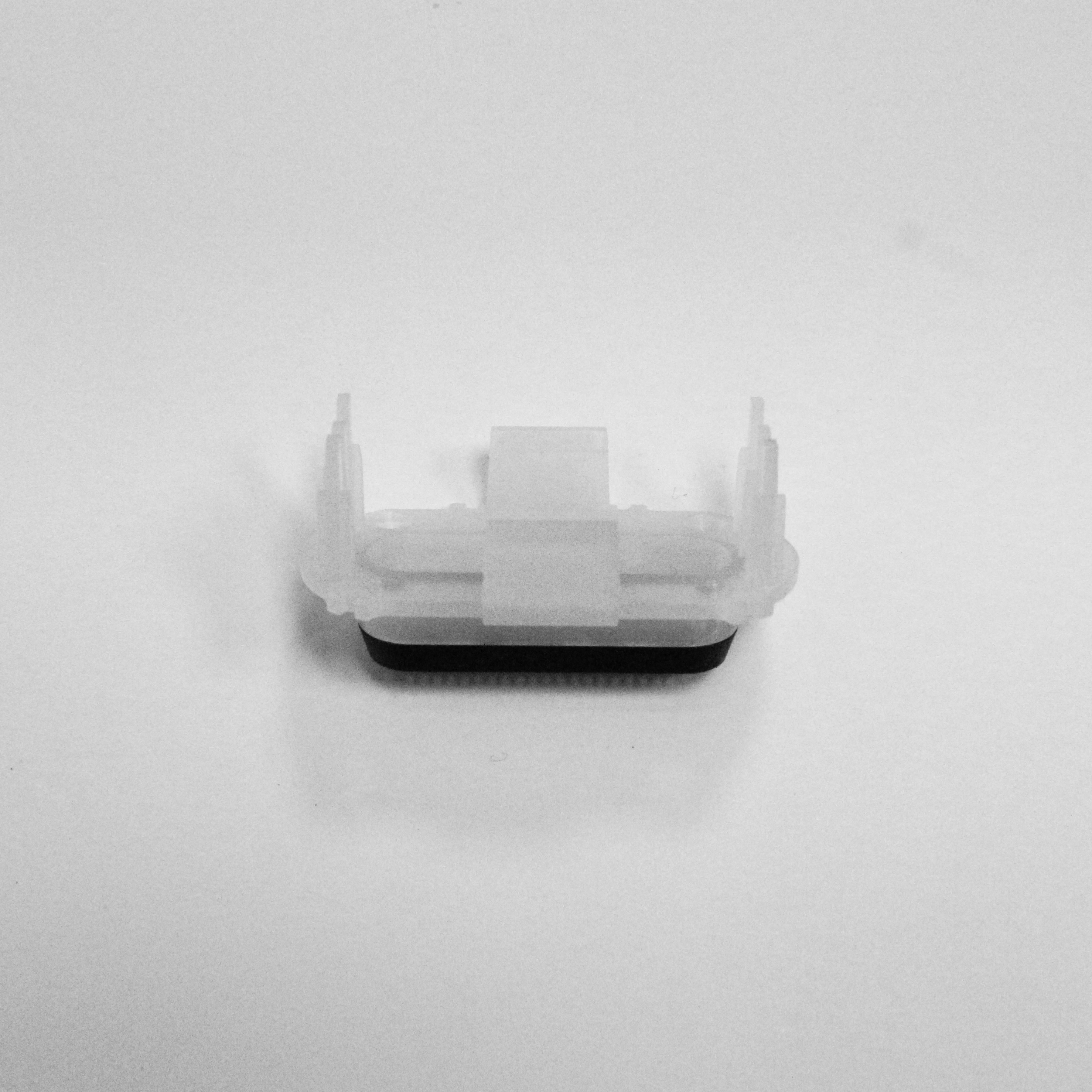

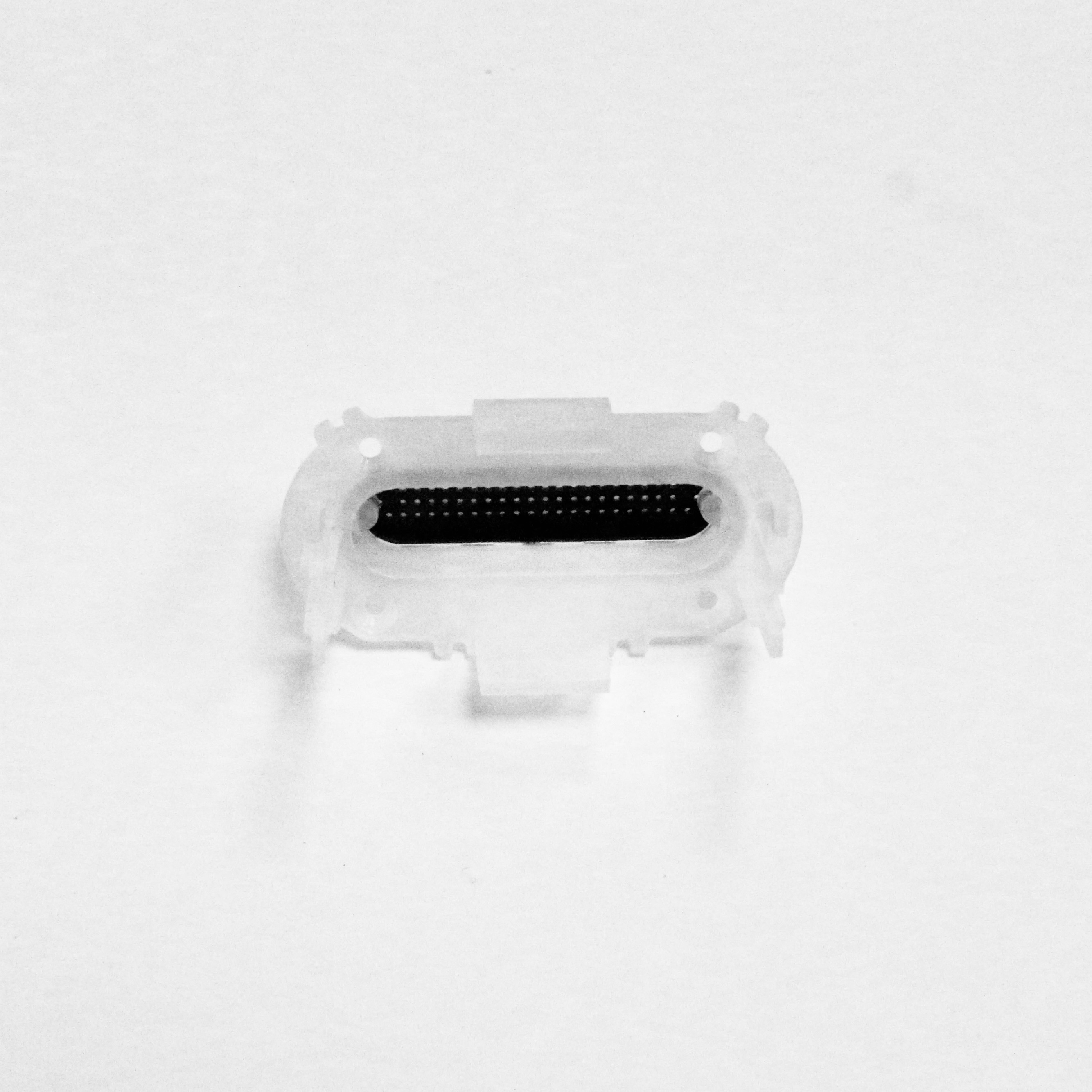

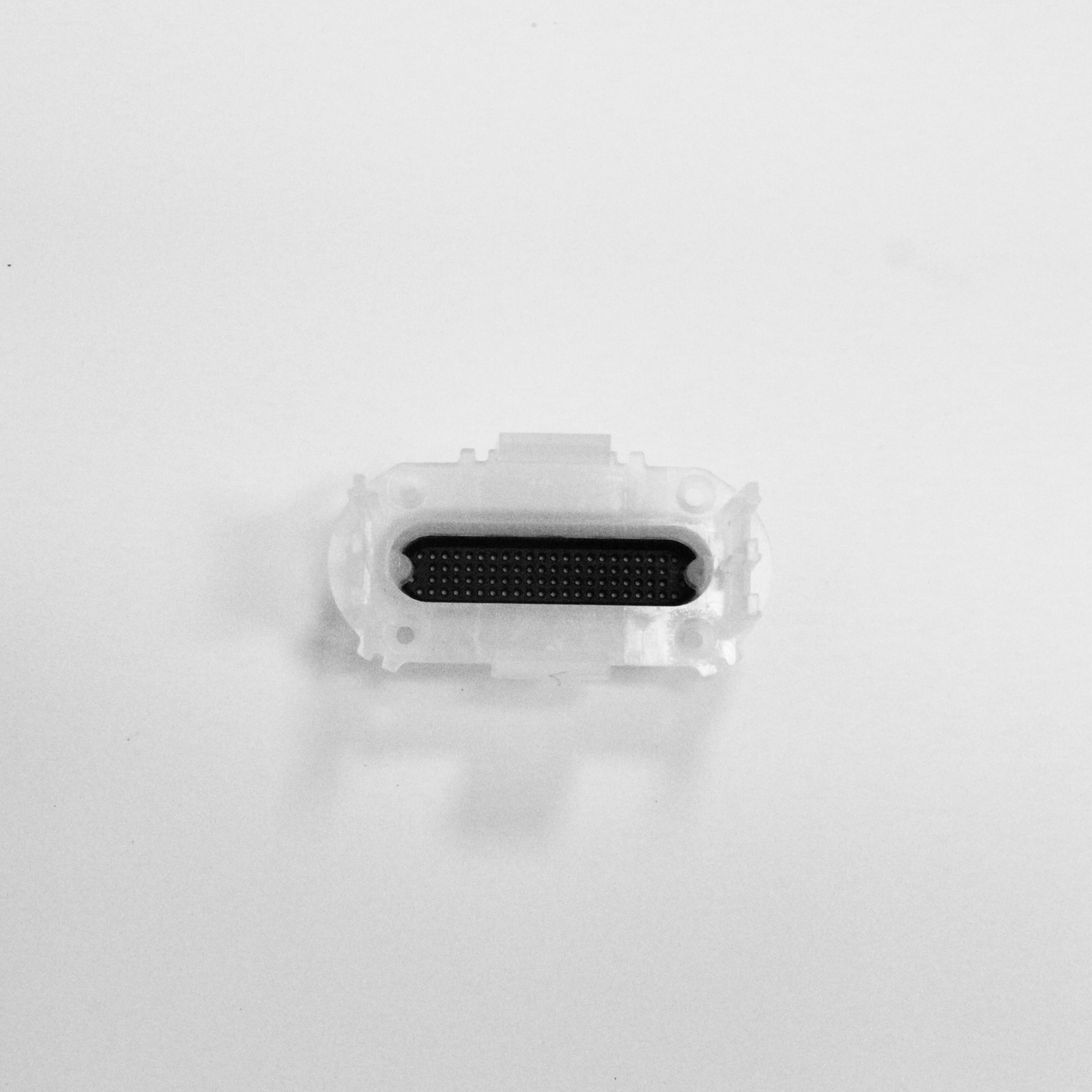

The OBD Injection Molding Part Light Pipe is a precision-engineered optical component designed to efficiently transmit and distribute light in automotive On-Board Diagnostics (OBD) systems. Utilizing advanced injection molding techniques, this light pipe ensures consistent luminosity and directional light guidance for critical indicators and interfaces.

Key Features & Material Specifications

• Material Composition: Fabricated from Polycarbonate (PC) infused with specialized diffusing powder. This combination delivers exceptional optical clarity, high-impact resistance, and thermal stability (operating range: -40°C to +120°C).
• ** Technology**: The integrated diffusing powder enables uniform light dispersion, eliminating hotspots and minimizing glare. This ensures optimal visibility under diverse lighting conditions.
• Precision Injection Molding: Manufactured to tolerances within ±0.05mm, guaranteeing seamless integration with OBD ports, dashboard panels, and indicator modules.
• Environmental Resilience: Resistant to automotive fluids, UV degradation, and vibrational stress, complying with ISO 16750-3 standards for automotive components.

Functional Advantages

1. Enhanced Signal Clarity: Directs light from LEDs to<5%), improving readability for diagnostic alerts.
2. Energy Efficiency: Reduces reliance on secondary lighting elements, lowering power consumption by up to 30% compared to conventional solutions.
3. Customizable Design: Supports complex geometries (e.g., curved or multi-branch paths) via mold flexibility, adaptable to OEM-specific OBD layouts.
4. Longevity: PC material ensures >100,000-hour operational lifespan without chromatic deviation or brittleness.

Target Applications

• OBD-II connector status indicators
• Instrument cluster back
• Infotainment system controls
• Warning/alert illumination in electric vehicles (EVs) and ICE vehicles

Compliance & Quality Assurance

• Certifications: RoHS 3, REACH, and IATF 16949:2016 compliant.
• Validation: Undergoes rigorous photometric testing (luminance uniformity ≥90%) and mechanical stress simulations.

This component optimizes visibility and reliability in next-generation automotive diagnostics, merging optical excellence with uncompromising durability.
