Product Case Study | ABS Injection Molded Plastic Component
Product Overview

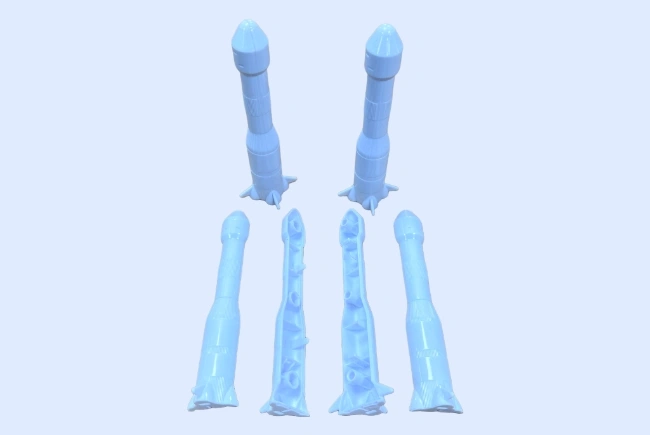

This product is a custom ABS injection molded plastic component manufactured for a JBRplas customer. JBRplas provided full-service mold manufacturing and injection molding, from design evaluation to mass production.
The part features a long, slender geometry with multiple surface transitions and internal structures, requiring precise mold design, stable molding parameters, and excellent process control to ensure dimensional accuracy and surface quality.
Material: ABS (Acrylonitrile Butadiene Styrene)
ABS was selected based on the customer’s functional and performance requirements, offering:
Good mechanical strength and impact resistance
Excellent dimensional stability
Smooth surface suitable for secondary finishing
Reliable performance for functional and structural plastic parts
JBRplas optimized molding parameters to ensure uniform filling, minimal internal stress, and consistent part quality.
Mold Design & Manufacturing
JBRplas independently designed and manufactured the injection mold for this product, focusing on:
Optimized parting line design for complex geometry
Balanced runner and gate system to ensure uniform melt flow
Effective venting design to prevent air traps and burn marks
Precision-machined cavities to achieve consistent wall thickness
Mold structure designed for stable long-term production
The mold was validated through trial runs to ensure stable cycle time and repeatable part quality.
Injection Molding Process
During production, JBRplas applied strict process control, including:
Controlled melt temperature and injection speed
Optimized packing and cooling to prevent deformation
Stable ejection design to avoid part damage
Continuous dimensional and visual inspection
The final parts show good surface finish, accurate dimensions, and consistent appearance.
Applications
This type of ABS molded component is suitable for:
