Injection molding complex plastic parts often comes with its own set of challenges—especially when dealing with multi-material components like right/left (R/L) rubber-overmolded parts. One of the most common and frustrating defects reported in these applications is a bright, glossy line running along what appears to be a weld line. The root cause? Gas entrapment due to poor mold venting. This article breaks down why this “gas trap weld line” occurs and provides robust, practical solutions to eliminate it, helping you produce high-quality, defect-free parts.

What Does the Defect Look Like?

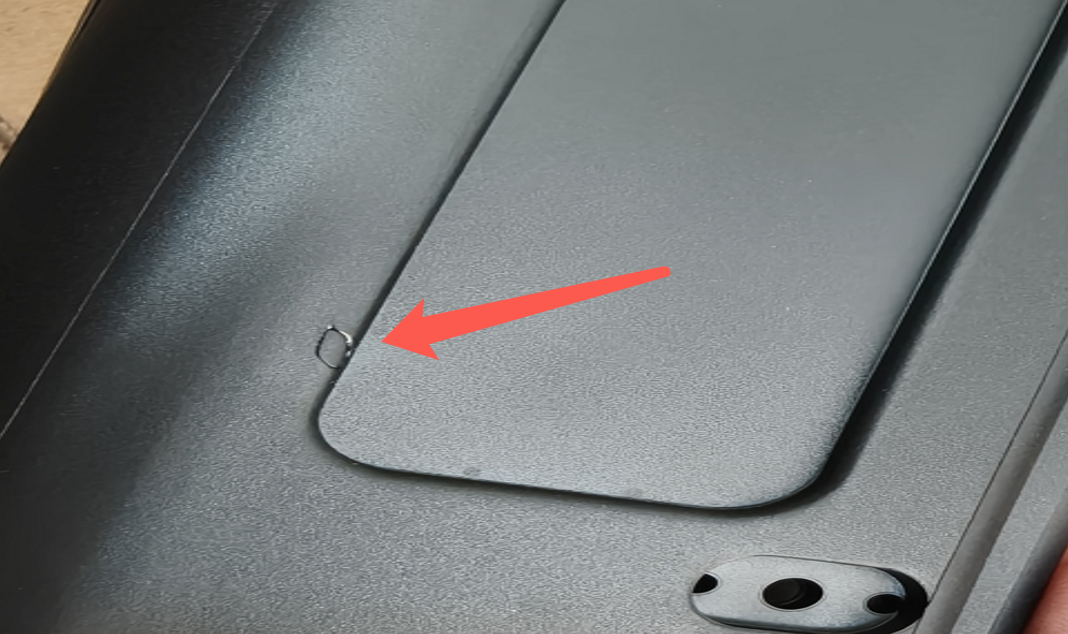

On R/L rubber-plastic parts (for example, soft-touch grips, seals or automotive interior left/right trims), you may notice a distinct shiny streak or bright line at the melt convergence area. This defect is often mistaken for a standard weld line or a splay mark. However, the high gloss and localized nature point toward trapped gas being compressed and superheated at the flow front, which scorches or smooths the surface locally, leaving a bright linear witness mark—what many molders call a “gas trap shiny weld line”.

Why Does It Happen? – Mold Venting is the Culprit

During the injection phase, air, volatile residues from the material, and gases generated by the melt must be evacuated through the mold’s parting line, ejector pins, and dedicated vent channels. When mold venting is insufficient or poorly designed, gas becomes trapped in the cavity, particularly in deep ribs, near the end of fill, or at weld line intersections. The trapped gas is then extremely compressed, generating high temperatures that can degrade the surface and produce that characteristic bright line. In R/L rubber (TPE/TPV) overmolding, the soft material’s viscosity and the often intricate part geometry make venting even more critical.

Proven Solutions to Eliminate Gas Trap Weld Lines

1. Optimize the Mold Design for Superior Venting

Mold optimization is the most effective long-term fix. Consider these mold modifications:

Increase venting depth and width at the parting line: For rubber-like materials, vents should typically be deeper (often 0.02–0.05 mm for TPEs, depending on viscosity) but still prevent flash. Ensure vents are placed right at the last fill point and in areas where weld lines form.
Add vent inserts or porous steel: In regions where conventional venting is impossible, use sintered metal inserts or porous steel to allow gas escape without leaving burrs.
Improve runner and gate location: Reposition gates to alter the flow path, move the weld line to a well-vented area, or break up a single large weld line into multiple smaller ones, reducing gas concentration.
Use vacuum-assisted venting: For extremely problematic parts, a vacuum pump can actively remove air from the cavity before injection starts.

2. Adjust Injection Molding Parameters

Even without immediate mold modifications, you can reduce gas trap weld lines by fine-tuning the process:

Lower injection speed, especially at the end of fill: Slower fill rates give trapped air more time to escape through existing vents. Implement multi-stage injection – start with a high speed to fill the runner and then drop the speed dramatically as the flow front approaches the gas-prone area.
Optimize melt and mold temperature: Slightly increasing mold temperature can reduce the viscosity of the melt, allowing gas bubbles to escape more easily. However, be careful not to degrade the rubber material.
Switch-over position and packing: Properly set the V/P switch-over to avoid over-packing gas and intensifying the mark. A short, gentle packing phase can help.
Material drying: Ensure the rubber compound or substrate material is properly dried; moisture turns into steam, worsening gas entrapment.

Combining Mold Optimization & Process Control

The best results come from a holistic approach. Start by mapping where the weld line and gas trap are located using short-shot analysis. Then apply targeted venting improvements and validate them with optimized low-speed injection. At JBRplas, we have repeatedly solved bright weld line issues on R/L rubber parts by integrating these two steps, resulting in a smooth, uniform surface that meets strict cosmetic requirements.

Why This Matters for Your Bottom Line

Gas trap weld lines are more than a cosmetic concern. They can indicate internal voids, reduce mechanical strength at the knit line, and lead to high scrap rates. For R/L safety-critical parts or visible automotive grades, these defects are simply unacceptable. Eliminating them improves yield, lowers production cost, and boosts customer confidence in your product’s quality.
