When you find defects in molded parts, many people's first reaction is "The mold is bad!"
But in reality, many issues are caused by process parameters or materials. If you can't tell the difference, you'll waste money — adjusting the process might fix it, but you end up modifying the mold instead.
Mold problem : Requires design or manufacturing changes to fix. Examples: wrong gate location, poor venting, uneven cooling.
Process problem : Can be fixed by adjusting parameters like temperature, pressure, speed, or time. Examples: insufficient packing pressure, too fast injection, low mold temperature.
Simple rule: Mold problems are "born with it." Process problems are "adjustable."
| Defect | Try This First | Whose Problem? |
|---|---|---|
| Sink marks | Increase packing pressure | Process if improves; otherwise check wall thickness |
| Flash | Check parting line | Mold if worn; otherwise adjust clamp force |
| Short shot | Raise pressure/temperature | Process if improves; otherwise check gate |
| Flow marks | Slow injection, raise mold temp | Mostly process |
| Weld lines | Raise mold temperature | Process if improves; otherwise modify gate |
| Black specks | Purge barrel, change material | Process if gone; otherwise check mold死角 |
| Warpage | Measure mold temperature | Mold if uneven; otherwise adjust packing |
| Ejector marks | Slow ejector speed | Process if improves; otherwise fix ejector pins |

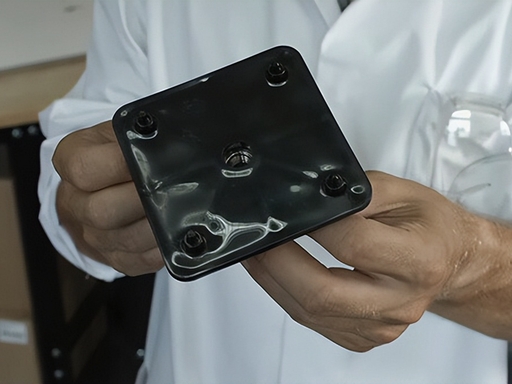

Case 1: Sink Marks
The customer insisted on modifying the mold. But after increasing packing pressure, sink marks visibly improved. Analysis showed uneven wall thickness — process could reduce but not eliminate the marks. The customer accepted the slight remaining marks and saved $4,000 in mold modification costs.
Case 2: Flash
The customer wanted to switch to a larger injection molding machine. Inspection revealed a worn depression on the parting line — red dye test showed uneven contact. Conclusion: Mold wear. Welding repair solved it. No machine change needed.

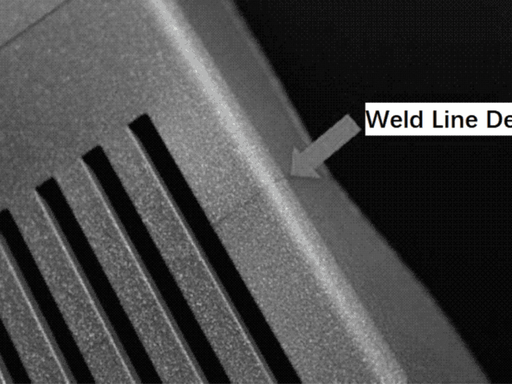

Case 3: Weld Lines
The customer requested moving the gate location. First, we raised mold temperature from 60°C to 90°C — weld lines faded by 80%. The customer accepted the remaining faint line. Saved two weeks of lead time and modification costs.
One principle: Adjust process first, then consider mold modifications.
Process adjustments cost nothing and take little time. Spend half a day trying different temperatures, pressures, and speeds — many issues can be solved within the process window. Mold modifications cost money and take time, so only do them when you're sure it's a mold problem.
Decision flow:
Process fully solves it → Process problem, no mold modification needed
Process improves but doesn't eliminate → Evaluate if modification is worth it
Process does nothing → Likely a mold problem
Next time you see a defect, don't jump to conclusions. Try adjusting parameters first — you might save thousands.
