7 Special Injection Molding Processes You Must Know

1. Gas-Assisted Injection Molding: Reducing Weight and Improving Material Flow

Gas-assisted injection molding uses high-pressure gas (usually nitrogen) to partially replace the plastic inside the mold cavity. This technique creates internal cavities within the part, reducing weight and material usage.

• Key Advantages:
  • Reduced material usage, lowering production costs.
  • Improved material distribution, ensuring uniform wall thickness.
  • Better surface quality, reducing warping and sink marks.

Applications: Widely used in automotive parts, consumer electronics, and lightweight products.

2. Overmolding: Combining Different Materials for Multi-functional Parts

Overmolding is the process of injecting a second material onto a pre-molded substrate. This technique allows manufacturers to combine two different materials into a single part, achieving higher functionality or aesthetic appeal.

• Key Advantages:
  • Improved ergonomic design: Combining hard and soft materials, such as overmolding rubber onto plastic for a more comfortable grip.
  • No additional assembly required: The two materials are integrated in a single molding process, eliminating the need for additional parts and assembly.

Applications: Common in medical devices, consumer electronics, automotive parts, and tool handles.

3. Two-Shot Injection Molding: Precise Material Pairing in One Cycle

Two-shot injection molding allows two different materials to be injected into the same mold in phases. This process enables manufacturers to create parts with varying material properties, such as combining hard and soft components.

• Key Advantages:
  • Efficient material pairing: Precisely combining materials like rigid plastics with soft-touch surfaces.
  • Reduced post-processing: The part is completed in a single molding cycle, eliminating the need for additional assembly or bonding.

Applications: Common in automotive components, consumer electronics, and products requiring multiple material features.

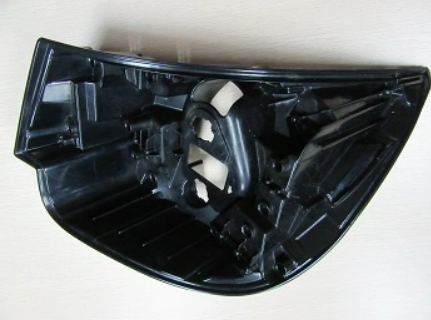

AUTOMOBILE LIGHT PLASTIC PART produced by JBR

4. Injection Compression Molding: Enhanced Surface Quality

Injection compression molding involves injecting molten plastic into a mold, followed by compressing it to achieve the desired shape. This technology improves material flow and surface quality compared to traditional injection molding.

• Key Advantages:
  • Improved surface quality: Reduces defects like air bubbles and sink marks.
  • Efficient material use: Minimizes waste and material consumption.

Applications: Often used in thin-wall parts, such as consumer electronics, automotive interiors, and medical devices.

5. Multi-color Injection Molding: Achieving Multi-functional Parts in One Cycle

Multi-color injection molding enables the injection of multiple colors of plastic into the same mold, creating multi-color parts. This process is highly suited for products that require aesthetic appeal and multi-functional features.

• Key Advantages:
  • Reduced assembly time: Multi-colored parts are completed in a single cycle, eliminating additional painting or color application.
  • Increased design flexibility: Allows designers to create complex color schemes for products.

Applications: Common in toys, consumer electronics, and automotive components requiring multiple color designs.

6. Liquid Silicone Rubber (LSR) Injection Molding: Flexible and Durable Parts

Liquid Silicone Rubber (LSR) injection molding uses liquid silicone to produce highly elastic, durable, and biocompatible parts. LSR is particularly suitable for applications that require flexibility, high thermal stability, and safety, such as medical devices and seals.

• Key Advantages:
  • High flexibility and durability: Ideal for parts that need to stretch or withstand high temperatures.
  • Biocompatibility: Safe for medical and food-contact applications.

Applications: Common in medical devices, seals, gaskets, and baby care products.

7. Thin-Wall Injection Molding: Lightweight, High-Strength Parts

Thin-wall injection molding focuses on producing parts with wall thicknesses of less than 1mm while maintaining strength and functionality. This process is essential for lightweight, durable parts.

• Key Advantages:
  • Faster production speed: Thin-walled parts cool and solidify faster, improving overall efficiency.
  • Reduced material consumption: Minimizes the amount of plastic used, making the process more cost-effective.

Applications: Common in packaging, consumer electronics, medical devices, and automotive industries.

Conclusion: The Future of Injection Molding Technology

Advanced injection molding techniques such as gas-assisted molding, overmolding, and two-shot injection molding provide manufacturers with greater precision, material diversity, and cost savings. These innovations enable the production of complex, high-quality parts more quickly, which is critical for industries such as automotive, consumer electronics, and medical devices. As these specialized injection molding technologies continue to evolve, manufacturers who adopt them will be well-positioned to bring more innovative and high-performance products to the market.



FAQ Section

1. What is injection molding?

Injection molding is a manufacturing process where molten plastic or metal is injected into a mold cavity to create various parts. This process is widely used for producing high-precision, high-volume components in industries such as automotive, consumer electronics, and medical devices.

2. What are the main types of injection molding processes?

The main types of injection molding processes include:

• Standard Injection Molding
• Gas-Assisted Injection Molding
• Insert Molding
• Overmolding
• Multi-Shot Molding
• Hot Runner Molding
• Stack Molding

Each process serves different manufacturing needs based on part complexity, material requirements, and design features.

3. What is gas-assisted injection molding?

Gas-assisted injection molding uses pressurized gas (usually nitrogen) to replace the plastic in certain parts of the mold cavity. This process reduces material usage, lowers part weight, and enhances the mechanical properties of the final part.

4. How does multi-shot injection molding work?

Multi-shot injection molding involves injecting different materials or colors into the mold in multiple stages. This technique is used to create parts with complex geometries, multiple materials, or aesthetic features, such as soft-touch grips on electronics or automotive parts.

5. Why is precision important in injection molding?

Precision is essential in injection molding to ensure that parts meet strict quality standards in both functionality and appearance. High-precision molds and consistent process control are crucial to ensure dimensional accuracy, a perfect fit, and smooth finishes—especially in industries like automotive and medical.

6. Can injection molding be used for creating prototypes?

Yes, injection molding can be used for prototyping, though it tends to be more expensive than methods like 3D printing. However, injection molding offers high-quality, durable prototypes that closely mimic the final product’s material properties and finish.

7. What industries benefit most from special injection molding techniques?

Special injection molding techniques are most beneficial in industries that require high precision, complex designs, and custom materials, such as:

• Automotive (e.g., bumpers, dashboards, light covers)
• Consumer Electronics (e.g., smartphone casings, components)
• Medical (e.g., surgical instruments, diagnostic devices)
