Drag marks occur when a molded part sticks to the cavity wall or core during ejection, causing friction and surface damage. This issue is more common in parts with complex designs or insufficient draft angles. Several factors contribute to the development of drag marks:
To ensure smooth and defect-free molded parts, it's essential to address the root causes of drag marks. Below are practical and effective solutions that can help prevent and reduce the occurrence of drag marks during the molding process.
A well-designed mold is crucial to preventing drag marks. By making certain adjustments, mold designers can significantly reduce friction during ejection and improve the overall part quality.
Increase Draft Angles: One of the simplest yet most effective measures is to ensure adequate draft angles on vertical walls. A draft angle of 1-2 degrees is usually recommended, but parts with complex geometries may require more. Proper tapering allows the part to release smoothly without sticking to the cavity.

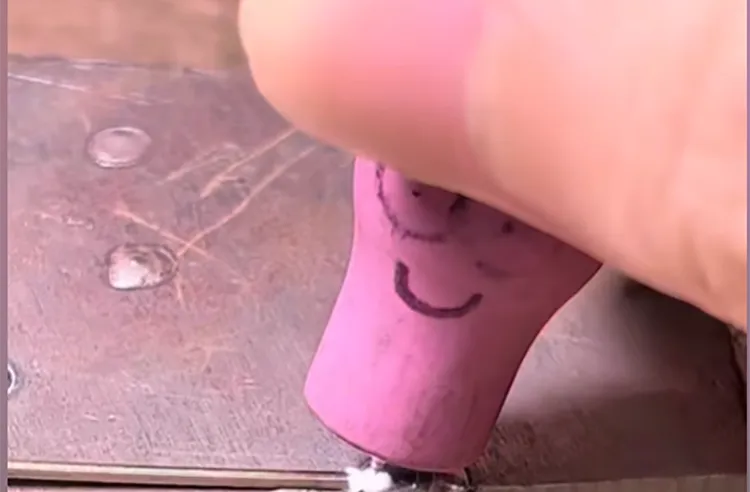

Polish Mold Surfaces: A polished mold surface reduces friction during ejection, making it easier for the part to release. Regularly maintaining the mold surface will help minimize wear and tear and maintain smooth ejection over time.
An efficient ejection system is essential for reducing drag marks. By focusing on proper placement and system design, manufacturers can minimize part damage during ejection.
Proper Ejector Pin Placement: Strategically place ejector pins to evenly distribute the ejection force. This helps ensure that the part is ejected uniformly without creating undue stress on specific areas, reducing the chances of drag marks.
Add Ejector Sleeves: Ejector sleeves are useful for supporting critical areas of the part during ejection, particularly when handling delicate features. They help minimize direct contact with the mold, thus reducing the risk of drag marks.
Consider Air Ejectors: Air ejectors can be used as an alternative or complement to mechanical ejector pins. They offer a gentler approach to ejection by using compressed air to push the part out of the mold, reducing the likelihood of friction and surface damage.
The material chosen for molding plays a significant role in preventing drag marks. Certain materials are more prone to sticking to the mold, while others have better release properties.
Use Low-Friction Materials: Selecting materials with inherent low-friction properties can help reduce the adhesion between the part and the mold. Materials that naturally have better mold release characteristics, or adding mold release agents to the resin, can significantly reduce drag marks.
Optimize Material Flow: Proper material flow during the injection phase is crucial. Ensuring that the resin flows evenly throughout the mold cavity helps reduce stress during cooling and ejection, minimizing the risk of drag marks.
Tuning the processing parameters is key to achieving optimal mold performance and preventing defects.
Reduce Cooling Time: Over-cooling the molded part can cause excessive shrinkage, making the part more prone to sticking to the mold. Adjusting the cooling time ensures the part is properly formed while preventing excessive adhesion.
Monitor Injection Pressure: High injection pressure can force material into the mold cavity too aggressively, creating a vacuum effect that increases adhesion during ejection. By adjusting the injection pressure, you can prevent excessive stress and reduce drag marks.
One of the simplest yet effective ways to prevent drag marks is to apply a mold release agent or coating. These substances reduce friction between the part and the mold, allowing for smoother ejection. Mold release agents also help preserve the finish of the molded part by protecting its surface from potential damage during ejection.
Drag marks are a common issue in the molding industry, but with the right approaches, they can be effectively prevented. By optimizing mold design, improving ejection systems, selecting the appropriate materials, adjusting processing parameters, and applying mold release coatings, manufacturers can significantly reduce the likelihood of drag marks and improve the overall quality of molded parts.
