What is Multi-Axis Machining?

Multi-axis machining refers to the process of using CNC (Computer Numerical Control) machines that can move cutting tools or the workpiece in multiple directions simultaneously. Unlike traditional three-axis machining, where the movement is limited to the X, Y, and Z axes, multi-axis machines add rotational axes, such as A, B, and C. This allows the tool to approach the workpiece from virtually any angle, enabling intricate designs and complex geometries.

How Multi-Axis Machining Works

1. Axes of Movement

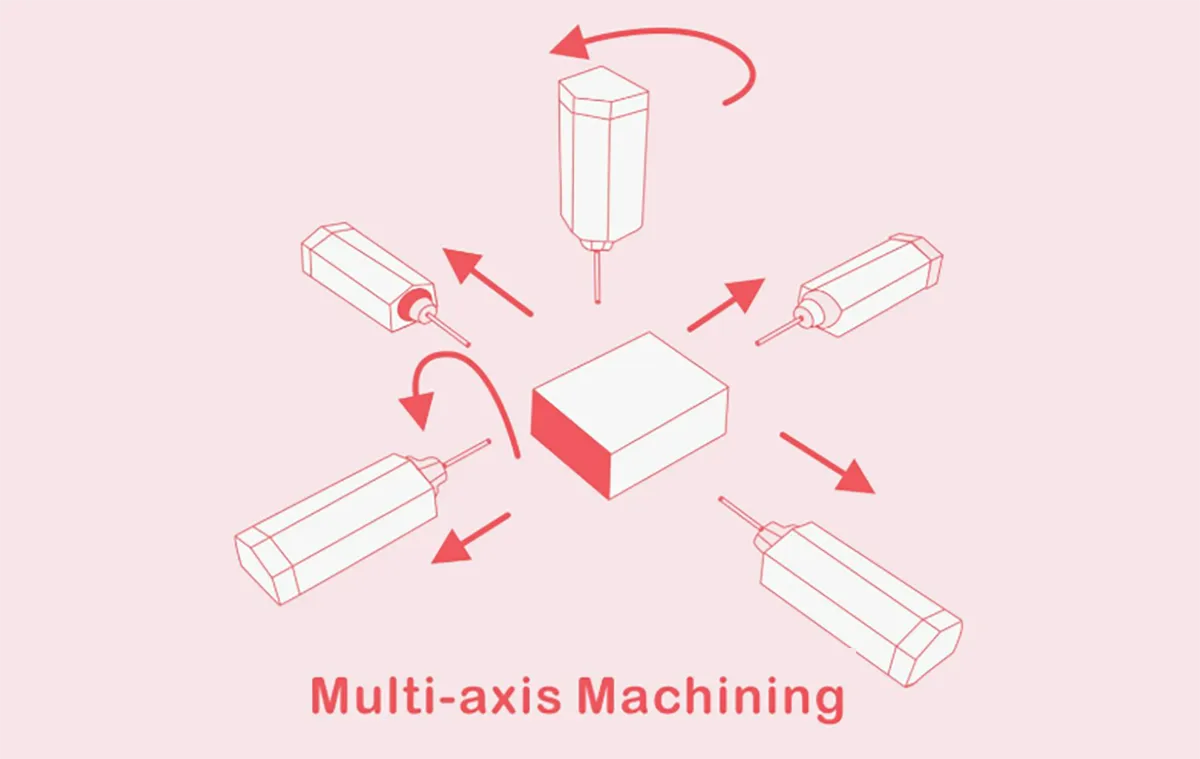

   As illustrated in the first image, multi-axis machining involves multiple degrees of freedom:

   • 3-axis: Linear movements in X, Y, and Z directions.
   • 4-axis: Adds rotation around one axis, typically the X-axis (A-axis).
   • 5-axis: Adds rotation around two axes, allowing full access to every surface of the workpiece.

2. Toolpath Programming

   • Advanced CAD/CAM software is used to design the part and generate the toolpaths required for machining.
   • These paths are translated into CNC codes that guide the machine's movements.

3. Precision and Synchronization

   • The machine's spindle and cutting tool move in perfect synchronization, allowing smooth transitions between cutting angles.

4. Continuous Machining

   • Multi-axis machines can perform complex operations like drilling, contouring, and finishing in a single setup, significantly reducing production time.

Applications of Multi-Axis Machining

1. Aerospace Components

   • Aircraft parts often feature complex geometries and tight tolerances that are ideal for 5-axis machining.

2. Automotive Prototyping

   • Multi-axis machines are used for precision prototyping of engine parts, molds, and more.

3. Medical Devices

   • The production of surgical tools and implants requires high precision, making multi-axis machining essential.

4. Industrial Equipment

   • Custom molds, turbines, and high-performance components are manufactured using this technique.

Advantages of Multi-Axis Machining

1. Complex Geometries

   • Create intricate shapes and surfaces that are impossible with traditional machining.

2. Improved Accuracy

   • Fewer setups reduce the risk of misalignment, resulting in higher precision.

3. Time and Cost Efficiency

   • Perform multiple operations in a single setup, reducing production time and labor costs.

4. Enhanced Surface Finish

   • Continuous tool movement minimizes tool marks, producing smoother finishes.

5. Material Flexibility

   • Suitable for machining metals, plastics, and composites with equal precision.

Challenges of Multi-Axis Machining

1. High Initial Investment

   • Multi-axis machines and software are costly, but they offer long-term value.

2. Complex Programming

   • Requires skilled operators and advanced CAM software for accurate toolpath creation.

3. Tool Wear and Maintenance

   • The increased complexity can lead to faster tool wear, demanding frequent monitoring.

Why Multi-Axis Machining Matters in Modern Manufacturing

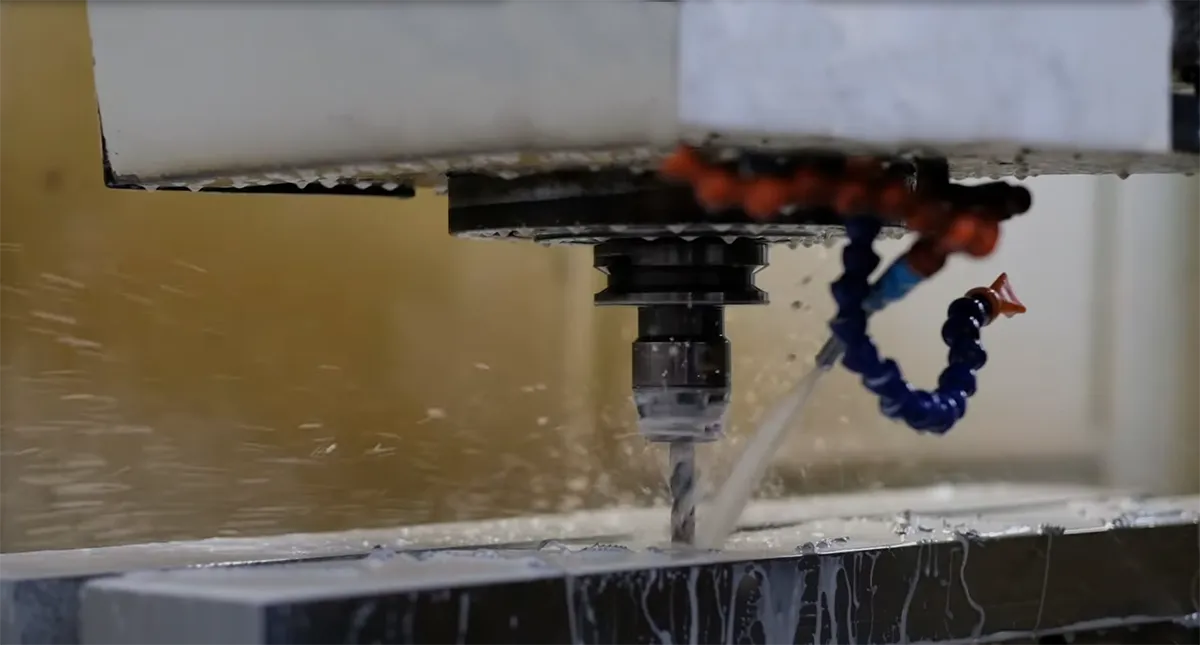

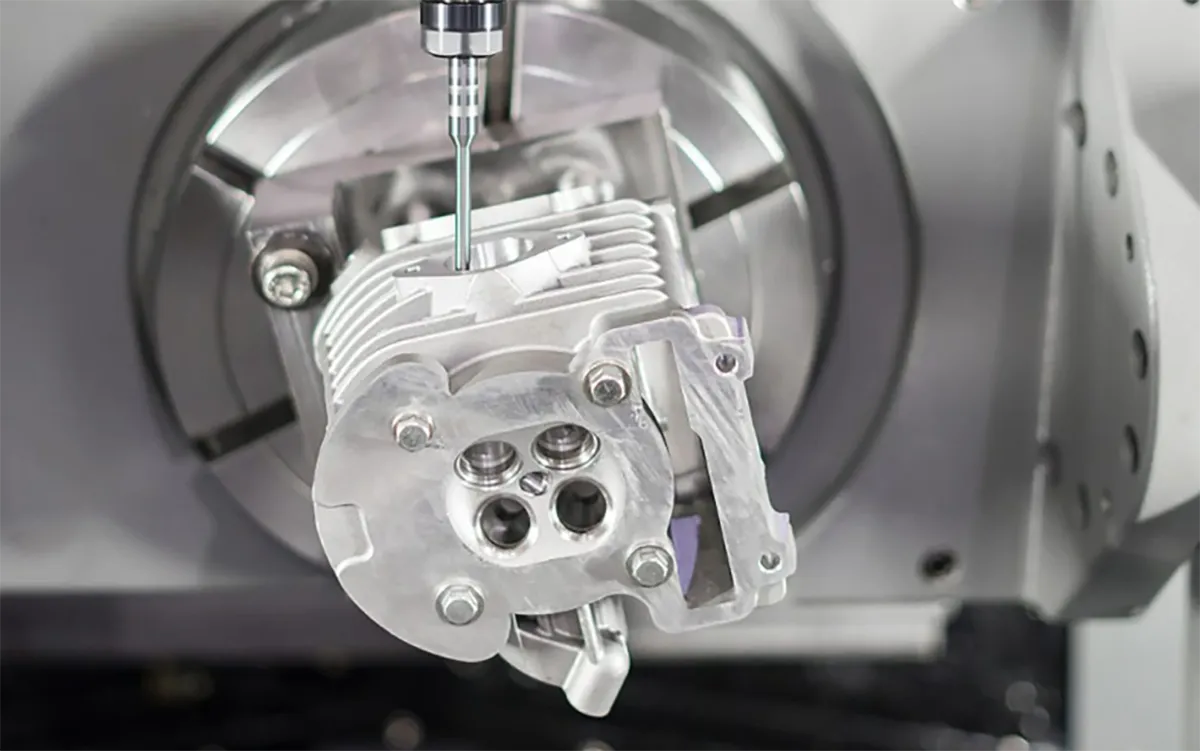

As shown in the second and third images, multi-axis machining allows manufacturers to produce intricate parts, such as cylinder heads and custom components, with minimal manual intervention. The fourth image highlights the rotational movements that ensure precision and versatility, making this technology indispensable for industries where quality and complexity matter most.
